SKU:

TM200CE32R

Controller M200 20I/12O relay Ethernet - 220V AC

Old price: $798.60 INC GST

Price: $758.67 INC GST

Qty:

Available for Shipping : 03-Aug-2025

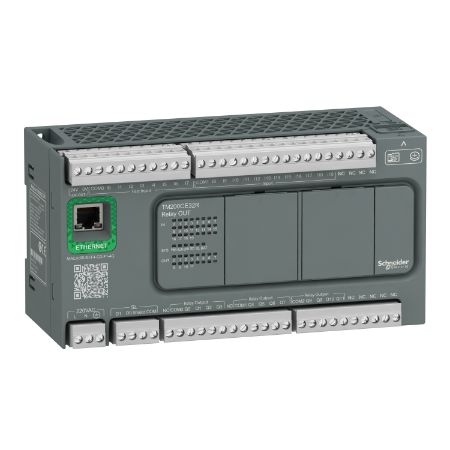

Controller M200 20I/12O relay Ethernet - 220V AC

Be the first to review this product

Manufacturer: Schneider Electric

Instruction sheet

Declaration of conformity

Catalog

User guide

Environmental Disclosure

Circularity Profile

Product Page Link

Product Data Sheet

This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 168 I/O, 2 axis motion control. This logic controller provides 20 sink source 24V DC inputs including 4 high-speed inputs, 4 fast inputs and 12 relay outputs. It is a Modicon logic controller with an input voltage of 24V DC, a discrete output voltage of 24V DC, 220V AC and an output current of 2A. Easy to maintain and update with its micro SD memory card. Integrated connections are mini B USB 2.0, non isolated serial link 1 and RS485, non isolated serial link 2 and RS232/RS485, and isolated serial link 2 and RS485. It is a controller with an internal flash of 512byte and a micro SD card capacity of 32GB. It is an IP20 rated product. Its dimensions are 175mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.468kg. Designed for textile, machine tool, packaging, material handling, pumping, hoisting, electronic assembly machines. This product is certified by CE, CSA, IACS E10, RCM and CULus. It meets EN/IEC 61010-2-201 and EN/IEC 61131-2 standards. It supports DIN rail mount. Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.

Products specifications

Attribute name	Attribute value
Main
[Us] rated supply voltage	100...240 V AC
Discrete output voltage	220 V AC, 24 V DC
Discrete output current	2 A for relay output
Discrete I/O number	32
Power consumption in VA	55-66 VA at 100...240 V AC (with max I/O)
Range of product	Easy Modicon M200
Discrete output type	relay normally open
Discrete input current	9 mA for high speed input, 7 mA for fast input, 7 mA for input
Discrete input number	I8...I19: 12 regular input, I0, I1, I6, I7: 4 high speed input, I2...I5: 4 fast input
Product or component type	logic controller
Discrete input voltage type	DC
Discrete input voltage	24 V
Discrete output number	12 relay
Discrete input logic	sink or source (positive/negative) type 1 conforming to IEC 61131-2
Complementary
Insulation	between input groups at 500 V AC, between fast input and internal logic at 500 V AC, between input and internal logic at 500 V AC, between supply and internal logic at 1780 V AC, between output groups at 1780 V AC, between output and internal logic at 1780 V AC, non-insulated between inputs
Data storage equipment	32 GB micro SD card (optional)
Minimum load	10 mA at 5 V DC for relay output
Execution time for 1 KInstruction	0.3 ms for event and periodic task
Control signal type	CW/CCW at 100 kHz for fast input (HSC mode), single phase at 100 kHz for fast input (HSC mode), pulse/direction at 100 kHz for fast input (HSC mode), quadrature (x1, x2, x4) at 100 kHz for fast input (HSC mode)
Electrical durability	100000 cycles DC-12, 24 V, 48 W, resistive, 100000 cycles AC-12, 240 V, 480 VA, resistive
Supply voltage limits	85-264 V
Memory capacity	512 byte internal flash for backup of programs
Configurable filtering time	12 ms for input, 3 ms for input, 0 ms for input
Voltage state 0 guaranteed	<= 5 V for input
Backup time	3 years at 25 °C (by interruption of power supply)
Marking	CE
Communication port protocol	non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network, USB port: USB - SoMachine-Network
Transmission rate	12 Mbit/s for USB, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3-3 m for RS232, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15-15 m for RS485
Maximum current per output common	4 A at COM 1, 4 A at COM 0, 4 A at COM 2
Height	90 mm
Maximum cable distance between devices	unshielded cable: <150 m for output, shielded cable: <10 m for high speed input, shielded cable: <10 m for fast input, unshielded cable: <50 m for input
Electrical connection	removable screw terminal block, 3 terminal(s) for connecting the 100-240 V AC power supply, removable screw terminal block, 4 terminal(s) for connecting the serial link1, removable screw terminal blockfor outputs, removable screw terminal blockfor inputs, mini B USB 2.0 connectorfor a programming terminal
Switching frequency	0.1 Hz with maximum load
Counting input number	4 fast input (HSC mode) at 100 kHz 32 bits
Depth	70 mm
Width	175 mm
Response time	55 µs turn-on, I14...I19 terminal(s) for regular input, 125 µs turn-off, I14...I19 terminal(s) for regular input, 35 µs turn-on, I8...I13 terminal(s) for regular input, 100 µs turn-off, I8...I13 terminal(s) for regular input, 35 µs turn-on, I2...I5 terminal(s) for fast input, 100 µs turn-off, I2...I5 terminal(s) for fast input, 5 µs turn-on, I0, I1, I6, I7 terminal(s) for high speed input, 5 µs turn-off, I0, I1, I6, I7 terminal(s) for high speed input, 10 ms turn-off, Q0...Q11 terminal(s) for output, 10 ms turn-on, Q0...Q11 terminal(s) for output
Local signalling	1 LED per channel (green) for I/O state, 1 LED (green) for SL1, 1 LED (red) for BAT, 1 LED (green) for SD card access (SD), 1 LED (red) for module error (ERR), 1 LED (green) for RUN, 1 LED (green) for PWR
Mounting support	top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Mechanical durability	20000000 cycles for relay output
Sensor power supply	24-24 V DC at 300 mA supplied by the controller
Execution time per instruction	0.2 µs Boolean
Integrated connection type	isolated serial link serial 2 with terminal block connector and RS485 interface , non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface , non isolated serial link serial 1 with terminal block connector and RS485 interface , USB port with mini B USB 2.0 connector
Voltage state 1 guaranteed	>= 15 V for input
Output voltage limits	250 V AC, 30 V DC
Net weight	0.504 kg
Maximum number of I/O expansion module	4 with 76 discrete output(s) for relay output
Regulation loop	adjustable PID regulator up to 14 simultaneous loops
Battery type	BR2032 Li-CFx (Lithium-Carbon Monofluoride), battery life: 5 year(s)
Clock drift	<= 90 s/month at 25-25 °C
Inrush current	50 A
Input impedance	3.3 kOhm for discrete input
Exct time for event task	60 µs response time
Network frequency	50/60 Hz
Environment
IP degree of protection	IP20 with protective cover in place
Relative humidity	10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation)
Ambient air temperature for storage	-25-70 °C
Electromagnetic compatibility	radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to IEC 55011, radiated emission - test level: 40 dBμV/m QP class A (10 m) conforming to IEC 55011, conducted emission - test level: 73 dBμV/m QP/60 dBμV/m AV (power lines (AC)) conforming to IEC 55011, conducted emission - test level: 79 dBμV/m QP/66 dBμV/m AV (power lines (AC)) conforming to IEC 55011, conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (AC)) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 0.5 kV (power lines (DC)) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (shielded cable) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 2 kV (power lines (AC)) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5, electrical fast transient/burst immunity test - test level: 1 kV (serial link) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4, magnetic field at power frequency - test level: 30 A/m conforming to IEC 61000-4-8, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2
Ambient air temperature for operation	0-55 °C (horizontal installation)
Pollution degree	<= 2
Immunity to microbreaks	10 ms
Operating altitude	0...2000 m
Vibration resistance	2 gn at 8.7-150 Hz on panel mounting, 3.5 mm at 5-8.7 Hz on panel mounting, 1 gn at 8.4-150 Hz on symmetrical rail, 3.5 mm at 5-8.4 Hz on symmetrical rail
Shock resistance	30 gn for 6 ms, 15 gn for 11 ms
Storage altitude	0-3000 m
Standards	IEC 61010-2-201, IEC 61131-2
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	9.5 cm
Package 1 Width	13.8 cm
Package 1 Length	18.5 cm
Package 1 Weight	749.0 g
Unit Type of Package 2	2
Number of Units in Package 2	12
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	9.4 kg
Unit Type of Package 3	3
Number of Units in Package 3	96
Package 3 Height	75.0 cm
Package 3 Width	80.0 cm
Package 3 Length	60.0 cm
Package 3 Weight	83.2 kg
