TMCR2AQ2V

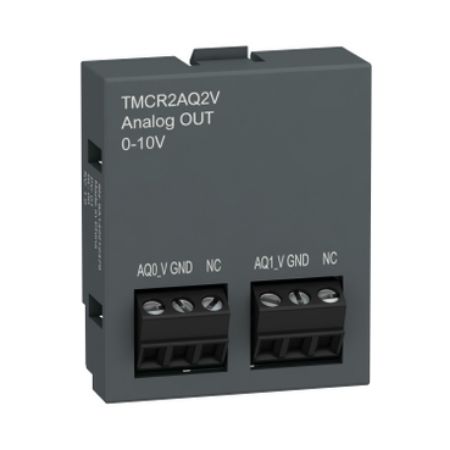

cartridge M200 - 2 analog voltage outputs

Old price: $173.36 INC GST
$164.69 INC GST
Available for Shipping : 24-Jul-2025
cartridge M200 - 2 analog voltage outputs
Manufacturer: Schneider Electric
This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 168 IO. This optional cartridge provides 2 additional analog outputs to M200 controllers. The 2 analog outputs are configured as as voltage 0V to 10V. This IO cartridge provides additional analog outputs (12bits resolution) to the controller. The data conversion time is 20ms. The outputs are wired with twisted shielded pairs cable on the screw terminal block of the cartridge. It is 41mm high, 15mm deep, and 35mm wide. It weighs 0.012kg. This optional cartridge provides 2 additional analog outputs to the controller. This product is marqued CE, and certified by IEC/EN 61131-2, UL 508, and IEC/EN 61010-2-201. This cartridge is an optional part of Modicon M200 logic controller. It installs in a specific slot on controller, when removing the cartridge cover. Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.

Products specifications

Attribute name Attribute value
Main
Product compatibility Easy Modicon M200
Product or component type analogue output cartridge
Range of product Easy Modicon M200
Complementary
Repeat accuracy +/- 0.4 %FS
Insulation non-insulated between analogue output and internal logic
Conversion time 20 ms
Depth 15 mm
Width 35 mm
Cross talk <= 1 LSB
Load impedance ohmic >= 2 kOhm
Analogue output number 2
Stabilisation time 40 ms
Temperature drift +/- 0.02 %FS/°C
Analogue output resolution 12 bits
Absolute accuracy error +/- 0.3 % of full scale at 25 °C, +/- 1 % of full scale
Type of cable twisted shielded pairs cable
Net weight 0.012 kg
LSB value 2.44 mV 0...10 V voltage
Non-linearity +/- 0.01 %FS
Analogue output type voltage: 0...10 V
Load type resistive
Height 41 mm
Maximum cable distance between devices twisted shielded pairs cable: <30 m for output
Electrical connection 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for outputs
Environment
Immunity to microbreaks 10 ms
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.6 cm
Package 1 Width 7.0 cm
Package 1 Length 3.5 cm
Package 1 Weight 20.0 g
Unit Type of Package 2 2
Number of Units in Package 2 75
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 3.07 kg
Unit Type of Package 3 3
Number of Units in Package 3 1200
Package 3 Height 75 cm
Package 3 Width 60 cm
Package 3 Length 80 cm
Package 3 Weight 106 kg
