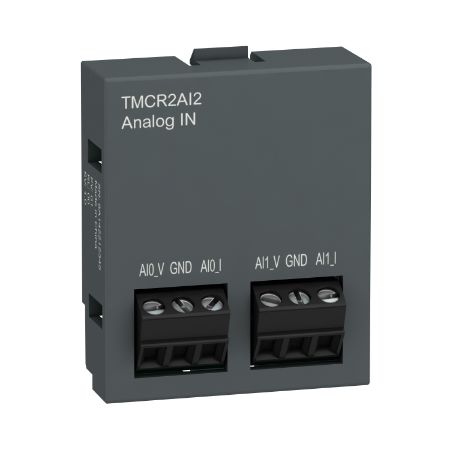

Picture of cartridge M200 - 2 analog current inputs
SKU:

TMCR2AI2

cartridge M200 - 2 analog current inputs

Old price: $173.36 INC GST
$164.69 INC GST
Available for Shipping : 24-Jul-2025
cartridge M200 - 2 analog current inputs
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
User guide
Declaration of conformity
Catalog
Circularity Profile
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Modicon Easy M200 range, an offer of logic controllers for up to 168 I/O, 2 axis motion control. This analogue input cartridge provides 2 inputs with 12bit input resolution. It is an analogue input cartridge with a signal current of 4mA to 20mA, 0mA to 20mA and a signal voltage of 0V to 10V. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is no insulation between analogue input and internal logic. It is furnished with screw terminal blocks for electrical connection with pitch 3.81mm adjustment for inputs. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.012kg. This product is compatible with Modicon Easy M200 logic controllers. Modicon Easy M200 controllers are entry-level products perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Modicon Easy M200 logic controllers, the best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.

Products specifications

Attribute name Attribute value
Main
Product compatibility Easy Modicon M200
Analogue input number 2
Product or component type analogue input cartridge
Range of product Easy Modicon M200
Complementary
Analogue input type voltage 0...10 V,  current 0...20 mA,  current 4...20 mA
Repeat accuracy +/- 0.5 %FS
Sampling duration 10 ms
Insulation non-insulated between analogue input and internal logic
Conversion time 20 ms
Depth 15 mm
Width 35 mm
Cross talk <= 1 LSB
Temperature drift +/- 0.02 %FS/°C
Absolute accuracy error +/- 1 % of full scale, +/- 0.1 % of full scale at 25 °C
Type of cable twisted shielded pairs cable
Net weight 0.012 kg
Analogue input resolution 12 bits
Permissible continuous overload 40 mA, analogue input type: current, 13 V, analogue input type: voltage
LSB value 3.91 µA 4...20 mAcurrent, 4.88 µA 0...20 mAcurrent, 2.44 mV 0...10 Vvoltage
Non-linearity +/- 0.01 %FS
Input impedance >= 1 MOhm voltage, <= 250 Ohm current
Height 41 mm
Maximum cable distance between devices twisted shielded pairs cable: <30 m for input
Electrical connection 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for inputs
Environment
Immunity to microbreaks 10 ms
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.589 cm
Package 1 Width 4.772 cm
Package 1 Length 7.056 cm
Package 1 Weight 30 g
Unit Type of Package 2 2
Number of Units in Package 2 75
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 2.815 kg
Unit Type of Package 3 3
Number of Units in Package 3 2400
Package 3 Height 100 cm
Package 3 Width 125 cm
Package 3 Length 55 cm
Package 3 Weight 85 kg
