Picture of cartridge M200 - 2 Analog inputs / 1 Analog output
SKU:

TMCR2AM3

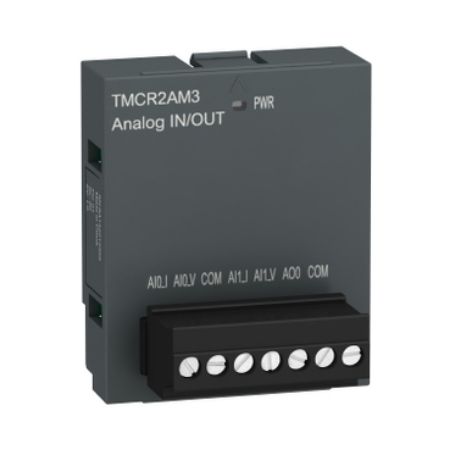

cartridge M200 - 2 Analog inputs / 1 Analog output

Old price: $314.60 INC GST
$298.87 INC GST
Available for Shipping : 24-Jul-2025
cartridge M200 - 2 Analog inputs / 1 Analog output
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
User guide
Declaration of conformity
Circularity Profile
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 168 IO. This optional cartridge provides 2 additional analog inputs and 1 analog output. The analog IOs can be configured as current 4mA to 20mA or 0mA to 20mA, or voltage 0V to 10V or 0V to 5V. This IO cartridge provides additional analog IOs (16bits resolution) to the controller. The data conversion time is 2ms, the sampling duration is 1ms. The IOs are wired with twisted shielded pairs cable on the screw terminal block of the cartridge. It is 41mm high, 15mm deep, and 35mm wide. It weighs 0.024kg. This optional cartridge provides 2 additional analog inputs and 1 analog ouput to the controller. This product is marqued CE, and certified by IEC/EN 61131-2, UL 508, and IEC/EN 61010-2-201. This cartridge is an optional part of Modicon M200 logic controller. It installs in a specific slot on controller, when removing the cartridge cover. Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.

Products specifications

Attribute name Attribute value
Main
Product compatibility Easy Modicon M200
Analogue input number 2
Product or component type analogue I/O cartridge
Range of product Easy Modicon M200
Complementary
Analogue input type voltage 0...5 V,  voltage 0...10 V,  current 0...20 mA,  current 4...20 mA
Sampling duration 1 ms
Insulation between output and internal logic
Conversion time 2 ms
Depth 15 mm
Width 35 mm
Cross talk 80 dB
Local signalling 1 LED (green) for PWR
Load impedance ohmic >= 2 kOhm, <= 500 Ohm
Analogue output number 1
Stabilisation time 40 ms
Analogue output resolution 16 bits
Absolute accuracy error +/- 1 % of full scale at 55 °C
Type of cable twisted shielded pairs cable
Net weight 0.024 kg
Analogue input resolution 16 bits
Permissible continuous overload 30 V, analogue input type: voltage, 40 mA, analogue input type: current
LSB value 1 mV 4...20 mAcurrent 0...10 V voltage, 1 mV 0...20 mAcurrent 0...5 V voltage, 2 µA 0...10 Vvoltage 0...20 mA current, 2 µA 0...5 Vvoltage 4...20 mA current
Analogue output type voltage: 0...5 V, current: 0...20 mA, voltage: 0...10 V, current: 4...20 mA
Load type resistive
Input impedance >= 1 MOhm voltage, <= 250 Ohm current
Height 41 mm
Maximum cable distance between devices twisted shielded pairs cable: <30 m for input/output
Electrical connection 7 x 1.5 mm² screw terminal block with pitch 3.5 mm adjustment for inputs and outputs
Environment
Marking CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5 cm
Package 1 Width 6.3 cm
Package 1 Length 8.9 cm
Package 1 Weight 46 g
Unit Type of Package 2 2
Number of Units in Package 2 32
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 1830 g
Unit Type of Package 3 3
Number of Units in Package 3 1536
Package 3 Height 95 cm
Package 3 Width 80 cm
Package 3 Length 120 cm
Package 3 Weight 96840 g
