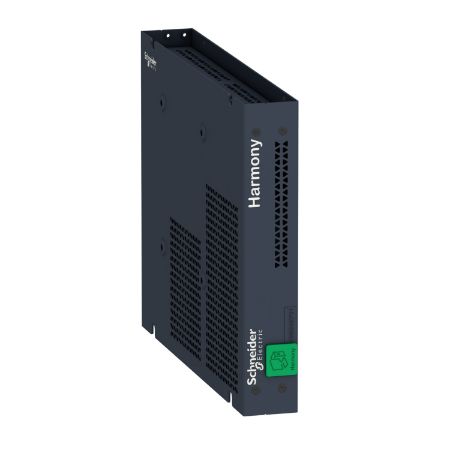

Picture of Harmony Modular iPC, Display adaptor DP for HMIDM
SKU:

HMIDADP11

Harmony Modular iPC, Display adaptor DP for HMIDM

Old price: $615.45 INC GST
$584.68 INC GST
Available for Shipping : 30-Nov-2025
Harmony Modular iPC, Display adaptor DP for HMIDM
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
User guide
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Accessory / separate part type adaptor
Product compatibility Harmony iPC industrial PCs
Accessory / separate part category adaptation accessory
Range of product Harmony Modular iPC
Complementary
Input voltage 100...240 V AC external adaptor, 24 V DC
Integrated connection type 1 USB (V2.0) port type B output touch screen signal, display port input video signal
Accessory / separate part destination Harmony modular display HMIDM
Net weight 2.4 kg, 1.8 kg, 0 kg
Inrush current 5.3 A
[Us] rated supply voltage 100...240 V AC external adaptor, 24 V DC
Power consumption in W 31.48 W (HMIDMA521 transmitter and receiver module), 26.53 W (HMIDM9521 transmitter and receiver module), 23.76 W (HMIDM7521 transmitter and receiver module), 21.25 W (HMIDM7421 transmitter and receiver module), 22.53 W (HMIDM6522 transmitter and receiver module), 24.51 W (HMIDM6422 transmitter and receiver module), 29.12 W (HMIDMA521 receiver module), 24 W (HMIDM9521 receiver module), 21.29 W (HMIDM7521 receiver module), 19.05 W (HMIDM7421 receiver module), 20.02 W (HMIDM6522 receiver module), 22.05 W (HMIDM6422 receiver module), 23.33 W (HMIDMA521), 17.57 W (HMIDM9521), 14.68 W (HMIDM7521), 12.42 W (HMIDM7421), 13.97 W (HMIDM6522), 15.77 W (HMIDM6422)
Environment
Operating altitude 2000 m
Relative humidity 10-95 % non-condensing
Ambient air temperature for storage -30-70 °C
Pollution degree 2
Ambient air temperature for operation 0-55 °C
Product certifications cULus HazLoc Class I Division 2 CSA 22-2 No 213, cULus, CE, ATEX, EAC, cULus CSA 22-2 No 142, CCC, cULus HazLoc Class I Division 2 ANSI/ISA 12-12-01, RCM, IEC Ex hazardous locations 3GD zone 2/22
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.0 cm
Package 1 Width 23.5 cm
Package 1 Length 37.5 cm
Package 1 Weight 2.2 kg
Unit Type of Package 2 2
Number of Units in Package 2 3
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 6.6 kg
Unit Type of Package 3 3
Number of Units in Package 3 36
Package 3 Height 80 cm
Package 3 Width 105 cm
Package 3 Length 125 cm
Package 3 Weight 104.2 kg
