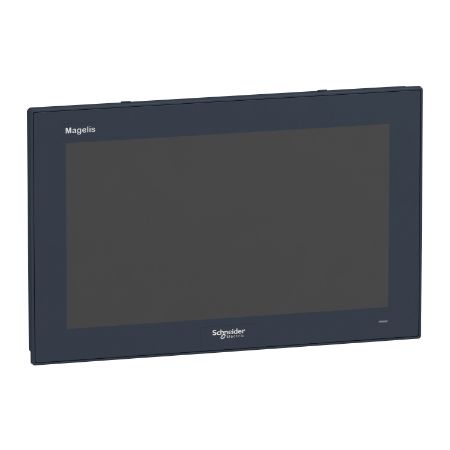

Picture of flat screen, Harmony iPC, 15inch wide display, multi touch, for modular box pc
SKU:

HMIDM7521

flat screen, Harmony iPC, 15inch wide display, multi touch, for modular box pc

Old price: $2,395.80 INC GST
$2,276.01 INC GST
Available for Shipping : 17-Dec-2025
Product Selector
flat screen, Harmony iPC, 15inch wide display, multi touch, for modular box pc
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
User guide
Catalog
Declaration of conformity
Circularity Profile
CAD
Product Page Link
Product Data Sheet
The touch screen display features 15.6inch color TFT LCD display, supports 1366 x 768 pixels WHD FWXGA resolution. It offers horizontal and vertical viewing angle of 150° x 140° and 500 is to 1 contrast ratio. The touch screen display is designed with multi-touch projected capacitive technology (PCT). This touch panel screen has 16 million colors with 50,000 hours of backlight lifespan. It is an IP66 and NEMA 4X rated product. Its dimensions are 419.7mm (width) x 28mm (depth) x 269mm (height). It weighs 4.3kg. It is suitable for digital plants and infrastructure operations, performance and repetitive machine applications. This product is certified by IEC-Ex, C-Tick, EAC, Marine GL Bridge, ATEX and CE. It meets CSA C22.2 No 142, UL 6110-2-201 and Class I div. 2 ANSI/ISA 12-12-01 standards. This modular display is compatible with HMIBM Box PC and HMIDAD Display Adapter. It supports flush mount for indoor installation. Harmony iPC and edge box provide solutions to IIoT and automation applications that need to run on Windows or Linux operating systems in industrial environments.

Products specifications

Attribute name Attribute value
Main
Device mounting flush
Terminal type touchscreen display
Product compatibility Modular Box PC
Range of product Harmony iPC
Product or component type flat screen
Complementary
Display colour 16777216 colors
Display size 15.6 inch
Touch panel multi-touch projected capactive technology (PCT)
Contrast ratio 500:1
Display type LED, colour TFT LCD
Supply voltage limits 18-36 V
Function available operate with water on screen
Depth 7 mm, 28 mm enclosure:
Height 269 mm
Aspect ratio 16:9
View angle horizontal x vertical 150 x 140°
Net weight 4.3 kg
Luminance 300 cd/m²
Touchscreen resolution 4096 x 4096
Display resolution 1366 x 768 pixels WHD FWXGA
Backlight lifespan 50000 hours at 25 °C
Width 419.7 mm
Local signalling status LED
Inrush current 8.9 A
[Us] rated supply voltage 100...240 V AC power supply, 24 V DC power supply
Pixel resolution 1366 x 768
Power consumption in W 49.5 W (Box PC HMIBMU), 54.5 W (Box PC HMIBMP)
Environment
Ambient air temperature for storage -30-70 °C
Standards class I division 2 ANSI/ISA 12-12-01,  UL 6110-2-201, CSA C22.2 No 142, class I division 2 CSA C22.2 No 213
Operating altitude 2000 m
Relative humidity 10-95 % non-condensing
Pollution degree 2
IP degree of protection IP66
Product certifications CE, ATEX, Marine GL Bridge, EAC, C-Tick, IEC-Ex
Ambient air temperature for operation 0-55 °C
NEMA degree of protection NEMA 4X
Vibration resistance 2 gn (f = 5-500 Hz) Cfast card, 2 gn (f = 5-500 Hz) SSD, 1 gn (f = 5-500 Hz) HDD
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 23.500 cm
Package 1 Width 61.000 cm
Package 1 Length 74.000 cm
Package 1 Weight 6.678 kg
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 77.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 70.000 kg
