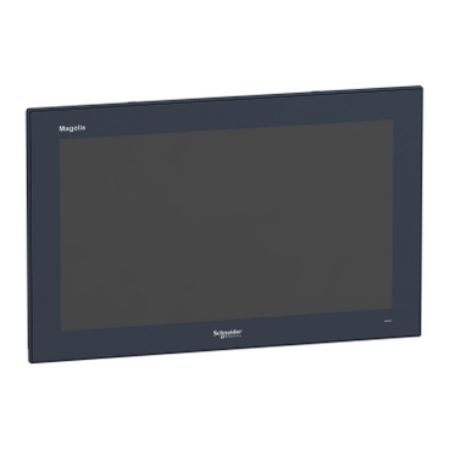

Picture of flat screen, Harmony iPC, 19inch wide display, multi touch, for modular box pc
SKU:

HMIDM9521

flat screen, Harmony iPC, 19inch wide display, multi touch, for modular box pc

Old price: $3,284.60 INC GST
$3,120.37 INC GST
Available for Shipping : 03-Aug-2025
Product Selector
flat screen, Harmony iPC, 19inch wide display, multi touch, for modular box pc
  • It can be easily integrated with Harmony HMIBM Modular Box and Harmony HMIDAD Display Adapter
  • Reduces maintenance as the display can be independently replaced
  • Certified for cULus Industrial Control and Hazardous Locations
  • 1366 x 768 pixels full HD display resolution
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
User guide
Catalog
Declaration of conformity
Circularity Profile
CAD
Product Page Link
Product Data Sheet
This product is part of the Harmony iPC range, an offer of Harmony HMIDM Modular Displays. This monitor is designed to be easily integrated with Harmony HMIBM Modular Box PCs to make a Panel PC and Harmony HMIDAD Display Adapter to make a Panel monitor. It features a 19" LED and LCD multi-touch screen with 1366 x 768 pixels with full HD display resolution. It can be easily integrated with Harmony HMIBM Modular Box and Harmony HMIDAD Display Adapter. This product works at a power consumption from 58.28W to 63.28W and a rated voltage of 24V DC. Its dimensions are 488.3mm (width) x 309mm (height) x 28mm (depth) and weighs 5.2 kg. This display comes with IP66 degree of protection. It is CCC, C-Tick, EAC certified and conforms to UL 60950, CSA C22.2 No 60950 standards. Harmony iPC runs at the Edge Control level of EcoStruxure, improves productivity and performance with data management functionality and flexibility.

Products specifications

Attribute name Attribute value
Main
Device mounting flush
Terminal type touchscreen display
Product compatibility Modular Box PC
Range of product Harmony iPC
Product or component type flat screen
Complementary
Display colour 16777216 colors
Display size 18.5 inch
Touch panel multi-touch projected capactive technology (PCT)
Contrast ratio 500:1
Display type LED, colour TFT LCD
Supply voltage limits 18-36 V
Function available operate with water on screen
Depth 7 mm, 28 mm enclosure:
Height 309 mm
Aspect ratio 16:9
View angle horizontal x vertical 150 x 140°
Net weight 5.2 kg
Luminance 300 cd/m²
Touchscreen resolution 4096 x 4096
Display resolution 1366 x 768 pixels WHD FWXGA
Backlight lifespan 50000 hours at 25 °C
Width 488.3 mm
Local signalling status LED
Inrush current 8.9 A
[Us] rated supply voltage 100...240 V AC power supply, 24 V DC power supply
Pixel resolution 1366 x 768
Power consumption in W 58.28 W (Box PC HMIBMU), 63.28 W (Box PC HMIBMP)
Environment
Ambient air temperature for storage -30-70 °C
Standards CSA C22.2 No 60950,  UL 60950
Operating altitude 2000 m
Relative humidity 10-95 % non-condensing
Pollution degree 2
IP degree of protection IP66
Product certifications CCC, C-Tick, EAC
Ambient air temperature for operation 0-55 °C
NEMA degree of protection NEMA 4X
Vibration resistance 2 gn (f = 5-500 Hz) Cfast card, 2 gn (f = 5-500 Hz) SSD, 1 gn (f = 5-500 Hz) HDD
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 23.5 cm
Package 1 Width 61.5 cm
Package 1 Length 74.2 cm
Package 1 Weight 5.2 kg

Related products

Picture of Display cable, Harmony Modular iPC, DP to DP for digital Video signal from Box PC to Adaptor

Display cable, Harmony Modular iPC, DP to DP for digital Video signal from Box PC to Adaptor

HMIYCABDP51
$215.27 INC GST $226.60 INC GST
View Detail

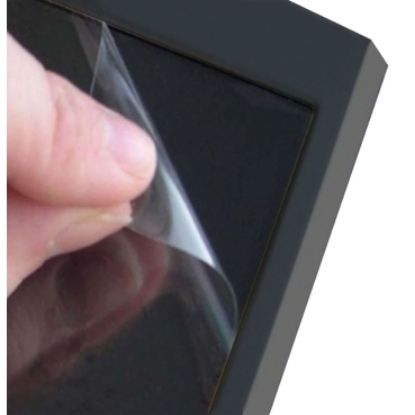

Picture of Removable protective film HMIP/D W19''
