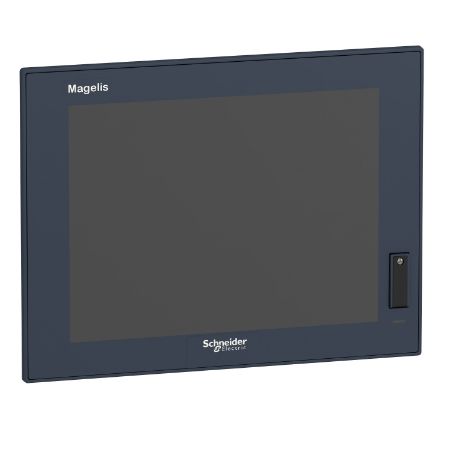

Picture of Flat screen, Harmony Modular iPC, Display PC 4:3 12" single touch for HMIBM
SKU:

HMIDM6421

Flat screen, Harmony Modular iPC, Display PC 4:3 12" single touch for HMIBM

Old price: $2,373.80 INC GST
$2,255.11 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
Flat screen, Harmony Modular iPC, Display PC 4:3 12" single touch for HMIBM
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
User guide
Catalog
Declaration of conformity
Circularity Profile
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device mounting flush
Product compatibility Modular Box PC
Range of product Harmony iPC
Terminal type touchscreen display
Product or component type flat screen
Complementary
Display colour 16777216 colors
Display resolution 1024 x 768 pixels XGA
Display size 12.1 inch
Touch panel single touch analogue resistive
Contrast ratio 500:1
Display type colour TFT LCD, LED
Supply voltage limits 18-36 V
Function available operate with water on screen
Backlight lifespan 50000 hours at 25 °C
Depth 7 mm, 66.3 mm enclosure:
Height 245.1 mm
Aspect ratio 4:3
Width 319.1 mm
Local signalling status LED
Integrated connection type USB 2.0 type A
View angle horizontal x vertical 140 x 115°
Net weight 2.3 kg
Luminance 300 cd/m²
Touchscreen resolution 2048 x 2048
Inrush current 8.9 A
[Us] rated supply voltage 100...240 V AC power supply, 24 V DC power supply
Power consumption in W 52.87 W (Box PC HMIBMU), 57.87 W (Box PC HMIBMP)
Environment
Relative humidity 10-95 % non-condensing
Ambient air temperature for storage -30-70 °C
Pollution degree 2
IP degree of protection IP66
Product certifications EAC, IEC-Ex, C-Tick, CE
Standards class I division 2 ANSI/ISA 12-12-01,  UL 6110-2-201, CSA C22.2 No 142, class I division 2 CSA C22.2 No 213
Ambient air temperature for operation 0-55 °C
Operating altitude 2000 m
NEMA degree of protection NEMA 4X
Vibration resistance 2 gn (f = 5-500 Hz) Cfast card, 2 gn (f = 5-500 Hz) SSD, 1 gn (f = 5-500 Hz) HDD
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 26.000 cm
Package 1 Width 45.000 cm
Package 1 Length 48.000 cm
Package 1 Weight 4.250 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 75.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 39.000 kg
