TM200CE40T

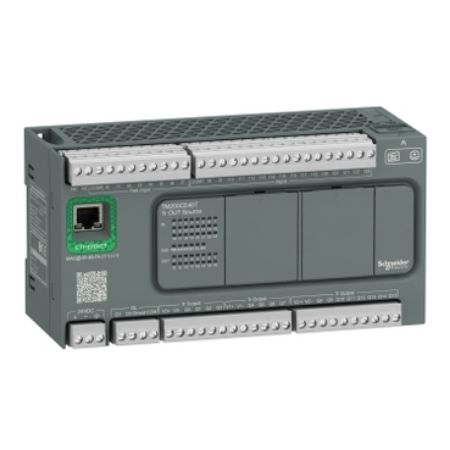

controller, Modicon Easy M200, 40 IO, transistor source, Ethernet

Old price: $942.70 INC GST

Price: $895.56 INC GST

Qty:

Available for Shipping : 24-Jul-2025

Controller: Modicon Easy M200 (TM200CE40T)

Model: Modicon Easy M200 with 40 input/output points.

Features transistor source outputs for reliable operation.

Equipped with Ethernet connectivity for seamless communication and integration.

Designed for efficient and versatile automation solutions.

Ideal for small to medium-scale control applications.

Be the first to review this product

Manufacturer: Schneider Electric

User guide

Instruction sheet

Declaration of conformity

Catalog

Environmental Disclosure

Circularity Profile

Product Page Link

Product Data Sheet

This product belongs to the Easy Modicon M200 range. A series of logic controllers designed for up to 168 I/O and 2-axis motion control. It has 16 regular inputs, 4 fast inputs, 4 high-speed inputs and 16 source transistor outputs, with 2 fast outputs. The controller operates with a rated supply/output voltage of 24V DC, an output current of 0.5A, and a power consumption of 18W at 24V DC.

Maintenance and updates are simplified with its micro SD memory card. It offers integrated connections, including mini B USB 2.0, serial link 1 with RS485, serial link 2 with RS232/RS485, Ethernet Modbus TCP/IP, and an additional serial link 2 with RS485. The internal flash memory is 512 bytes, while the micro SD card supports up to 32GB capacity.

This IP20-rated controller measures 175mm (Width) x 70mm (Depth) x 90mm (Height) and weighs 0.523kg. It is ideal for applications in textile, machine tools, packaging, material handling, pumping, hoisting, and electronic assembly machines.

The product is certified by CE, CSA, IACS E10, RCM, and CULus, meeting EN/IEC 61010-2-201 and EN/IEC 61131-2 standards. It supports DIN rail mounting and offers an entry-level PLC solution that caters to emerging markets at an affordable price. It ensures the best performance-to-price ratio for small automation systems requiring flexibility and simple motion control.

Products specifications

Attribute name	Attribute value
Main
[Us] rated supply voltage	24 V DC
Discrete output voltage	24 V DC
Discrete output current	0.5 A
Discrete I/O number	40
Power consumption in W	18-18 W at 24 V DC (with max I/O)
Discrete output logic	positive logic (source)
Range of product	Easy Modicon M200
Discrete output type	transistor
Discrete input current	7 mA for input
Discrete input number	I8...I23: 16 regular input, I0, I1, I6, I7: 4 high speed input, I2...I5: 4 fast input
Product or component type	logic controller
Discrete input voltage type	DC
Discrete input voltage	24 V
Discrete output number	Q2...Q15: 14 transistor output, Q0...Q1: 2 fast output (PLS/PWM/PTO mode)
Discrete input logic	sink or source (positive/negative) type 1 conforming to IEC 61131-2
Complementary
Insulation	between supply and internal logic at 500 V DC, between output groups at 500 V AC, between output and internal logic at 500 V AC, between input groups at 500 V AC, between fast input and internal logic at 500 V AC, between input and internal logic at 500 V AC, non-insulated between inputs
Data storage equipment	32 GB micro SD card (optional)
Execution time for 1 KInstruction	0.3 ms for event and periodic task
Control signal type	CW/CCW at 100 kHz for fast input (HSC mode), single phase at 100 kHz for fast input (HSC mode), pulse/direction at 100 kHz for fast input (HSC mode), quadrature (x1, x2, x4) at 100 kHz for fast input (HSC mode)
Supply voltage limits	20.4-28.8 V
Memory capacity	512 byte internal flash for backup of programs
Configurable filtering time	12 ms for input, 3 ms for input, 0 ms for input
Voltage state 0 guaranteed	<= 5 V for input
Backup time	3 years at 25 °C (by interruption of power supply)
Marking	CE
Protection type	overload and short-circuit protection at 2 A
Communication port protocol	Ethernet Modbus TCP/IP: Modbus TCP/IP client/server, non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network, USB port: USB - SoMachine-Network
Transmission rate	10/100 Mbit/s for bus length of 100-100 m for Ethernet Modbus TCP/IP, 12 Mbit/s for USB, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3-3 m for RS232, 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15-15 m for RS485
Maximum current per output common	4 A, 2 A
Positioning functions	PWM/PLS 2 channel(s) at 100 kHz
Height	90 mm
Maximum cable distance between devices	unshielded cable: <150 m for output, shielded cable: <10 m for high speed input, shielded cable: <10 m for fast input, unshielded cable: <50 m for input
Electrical connection	removable screw terminal block, 4 terminal(s) for connecting the serial link1, removable screw terminal block, 3 terminal(s) for connecting the 24 V DC power supply, removable screw terminal blockfor outputs, removable screw terminal blockfor inputs, RJ45 connectorfor connecting Ethernet network, mini B USB 2.0 connectorfor a programming terminal
Counting input number	4 fast input (HSC mode) at 100 kHz 32 bits
Maximum leakage current	0.1 mA for transistor output
Maximum tungsten load	<12 W for output and fast output
Depth	70 mm
Width	175 mm
Response time	55 µs turn-on, I14...I23 terminal(s) for regular input, 125 µs turn-off, I14...I23 terminal(s) for regular input, 35 µs turn-on, I8...I13 terminal(s) for regular input, 100 µs turn-off, I8...I13 terminal(s) for regular input, 35 µs turn-on, I2...I5 terminal(s) for fast input, 100 µs turn-off, I2...I5 terminal(s) for fast input, 5 µs turn-on, I0, I1, I6, I7 terminal(s) for high speed input, 5 µs turn-off, I0, I1, I6, I7 terminal(s) for high speed input, 1 ms turn-off, Q0...Q15 terminal(s) for output, 1 ms turn-on, Q0...Q15 terminal(s) for output
Local signalling	2 LEDs (green) for communication (LK/ACT 10/100), 1 LED per channel (green) for I/O state, 1 LED (green) for SL1, 1 LED (red) for BAT, 1 LED (green) for SD card access (SD), 1 LED (red) for module error (ERR), 1 LED (green) for RUN, 1 LED (green) for PWR
Mounting support	top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Execution time per instruction	0.2 µs Boolean
Integrated connection type	isolated serial link serial 2 with terminal block connector and RS485 interface , Ethernet Modbus TCP/IP Ethernet with RJ45 connector and 1 Ethernet port 10/100BASE-T interface , non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface , non isolated serial link serial 1 with terminal block connector and RS485 interface , USB port with mini B USB 2.0 connector
Voltage state 1 guaranteed	>= 15 V for input
Maximum voltage drop	<1 V
Net weight	0.523 kg
Maximum number of I/O expansion module	4 with 144 discrete output(s) for transistor output, 4 with 64 discrete output(s) for relay output
Regulation loop	adjustable PID regulator up to 14 simultaneous loops
Reset time	1 s automatic reset
Output frequency	100 kHz for fast output (PWM/PLS mode) at Q0...Q1
Battery type	BR2032 Li-CFx (Lithium-Carbon Monofluoride), battery life: 5 year(s)
Clock drift	<= 90 s/month at 25-25 °C
Inrush current	35 A
Input impedance	3.3 kOhm for discrete input
Exct time for event task	60 µs response time
Environment
IP degree of protection	IP20 with protective cover in place
Relative humidity	10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation)
Ambient air temperature for storage	-25-70 °C
Electromagnetic compatibility	electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4, radiated emission - test level: 47 dBμV/m QP class A (10 m) conforming to IEC 55011, radiated emission - test level: 40 dBμV/m QP class A (10 m) conforming to IEC 55011, conducted emission - test level: 73 dBμV/m QP/60 dBμV/m AV (power lines (AC)) conforming to IEC 55011, conducted emission - test level: 79 dBμV/m QP/66 dBμV/m AV (power lines (AC)) conforming to IEC 55011, conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (AC)) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 0.5 kV (power lines (DC)) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (shielded cable) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 2 kV (power lines (AC)) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5, electrical fast transient/burst immunity test - test level: 1 kV (serial link) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (relay output) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4, magnetic field at power frequency - test level: 30 A/m conforming to IEC 61000-4-8, susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2
Ambient air temperature for operation	0-55 °C (horizontal installation)
Pollution degree	<= 2
Immunity to microbreaks	2 ms
Operating altitude	0...2000 m
Vibration resistance	2 gn at 8.7-150 Hz on panel mounting, 3.5 mm at 5-8.7 Hz on panel mounting, 1 gn at 8.4-150 Hz on symmetrical rail, 3.5 mm at 5-8.4 Hz on symmetrical rail
Shock resistance	30 gn for 6 ms, 15 gn for 11 ms
Storage altitude	0-3000 m
Standards	IEC 61010-2-201, IEC 61131-2
