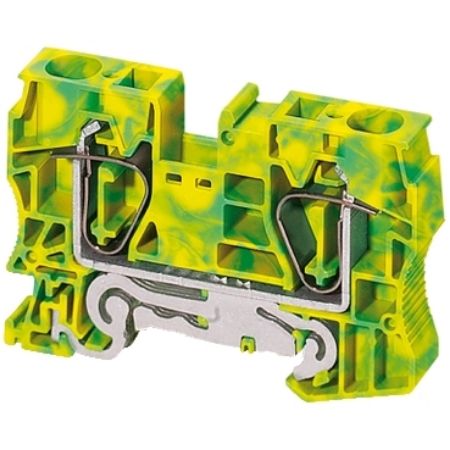

Picture of Terminal block, Linergy TR, spring type, protective earth, 2 points, 16mm², green-yellow, set of 50
SKU:

NSYTRR162PE

Terminal block, Linergy TR, spring type, protective earth, 2 points, 16mm², green-yellow, set of 50

Old price: $17.16 INC GST
$15.44 INC GST
Available for Shipping : 24-Jul-2025
Terminal block, Linergy TR, spring type, protective earth, 2 points, 16mm², green-yellow, set of 50
  • It belongs to linergy passthrough terminal block with 16 mm² nominal cross section.
  • Mounting by clip-on and sideways connection by single-level 1x1 spring terminals.
  • Releasing pressure on the sides stops the flow of cable ends.
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 50
Terminal block level 1
Length 80 mm
Device short name TRR
Colour green-yellow
Mounting mode clip-on
Range Linergy
Range of product Linergy
Nominal cross section 16 mm²
Product name Linergy TR
Product or component type terminal block
Terminal block type protective earth
Complementary
Range compatibility TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Compatibility code terminal block
Wire stripping length 18 mm
Tool type disconnection: flat screwdriver, connection: flat screwdriver
Number of measurement input 2
Connection position top
Connections - terminals 1 x spring terminal: downstream, 1 x spring terminal: upstream
Height 51 mm
Material polyamide 6/6: insulating case
Dielectric constant 3.7 at 1 MHz
Net weight 51.2 g
Number of terminals 2
Product compatibility Spacial enclosures
Surface resistance 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Resistivity 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Flame retardance V0, thickness0.8 mm conforming to UL 94
Dielectric loss 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
Creep resistance 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width 12.2 mm
Cable cross section 1.5-16 mm², flexible with cable end, 0.2-16 mm², flexible without cable end, 0.2-25 mm², solid
Environment
Product certifications DNV, CSA, VDE, EAC, ATEX, cURus, LR, GL, IEC-Ex
Ambient air temperature for operation -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength 1000 V conforming to IEC 60243-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.2 cm
Package 1 Width 5.1 cm
Package 1 Length 8 cm
Package 1 Weight 48 g
Unit Type of Package 2 2
Number of Units in Package 2 25
Package 2 Height 6.2 cm
Package 2 Width 11.2 cm
Package 2 Length 31.3 cm
Package 2 Weight 1.259 kg
Unit Type of Package 3 3
Number of Units in Package 3 200
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 10.563 kg
