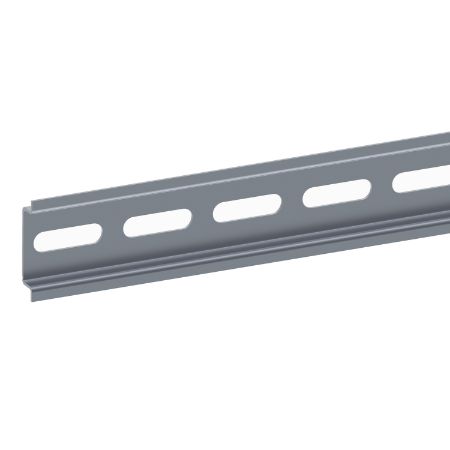

Picture of Spacial, One symmetric mounting rail perforated 35x7.2 mm L2000 mm type B, Order by Multiples of 10 units
SKU:

NSYSDR200BD

Spacial, One symmetric mounting rail perforated 35x7.2 mm L2000 mm type B, Order by Multiples of 10 units

Old price: $95.04 INC GST
$85.54 INC GST
Available for Shipping : 25-Sep-2025
Spacial, One symmetric mounting rail perforated 35x7.2 mm L2000 mm type B, Order by Multiples of 10 units
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
Set of 10 symmetrical DIN rails for equipment The rail is made from perforated 1mm galvanised steel The nominal width is 35mm The nominal height is 7,2mm The product length is 2000mm Fixed with a pitch of 25mm This product is qualified as a green premium, with minimal use of hazardous substances

Products specifications

Attribute name Attribute value
Main
Device short name TR
Device application multi-purpose
Quantity per set set of 10
Type of rail symmetrical DIN
Range Spacial
Device composition 1 rail
Product or component type rail
Accessory / separate part category mounting accessory
Range compatibility Thalassa, Spacial
Enclosure nominal dimensions -
Complementary
Material galvanised steel
Height 7.2 mm nominal:
Width 35 mm nominal:
Length 2000 mm
Fixing mode by fixing element - structure of enclosure location
Thickness 1 mm
Surface finish perforated
Adjustment continuous adjustment, pitch 25 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.800 cm
Package 1 Width 3.500 cm
Package 1 Length 200.000 cm
Package 1 Weight 660.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 4.500 cm
Package 2 Width 4.500 cm
Package 2 Length 200.000 cm
Package 2 Weight 6.600 kg
Unit Type of Package 3 3
Number of Units in Package 3 800
Package 3 Height 45.000 cm
Package 3 Width 120.000 cm
Package 3 Length 200.000 cm
Package 3 Weight 550.000 kg
