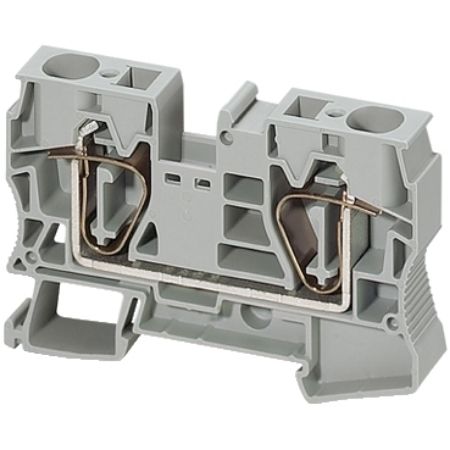

Picture of Linergy, Terminal block, Linergy TR, spring type, feed through, 2 points, 16mm², grey
SKU:

NSYTRR162

Linergy, Terminal block, Linergy TR, spring type, feed through, 2 points, 16mm², grey

Old price: $15.84 INC GST
$14.26 INC GST
Available for Shipping : 24-Jul-2025
Linergy, Terminal block, Linergy TR, spring type, feed through, 2 points, 16mm², grey
  • It belongs to linergy passthrough terminal block with 16 mm² nominal cross section.
  • Mounting by clip-on and sideways connection by single-level 1x1 spring terminals.
  • Releasing pressure on the sides stops the flow of cable ends.
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 50
Accessory / separate part category connection accessory
Terminal block level 1
Length 80 mm
Device short name TRR
Colour grey
Mounting mode clip-on
Range Linergy
Range of product Linergy
Nominal cross section 16 mm²
Product name Linergy TR
Product or component type terminal block
Terminal block type passthrough
Complementary
Range compatibility TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Compatibility code terminal block
Wire stripping length 18 mm
Tool type disconnection: flat screwdriver, connection: flat screwdriver
Number of measurement input 2
Connection position top
Connections - terminals 1 x spring terminal: downstream, 1 x spring terminal: upstream
Height 51 mm
[In] rated current 85-85 A cURus, 85-85 A CSA, 76-76 A conforming to EN/IEC 60947-7-1
Material chromium-nickel steel: spring, copper alloy: commoning link, copper alloy: connector and screw, polyamide 6/6: insulating case
Dielectric constant 3.7 at 1 MHz
Net weight 37 g
Number of terminals 2
Product compatibility Spacial enclosures
Surface resistance 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Resistivity 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Flame retardance V0, thickness0.8 mm conforming to UL 94
Dielectric loss 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
[Ue] rated operational voltage 600 V cURus, 800 V conforming to EN/IEC 60947-7-1, 600 V CSA
Creep resistance 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width 12.2 mm
Cable cross section 0.2-25 mm², solid without cable end, 1.5-16 mm², flexible with cable end, 0.2-25 mm², solid with cable end, 0.2-16 mm², flexible without cable end
Environment
Product certifications LR, ATEX, cURus, CSA, VDE, DNV, IEC-Ex, GL, EAC
Ambient air temperature for operation -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength 1000 V conforming to IEC 60243-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.500 cm
Package 1 Width 11.500 cm
Package 1 Length 8.000 cm
Package 1 Weight 37.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 9.500 cm
Package 2 Width 11.500 cm
Package 2 Length 36.000 cm
Package 2 Weight 1.899 kg
Unit Type of Package 3 3
Number of Units in Package 3 300
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 11.932 kg

Related products

Picture of Linergy, Plug-in bridge, Linergy TR, 2 points, for 16mm² terminal blocks, 2 way, red, set of 10

Linergy, Plug-in bridge, Linergy TR, 2 points, for 16mm² terminal blocks, 2 way, red, set of 10

NSYTRAL162
$5.10 INC GST $5.67 INC GST
View Detail
Picture of Spacial, One symmetric mounting rail perforated 35x7.2 mm L2000 mm type B, Order by Multiples of 10 units

Spacial, One symmetric mounting rail perforated 35x7.2 mm L2000 mm type B, Order by Multiples of 10 units

NSYSDR200BD
$85.54 INC GST $95.04 INC GST
View Detail
Picture of Terminal block, Linergy TR, spring type, protective earth, 2 points, 16mm², green-yellow, set of 50

Terminal block, Linergy TR, spring type, protective earth, 2 points, 16mm², green-yellow, set of 50

NSYTRR162PE
$15.44 INC GST $17.16 INC GST
View Detail

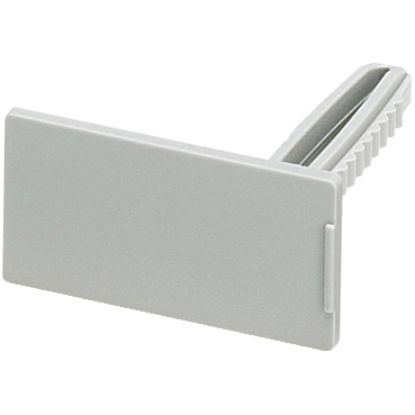

Picture of Linergy, Terminal Marker Carrier for End Bracket NSYTRAAB35, NSYTRAAB15
