SKU:

KNA160ED4303

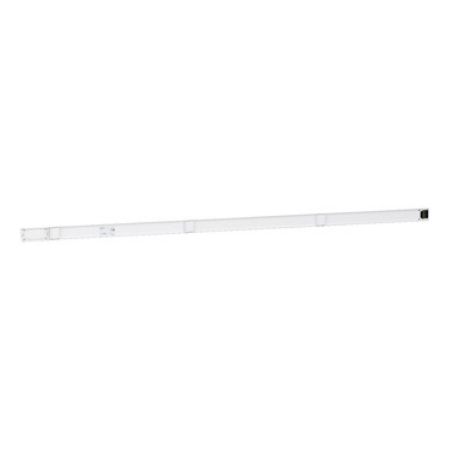

Straight distribution length, Canalis KN, standard, aluminium, 160A, 3L+N+PE, fixed length 3m, 3 outlets, RAL9001

$731.28 INC GST
Available for Shipping : 10-Nov-2025
Straight distribution length, Canalis KN, standard, aluminium, 160A, 3L+N+PE, fixed length 3m, 3 outlets, RAL9001
  • Busbar trunking system for power distribution from 40A up to 160A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Manufacturer: Schneider Electric
Canalis straight length for KN. It's applied to low power distribution with lubricated sliding contact. The operational voltage is from 230VAC to 500VAC 50/60Hz. The rated operational current is 160A at 35 ℃. It provides white RAL 9001 surface treatment. Mounted by screws with up neutral position. Busbar trunking polarity is 3L + N + PE and 3L + PEN. Designed with 1 circuit allowing and 3 tap-off outlets. It provides 0.186 pT radiated magnetic field. It provides IP55 protection conforming to IEC 60529. IK08 conforms to EN/IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
Device short name KNA
Device application low power distribution
Number of tap-off outlets 3
[Ie] rated operational current 160 A at 35 °C
Busbar trunking polarity 3L + N + PE, 3L + PEN
Range Canalis
Length 3 m
Product name KN
Product or component type straight length
Range of product Canalis
Complementary
[Ipk] rated peak withstand current 20 kA
[Ue] rated operational voltage 230...500 V
Depth 27.5 mm
Width 92 mm
Colour white (RAL 9001)
Neutral position up
Electrical connection lubricated sliding contact
Mounting mode by screws
Thermal stress limit 8000 kA².s
Control type without
Maximum voltage drop <0.063 V with power factor = 0.7 at 50 Hz with 1A for 100 m long,  <0.067 V with power factor = 0.8 at 50 Hz with 1A for 100 m long,  <0.071 V with power factor = 0.9 at 50 Hz with 1A for 100 m long,  <0.068 V with power factor = 1 at 50 Hz with 1A for 100 m long
Net weight 7.3 kg
Radiated magnetic field 0.186 µT
Number of circuits 1
[Ui] rated insulation voltage 500 V
Linear resistance 0.84 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/PE, 0.75 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/N, 0.79 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/Ph, 2.22 mΩ/m Rb1 35 °C at Inc with impedance method Ph/PE, 1.61 mΩ/m Rb1 35 °C at Inc with impedance method Ph/N, 1.58 mΩ/m Rb1 35 °C at Inc with impedance method Ph/Ph, 1.71 mΩ/m Rb0 20 °C impedance method Ph/PE, 1.24 mΩ/m Rb0 20 °C impedance method Ph/N, 1.21 mΩ/m Rb0 20 °C impedance method Ph/Ph, 3.58 mΩ/m Z0 20 °C symmetrical components method Ph/PE, 1.29 mΩ/m X0 20 °C symmetrical components method Ph/PE, 3.34 mΩ/m R0 20 °C symmetrical components method Ph/PE, 3.01 mΩ/m Z0 20 °C symmetrical components method Ph/N, 1.4 mΩ/m X0 20 °C symmetrical components method Ph/N, 2.67 mΩ/m R0 20 °C symmetrical components method Ph/N, 0.83 mΩ/m Z1 35 °C at Inc and 50 Hz phase conductor, 0.24 mΩ/m X1 35 °C at Inc and 50 Hz phase conductor, 0.79 mΩ/m R1 35 °C at Inc and 50 Hz phase conductor, 0.61 mΩ/m R20 20 °C phase conductor, 1.09 mΩ/m 20 °C protective conductor
THDI 33-100 % 100 A, 15-33 % 130 A, 0-15 % 160 A
[Uimp] rated impulse withstand voltage 6 kV
Standards IEC 61439-6
Network frequency 50/60 Hz
[Icw] rated short-time withstand current 2.8 kA
Environment
IP degree of protection IP55 conforming to IEC 60529
Ambient air temperature for operation 50-55 °C (87 % of In), 45-50 °C (91 % of In), 40-45 °C (94 % of In), 35-40 °C (97 % of In), 0-35 °C (100 % of In)
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.000 cm
Package 1 Width 10.000 cm
Package 1 Length 310.000 cm
Package 1 Weight 6.000 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 10.900 cm
Package 2 Width 15.800 cm
Package 2 Length 314.000 cm
Package 2 Weight 25.000 kg
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 44.500 cm
Package 3 Width 64.000 cm
Package 3 Length 320.000 cm
Package 3 Weight 320.000 kg
