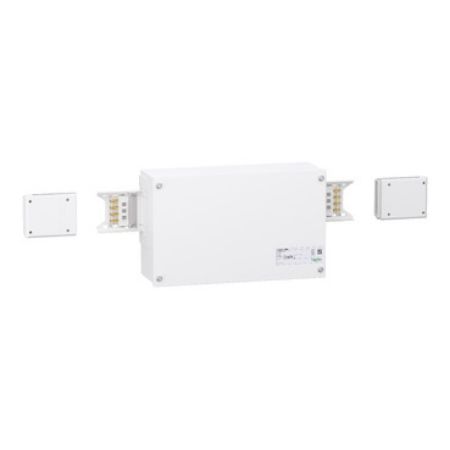

Picture of End feed unit, Canalis KNA, 160A, central mounting, polarity 3L+N+PE/3L+PEN, white RAL9001
SKU:

KNA160ABT4

End feed unit, Canalis KNA, 160A, central mounting, polarity 3L+N+PE/3L+PEN, white RAL9001

$1,091.64 INC GST
Available for Shipping : 10-Nov-2025
End feed unit, Canalis KNA, 160A, central mounting, polarity 3L+N+PE/3L+PEN, white RAL9001
  • Busbar trunking system for power distribution from 40A up to 160A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This product is a end feed-unit Canalis KN offer. It is used to supply a Canalis KN line via a cable, and it can be mounted at the end of a line. The rated operational current is 160A at 35 ℃. The operational voltage is from 230VAC to 500VAC 50/60Hz. The bar material of the feed unit is in aluminium. It is clipped on left or right side of the busbar trunking, connected by lug terminals. The colour is white RAL 9001. There is an end cover provided with the flexible unit. It provides IP55 protection degree conforming to EN/IEC 60529. It provides IK08 mechanical impact degree conforming to EN/IEC 62262. It is compliant with EN/IEC 61439-6 standard. It is compliant with Schneider Green Premium ecolabel (RoHS, REACh, Product Environmental Profile, End of Life Instructions.).

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 230...500 V
Device short name KNA
Colour white (RAL 9001)
Protection type without protection
[Ie] rated operational current 160 A
Busbar trunking polarity L + N + PE, 3L + N + PE
Control type without
Range Canalis
Material aluminium
Number of circuits 1
Product name KN
Product or component type feed unit
Product compatibility Canalis KNA busbar trunking 160-160 A
Range of product Canalis
Complementary
Depth 122 mm
Width 698 mm
Provided equipment end cover
Mounting mode by clips
Mounting location central
Net weight 5.5 kg
Mounting support busbar
Connections - terminals lug for 95-95 mm² rigid, lug for 95-95 mm² flexible
Standards IEC 61439-6
Height 243 mm
Environment
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.500 cm
Package 1 Width 24.500 cm
Package 1 Length 60.000 cm
Package 1 Weight 6.200 kg
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 85.000 cm
Package 2 Width 62.000 cm
Package 2 Length 92.000 cm
Package 2 Weight 85.000 kg
