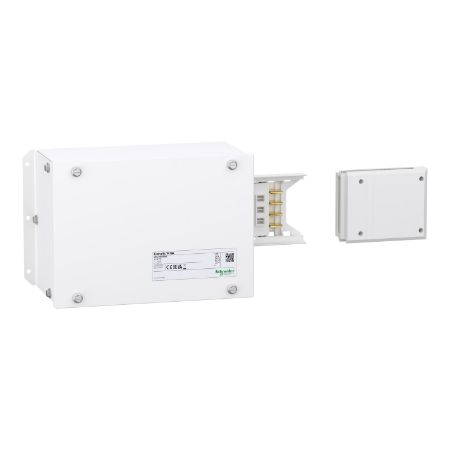

Picture of End feed unit, Canalis KNA, 160A, right or left mounting, polarity 3L+N+PE/3L+PEN, white RAL9001
SKU:

KNA160AB4

End feed unit, Canalis KNA, 160A, right or left mounting, polarity 3L+N+PE/3L+PEN, white RAL9001

$407.88 INC GST
Available for Shipping : 10-Nov-2025
End feed unit, Canalis KNA, 160A, right or left mounting, polarity 3L+N+PE/3L+PEN, white RAL9001
  • Busbar trunking system for power distribution from 40A up to 160A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Instruction sheet
Catalog
Product Page Link
Product Data Sheet
Canalis feed unit for KNA. The rated operational voltage is from 230VAC to 500VAC. The rated operational current is 160A. The bar material of feed-unit is aluminium with white RAL 9001 surface treatment. Busbar mounting by clips on left or right side of trunking, connection by lug terminals. Designed with 1 circuit allowing. It provides end cover. It provides IP55 protection conforming to IEC 60529. IK08 conforms to IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 230...500 V
Device short name KNA
Colour white (RAL 9001)
Protection type without protection
[Ie] rated operational current 160 A
Busbar trunking polarity L + N + PE, 3L + N + PE
Control type without
Range Canalis
Material aluminium
Number of circuits 1
Product name KN
Product or component type feed unit
Product compatibility Canalis KNA busbar trunking 160-160 A
Range of product Canalis
Complementary
Depth 130 mm
Width 356 mm
Provided equipment end cover
Mounting mode by clips
Mounting location right, left
Net weight 2.8 kg
Mounting support busbar
Connections - terminals lug for 95-95 mm² rigid, lug for 95-95 mm² flexible
Standards IEC 61439-6
Height 185 mm
Environment
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.000 cm
Package 1 Width 20.000 cm
Package 1 Length 38.000 cm
Package 1 Weight 3.100 kg
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 85.000 cm
Package 2 Width 62.000 cm
Package 2 Length 92.000 cm
Package 2 Weight 85.000 kg
