PowerLogic SC150 CT-CAPA: Switch controller, 1/5 A, VPIS/VDS/PPACS sensors

Old price: $2,695.00 INC GST

Price: $2,425.50 INC GST

Qty:

Available for Shipping : 14-Aug-2025

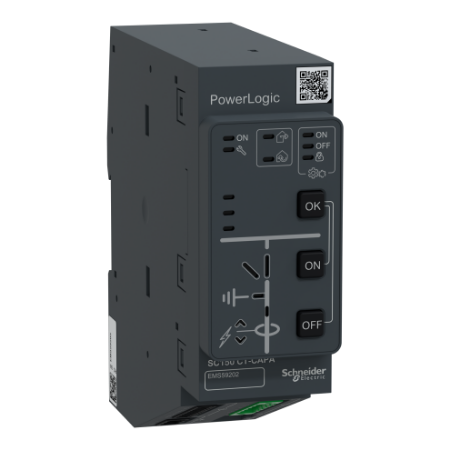

PowerLogic SC150 CT-CAPA: Switch controller, 1/5 A, VPIS/VDS/PPACS sensors

Switchgear control and monitor

Advanced fault current detection

Power measurement

Power quality

Sectionalizer automation

Embedded operator HMI

Disturbance recording

Be the first to review this product

Manufacturer: Schneider Electric

Environmental Disclosure

Circularity Profile

Declaration of conformity

Catalog

User guide

Product Page Link

Product Data Sheet

The Easergy SC150 module offers many high-performance features needed to measure and detect a fault current on the MV line. The switch controller are designed for clip in DIN rail. The measurement voltage range from 0…30 VAC VPIS and from 0…30 VAC PPACS. It include 8 digital inputs, 2 digital relay switch, and 2 RJ45 communication port. The operating temperature is -40°C to + 70°C. The storage temperature is -40°C to + 85°C. Mechanical dimensions are 140 mm in height, 45 mm in width and 140 mm in depth.

Products specifications

Attribute name	Attribute value
Main
Device short name	SC150
Range of product	PowerLogic T300
Complementary
Type of measurement	voltage: class 0.5, current: class 0.5, current, frequency, voltage
Synchronisation time between inputs	1 ms
Analogue input type	current 0.01...35 A (impedance 0.001 Ohm)4 x
Breaking capacity	2000 VA
Data recording	demand values, event logs, sequence of event recording, current value before fault, counter
Control type	illuminated push-button status:
Software function	Operating/Status report, reports and diagrams, security/authority verification, assistance in commissioning and operating the installation, event log, alarm
Power consumption in VA	2 VA
Communication port protocol	IEC 60870-5-104
[Us] rated supply voltage	12...48 V DC +/- 20 %
Number of inputs	8 digital conforming to IEC 61131-2 type 3
Maximum switching voltage	440 V AC
Measurement current	5-5 A, 1-1 A
Irms rated making capacity	15 A during 4 s
Product or component type	MV switch controller
Protection type	ANSI 37 : phase undercurrent , ANSI 59N : neutral voltage displacement , ANSI 59 : overvoltage , ANSI 27 : undervoltage , ANSI 47 : negative sequence overvoltage , ANSI 67N : directional earth fault , ANSI 67 : directional phase overcurrent , ANSI 50N/51N : earth fault , ANSI 50/51 : overcurrent
Output voltage	90...220 V AC motor: , 12...127 V DC motor:
Memory capacity	4 MB
Continuous output current	8 A
Number of outputs	2 digital (relay) switch:
Measurement voltage	: 0-30 V PPACS AC at 50/60 Hz (single or three phases), : 0-30 V VDS LRM AC at 50/60 Hz (single or three phases), : 0-30 V VPIS AC at 50/60 Hz (single or three phases)
Communication port support	ETHERNET 2 RJ45
Environment
Operating altitude	2000 m
Depth	140 mm
Width	45 mm
Mechanical robustness	shocks 10 gn 11 ms 3 pulses in operation conforming to IEC 60068-2-27, bumps 10 gn 16 ms 1000 bumps non energized conforming to IEC 60068-2-29, vibrations 10-2000 Hz 1 gn 10 cycles conforming to IEC 60068-2-6
Type of installation	outdoor in cabinet, indoor
IP degree of protection	IP4X front: conforming to IEC 60529, IP2X body: conforming to IEC 60529
Relative humidity	5-95 % conforming to IEC 60068-2-30
Ambient air temperature for storage	-40-85 °C
Fixing mode	clip-in (DIN rail)
Net weight	0.515 kg
Electromagnetic compatibility	conducted and radiated emissions class A conforming to EN 55022, magnetic field at power frequency - test level: level 5 criteria B conforming to IEC 61000-4-8, surge immunity test - test level: level 3 criteria A conforming to IEC 61000-4-5, electrostatic discharge - test level: level 4 criteria B conforming to IEC 61000-4-2, immunity to voltage dips criteria A conforming to IEC 61000-4-29, radiated radio-frequency electromagnetic field immunity test - test level: level 4 criteria A conforming to IEC 61000-4-3, 100 kHz damped oscillating wave - test level: level 3 criteria A conforming to IEC 61000-4-12, conducted disturbance emission - test level: level 4 criteria A conforming to IEC 61000-4-16, conducted RF disturbances - test level: level 3 criteria A conforming to IEC 61000-4-6, electrical fast transient/burst immunity test - test level: level 4 criteria A conforming to IEC 61000-4-4
Standards	IEC 61850, IEC 61000-4-30:class S, IEC 62586-1, IEC 61557-12, IEC 60255-27
Ambient air temperature for operation	-40-70 °C
Height	140 mm
IK degree of protection	IK07 conforming to IEC 62262
Product certifications	CE
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	8.0 cm
Package 1 Width	19.0 cm
Package 1 Length	20.0 cm
Package 1 Weight	668.0 g
Unit Type of Package 2	2
Number of Units in Package 2	8
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	5.794 kg
