Picture of Easergy PS50-24V: Power supply and battery charger 12V and 24V outputs
SKU:

EMS58587

Easergy PS50-24V: Power supply and battery charger 12V and 24V outputs

Old price: $5,848.34 INC GST
$5,263.51 INC GST
Available for Shipping : 24-Jul-2025
Easergy PS50-24V: Power supply and battery charger 12V and 24V outputs
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Environmental Disclosure
Circularity Profile
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet
The Easergy T300 backup power supplies are designed for long power supply interruption and to maintain control and monitoring of the entire MV substation during outages. Designed for 50Hz or 60Hz networks, supply voltage can range from 110 to 220VDAC or 90 to 264VAC. This product can be installed on DIN rail. The operating temperature is -40°C to + 70°C. The storage temperature is -40°C to + 70°C. This device has 1 digital relay output for battery fault signalling, and 1 digital relay output for main presence. Complient to standards IEC 60255-27, CE certification. Communication enabled with a RS485 serial port and the Modbus port protocol. Mechanical dimensions are 190 mm in height, 270 mm in width and 71 mm in depth.

Products specifications

Attribute name Attribute value
Main
Device short name PS50
Range of product Easergy T300
Complementary
Product compatibility BAT24AH, BAT38AH
Battery capacity 38 Ah at 12 V, lead-acid battery, 24 Ah at 12 V, lead-acid battery
Protection type against short-circuits, integrated thermal protection
Surge withstand 20 kV during 1.2/50 µs
Input voltage limits 440 V AC/DC (L-N)
Communication port protocol Modbus
[Us] rated supply voltage 110...240 V AC 50/60 Hz, 110...240 V DC
Rated short-duration power frequency withstand voltage 10 kV at 50 Hz during 1 min
Communication port support RS485
Charging time 24 h
Autonomy 16 h
Product or component type power supply
Number of outputs 1 digital (relay) main presence: , 1 digital (relay) battery fault (BAT):
Output voltage 24 V DC, 12 V DC
Environment
Operating altitude 2000 m
Depth 71 mm
Overvoltage category IV
Width 270 mm
Operating position vertical
Mechanical robustness shocks 10 gn 11 ms 3 pulses in operation conforming to IEC 60068-2-27, bumps 10 gn 16 ms 1000 bumps non energized conforming to IEC 60068-2-29, vibrations 10-2000 Hz 1 gn 10 cycles conforming to IEC 60068-2-6
Relative humidity 5-95 % conforming to IEC 60068-2-30
Ambient air temperature for storage -40-70 °C
IP degree of protection IP20 conforming to IEC 60529
Net weight 2.75 kg
Electromagnetic compatibility magnetic field at power frequency - test level: level 5 criteria B conforming to IEC 61000-4-8, surge immunity test - test level: level 3 criteria A conforming to IEC 61000-4-5, electrostatic discharge - test level: level 4 criteria B conforming to IEC 61000-4-2, immunity to voltage dips criteria A conforming to IEC 61000-4-29, radiated radio-frequency electromagnetic field immunity test - test level: level 4 criteria A conforming to IEC 61000-4-3, 100 kHz damped oscillating wave - test level: level 3 criteria A conforming to IEC 61000-4-12, conducted disturbance emission - test level: level 4 criteria A conforming to IEC 61000-4-16, conducted RF disturbances - test level: level 3 criteria A conforming to IEC 61000-4-6, conducted and radiated emissions class A conforming to EN 55022, electrical fast transient/burst immunity test - test level: level 4 criteria A conforming to IEC 61000-4-4
Ambient air temperature for operation -40-70 °C
Mounting support DIN rail
Standards IEC 60255-27
Height 190 mm
IK degree of protection IK07 conforming to IEC 62262
Product certifications CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.000 cm
Package 1 Width 27.000 cm
Package 1 Length 37.500 cm
Package 1 Weight 3.228 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.836 kg
Unit Type of Package 3 3
Number of Units in Package 3 16
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 77.000 kg

Related products

Picture of PowerLogic BAT24Ah 12V 24Ah 10 years life high rate industrial VRLA battery

PowerLogic BAT24Ah 12V 24Ah 10 years life high rate industrial VRLA battery

EMS58582
$808.51 INC GST $898.34 INC GST
View Detail
Picture of PowerLogic BAT38Ah 12V 38Ah 10 years life high rate industrial VRLA battery

PowerLogic BAT38Ah 12V 38Ah 10 years life high rate industrial VRLA battery

EMS58583
$1,056.01 INC GST $1,173.34 INC GST
View Detail

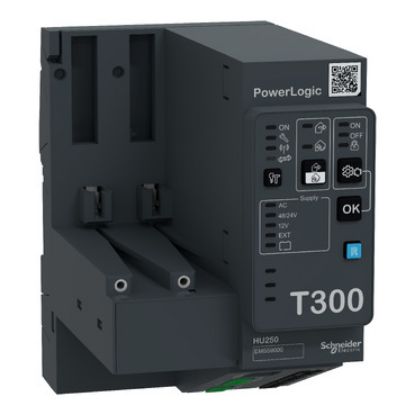

Picture of PowerLogic HU250: Head Unit communication gateway with cyber security management
