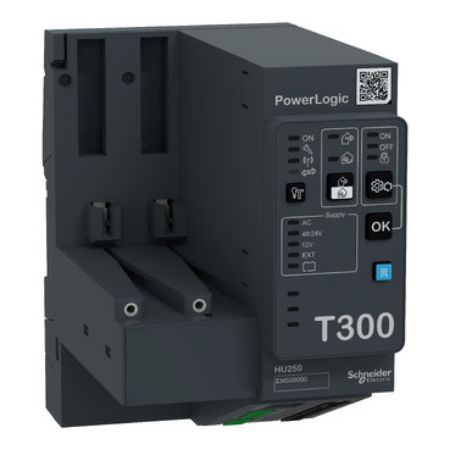

Picture of PowerLogic HU250: Head Unit communication gateway with cyber security management
SKU:

EMS59000

PowerLogic HU250: Head Unit communication gateway with cyber security management

Old price: $3,721.66 INC GST
$3,349.49 INC GST
Available for Shipping : 28-Jul-2025
PowerLogic HU250: Head Unit communication gateway with cyber security management
  • Flexible communication gateway to control center and other customer IT applications
  • Cybersecurity management according to IEC 62443-4-2
  • Standard and security-focused protocols
  • Open peer-to-peer communication to support self-healing application
  • Built-in webserver for commissioning and maintenance
  • Embedded IEC 601131-3 PLC for automation design
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Environmental Disclosure
Declaration of conformity
Catalog
User guide
Product Page Link
Product Data Sheet
Head unit communication gateway with cyber security management. It include for communication port: 5 RJ45 for Ethernet, 1 RJ45 for modbus, 1 RJ45 for USB, 1 RJ45 for RS and RS232, and 1 SMA for 3G and 4G. The number of digital inputs is 6 for multi purpose and 2 for remote control. And number of digital outputs is 2 for multi purpose. This product can be clip in DIN rail. Supply voltage can range from 12 to 48 VDC. The degree of protection is IP2x for body and IP4x in the front. It complies with CE certificat. Mechanical dimensions are 140 mm in height, 90 mm in width and 140 mm in length.

Products specifications

Attribute name Attribute value
Main
Device short name HU250
Range PowerLogic
Range of product PowerLogic T300
Product name PowerLogic T300
Complementary
Synchronisation time between inputs 1 ms
Communication service web server remote WAN: , web server local Ethernet: , web server local WiFi:
Software function reports and diagrams, security/authority verification, assistance in commissioning and operating the installation, Operating/Status report, alarm, event log
[Us] rated supply voltage 12...48 V DC +/- 20 %
Memory capacity 16 MB
Number of inputs 2 analog measure temperature, 2 digital remote control, 6 digital multi-purpose conforming to IEC 61131-2 type 3
Communication port protocol IEC 60870-5-101 controlled station, IEC 60870-5-104 controlling/controlled station, IEC 61850-8-1 controlling/controlled station, Modbus serial and TCP client/server, DNP3 serial and TCP master station/outstation
Number of outputs 2 digital (relay) multi-purpose:
Communication port support 3G/4G 1 SMA, RS485/RS232 1 RJ45, RS232/485 Modbus/ASCII 1 RJ45, ETHERNET 4 RJ45
Data recording sequence of event recording, 500000 events, 1 ms time stamps, 4 data logs, event logs
Control type illuminated push-button status:
Time synchronisation protocol GPS, SNTP, NTP
Power consumption in VA 3 VA
Product or component type communication gateway
Programming language SFC (sequential function chart), FBD (function block diagram), LD (ladder), IL (instruction list), ST (structured text), calculation formula
Environment
Mechanical robustness shocks 11 ms 3 pulses in operation conforming to IEC 60068-2-27, bumps 10 gn 16 ms 1000 bumps non energized conforming to IEC 60068-2-29, vibrations 10-2000 Hz 1 gn 10 cycles conforming to IEC 60068-2-6
IP degree of protection IP4X front: conforming to IEC 60529, IP2X body: conforming to IEC 60529
Relative humidity 5-95 % conforming to IEC 60068-2-30
Ambient air temperature for storage -40-85 °C
Fixing mode clip-in (DIN rail)
Electromagnetic compatibility conducted and radiated emissions class A conforming to EN 55022, magnetic field at power frequency - test level: level 5 criteria B conforming to IEC 61000-4-8, surge immunity test - test level: level 3 criteria A conforming to IEC 61000-4-5, electrostatic discharge - test level: level 4 criteria B conforming to IEC 61000-4-2, immunity to voltage dips criteria A conforming to IEC 61000-4-29, radiated radio-frequency electromagnetic field immunity test - test level: level 4 criteria A conforming to IEC 61000-4-3, 100 kHz damped oscillating wave - test level: level 3 criteria A conforming to IEC 61000-4-12, conducted disturbance emission - test level: level 4 criteria A conforming to IEC 61000-4-16, conducted RF disturbances - test level: level 3 criteria A conforming to IEC 61000-4-6, electrical fast transient/burst immunity test - test level: level 4 criteria A conforming to IEC 61000-4-4
User language multi-language
Ambient air temperature for operation -40-70 °C
Height 140 mm
IK degree of protection IK07 conforming to IEC 62262
Operating altitude 2000 m
Depth 140 mm
Width 90 mm
Type of installation outdoor in cabinet, indoor
Net weight 0.55 kg
Standards IEC 60255-27
Product certifications CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.900 cm
Package 1 Width 19.100 cm
Package 1 Length 19.800 cm
Package 1 Weight 765.000 g
Unit Type of Package 2 2
Number of Units in Package 2 9
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 7.277 kg

Related products

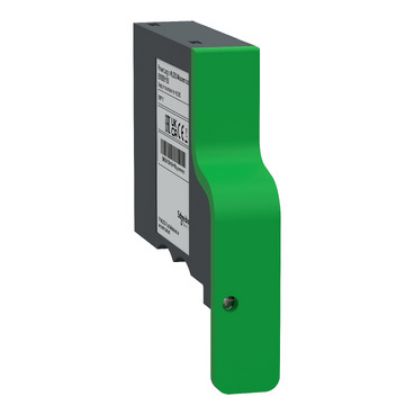

Picture of PowerLogic HU250 empty box for modem connector protection

PowerLogic HU250 empty box for modem connector protection

EMS59150
$115.51 INC GST $128.34 INC GST
View Detail

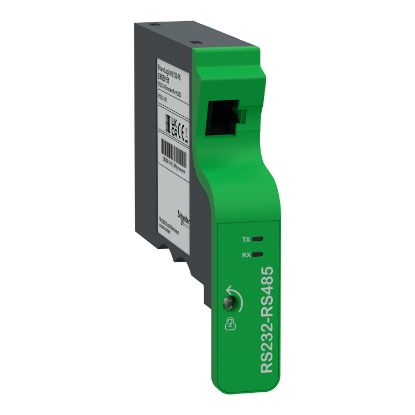

Picture of PowerLogic HU250 RS232/422/485 interface box, RJ45

PowerLogic HU250 RS232/422/485 interface box, RJ45

EMS59151
$759.01 INC GST $843.34 INC GST
View Detail

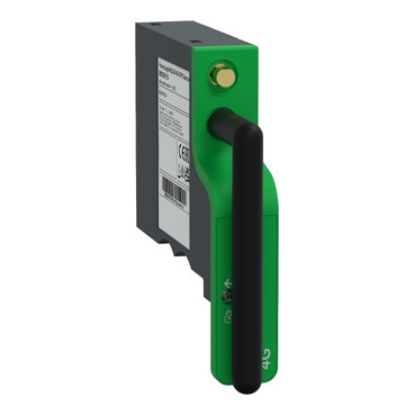

Picture of PowerLogic HU250: 4G modem box with GPS clock synchronization (1 ms), EU standard

PowerLogic HU250: 4G modem box with GPS clock synchronization (1 ms), EU standard

EMS59155
$3,580.51 INC GST $3,978.34 INC GST
View Detail

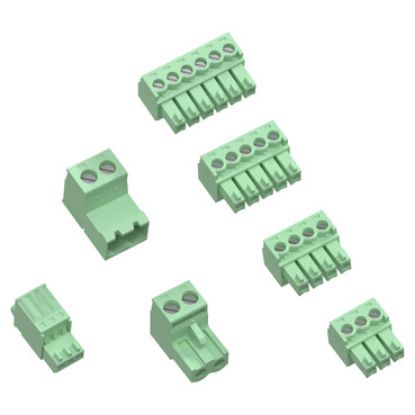

Picture of Set of connectors for PowerLogic HU250, digitals input/output, power, PT100

Set of connectors for PowerLogic HU250, digitals input/output, power, PT100

EMS59010
$66.01 INC GST $73.34 INC GST
View Detail
Picture of PowerLogic ZigBee receiver

PowerLogic ZigBee receiver

EMS59156
$808.51 INC GST $898.34 INC GST
View Detail

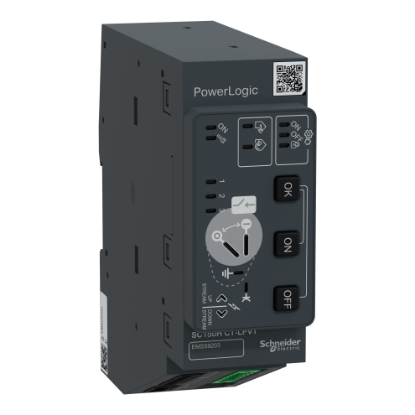

Picture of PowerLogic SC150H CT-LPVT/VT: Horizontal switch controller, 1/5A, LPVT/VT sensors

PowerLogic SC150H CT-LPVT/VT: Horizontal switch controller, 1/5A, LPVT/VT sensors

EMS59203
$2,524.50 INC GST $2,805.00 INC GST
View Detail

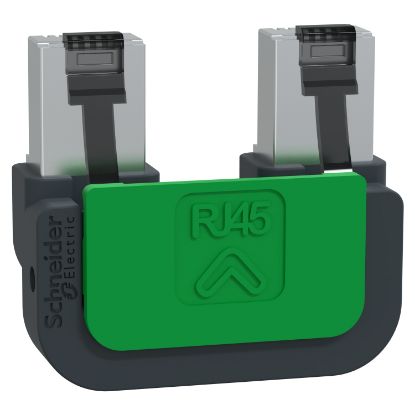

Picture of 10 ethernet jumper for modules LAN PowerLogic T300
