SKU:

157MDF

Clipsal - Mounting Accessories, Wall Box, Metal, Deep Fire Rated

$39.20 INC GST

Qty:

Available for Shipping : 17-Aug-2025

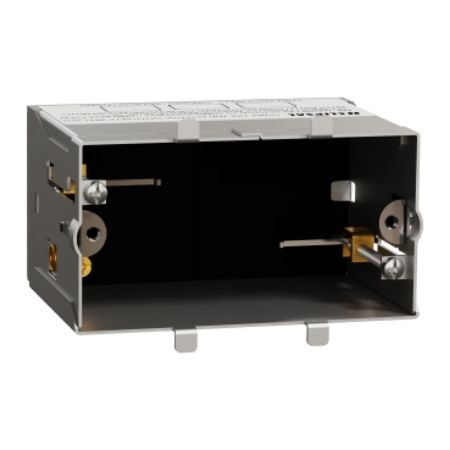

Clipsal - Mounting Accessories, Wall Box, Metal, Deep Fire Rated

Recessed mounts to support a large variety of plate ranges

Can be used in multiple fire-rated plasterboard applications

Repositioned tabs for a better fit

Earthing terminal to earth the wall box (Compliant to AS/NZS 3.7.2.11)

With the acoustic rating of STC50

Depth of 70mm to support electronic devices

Solid surround for easy application of mastic

11mm intumescent material

Be the first to review this product

Manufacturer: Clipsal

Environmental Disclosure

Instruction sheet

Product Page Link

Product Data Sheet

This Clipsal wall box is a deep fire rated mounting accessory. This product can be used in multiple fire rated plasterboard applications. It has an acoustic rating of STC50. The materials are recyclable and environmentally friendly. This wall box has an earth terminal built in. The shape of the product is rectangle and facilitates one 84mm mounting switch or outlet plate. This device enables flush mounting. The dimensions of this indoor unit are (W) 98mm x (H) 53mm x (D) 70mm. The cross-section of the conductor is a maximum of 4mm². The colour of the product is natural and made up of steel material with electro-galvanized surface treatment. It reaches an IP2x degree of protection. This device is compliant with the standards AS/NZS 1530.4 and AS/NZS 60670 2021.

Products specifications

Attribute name	Attribute value
Main
Product brand	Clipsal
Colour	natural
Range	Clipsal
Product or component type	wall box
Complementary
Depth	70 mm external:
Surface treatment	electro-galvanized
Length	98 mm
Number of gangs	1 gang
Device mounting	flush
Shape	rectangular
Width	53 mm
Material	steel
Environment
Standards	AS/NZS 1530.4, AS/NZS 60670:2021
IP degree of protection	IP2X
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	7 cm
Package 1 Width	5.2 cm
Package 1 Length	9.6 cm
Package 1 Weight	230 g
Unit Type of Package 2	2
Number of Units in Package 2	5
Package 2 Height	12.7 cm
Package 2 Width	10.2 cm
Package 2 Length	16.4 cm
Package 2 Weight	1.2 kg
Unit Type of Package 3	3
Number of Units in Package 3	40
Package 3 Height	22.4 cm
Package 3 Width	26.1 cm
Package 3 Length	33.5 cm
Package 3 Weight	9.9 kg
