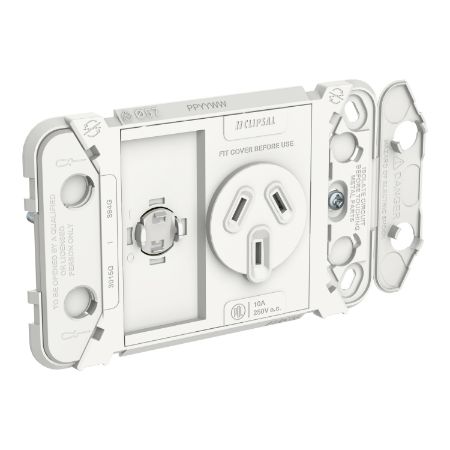

Picture of Clipsal Iconic, Single Switch Power Point Grid, Horizontal Mount, 250V, 10A
SKU:

3015G

Clipsal Iconic, Single Switch Power Point Grid, Horizontal Mount, 250V, 10A

$14.12 INC GST
Available for Shipping : 28-Jul-2025
Clipsal Iconic, Single Switch Power Point Grid, Horizontal Mount, 250V, 10A
Be the first to review this product
Manufacturer: Clipsal
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet
Socket outlet grid for horizontal installations. Single switched socket grid. Suitable for Clipsal Iconic, Iconic Styl, Iconic Essence and Pro Series. Rated current: 10A. Operating voltage 250V a.c. 50Hz. Note: Requires installation by an appropriately licenced electrician.

Products specifications

Attribute name Attribute value
Main
Outlet poles configuration 2P + E with shutter
Device presentation mechanism with fixing frame
Outlet standard Australian
Range Clipsal Iconic
Product or component type switched socket
Complementary
Number of power socket outlets 1
Quantity per set set of 10
Sale per indivisible quantity 1
Wire stripping length 16 mm
Height 71 mm
Connections - terminals 3 screw terminals
Electrical durability 12000 cycles
Number of rocker 1
Material POM (polyoxymethylene): shutter, PP (polypropylene): rocker, PC (polycarbonate): fixing frame
Net weight 0.82 kg
Type of packing polybag
Clamping connection capacity 1 x 2.5...4 x 2.5 mm² for flexible cable(s), 1 x 2.5...4 x 2.5 mm² for stranded cable(s), 1 x 2.5...4 x 2.5 mm² for rigid cable(s)
Range compatibility Clipsal Iconic cover frame
Device mounting flush
Embedding depth 23 mm
Ground lug position straight 180° position
Surface finish matt
Screwdriver shape square drive no 1 (SQ1), Philips No 2
Depth 31 mm
Width 115 mm
Installation direction horizontal
Outlet standard description with earthing contact
Outlet standard deviation Australian/New Zealand
Rated current 10 A at 250 V AC 50 Hz
Fixing mode by screw
Environment
Relative humidity 10-95 %
Product certifications RCM
Ambient air temperature for operation 0-45 °C
Standards AS/NZS 3112
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.5 cm
Package 1 Width 8 cm
Package 1 Length 14 cm
Package 1 Weight 86 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 328 cm
Package 2 Width 106 cm
Package 2 Length 146 cm
Package 2 Weight 860 g
