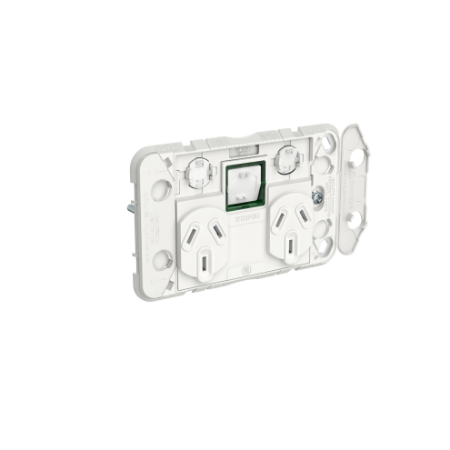

Picture of Clipsal Iconic, Double Switch Power Point Grid with 1 extra switch, Horizontal Mount, 250V, 10A
SKU:

3025XAG

Clipsal Iconic, Double Switch Power Point Grid with 1 extra switch, Horizontal Mount, 250V, 10A

$52.27 INC GST
Available for Shipping : 28-Jul-2025
Clipsal Iconic, Double Switch Power Point Grid with 1 extra switch, Horizontal Mount, 250V, 10A
Be the first to review this product
Manufacturer: Clipsal
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet
The Clipsal Iconic Horizontal Double Power Point Grid with one extra switch allows you to plug in two appliances, while still having a switch to activate lights, a heater, or exhaust fan. 10A, 250V, the Double Power Point grid with extra switch is a classic configuration for bathrooms, kitchens or bedrooms.

Products specifications

Attribute name Attribute value
Main
Outlet standard Australian
Outlet poles configuration 2P + E with shutter
Device presentation mechanism with fixing frame
Range Clipsal Iconic
Product or component type switched socket
Complementary
Ground lug position straight 180° position
Number of power socket outlets 2
Quantity per set set of 10
Sale per indivisible quantity 1
Wire stripping length 16 mm
Surface finish matt
Height 71 mm
Screwdriver shape Philips No 2, square drive no 1 (SQ1)
[Ue] rated operational voltage 230/240 V
Electrical durability 12000 cycles
Depth 36 mm
Number of rocker 2
Width 115 mm
Material POM (polyoxymethylene): shutter, PP (polypropylene): rocker, PC (polycarbonate): fixing frame
Installation direction horizontal
Net weight 0.071 kg
Type of packing polybag
Clamping connection capacity 1 x 2.5...4 x 2.5 mm² for rigid cable(s), 1 x 2.5...4 x 2.5 mm² for flexible cable(s), 1 x 2.5...4 x 2.5 mm² for stranded cable(s)
Outlet standard description with earthing contact
Outlet standard deviation Australian/New Zealand
Rated current 10 A at 230/240 V AC 50 Hz
Fixing mode by screw
Range compatibility Clipsal Iconic cover frame
Number of gangs 1 gang
Device mounting flush
Environment
Ambient air temperature for storage 0-60 °C
Relative humidity 10-95 %
Product certifications RCM
Ambient air temperature for operation 0-45 °C
Standards AS/NZS 3133, AS/NZS 60669.1, AS/NZS 3112
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3 cm
Package 1 Width 7 cm
Package 1 Length 16 cm
Package 1 Weight 108 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 150 cm
Package 2 Width 102 cm
Package 2 Length 328 cm
Package 2 Weight 1.19 kg
