SKU:

BMXDDM3202K

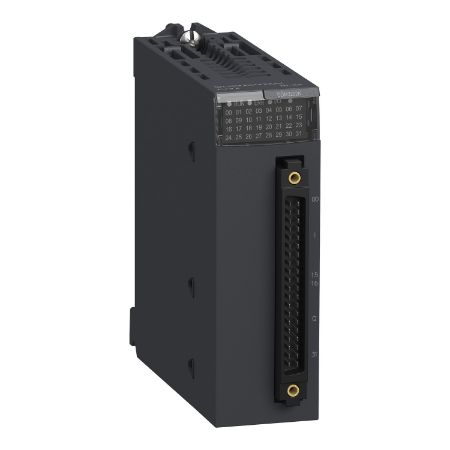

discrete mixed IO module, Modicon X80, 16 inputs, 16 outputs, 24V DC positive

$1,975.93 INC GST

Qty:

Available for Shipping : 26-Aug-2025

Product Selector

discrete mixed IO module, Modicon X80, 16 inputs, 16 outputs, 24V DC positive

Be the first to review this product

Manufacturer: Schneider Electric

Catalog

Declaration of conformity

User guide

Circularity Profile

Environmental Disclosure

Product Page Link

Product Data Sheet

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete I/O module has 16 input channels, 16 solid state output channels. It is a discrete I/O module with a discrete input/output voltage of 24V DC, an output current of 0.1A, a maximum power dissipation of 4W and current consumption of 104mA at 24V DC, 166mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It offers 432904 hours of MTBF. It is an IP20 rated product. It weighs 0.11kg. It is suitable for medium to large process applications. This product is certified by Merchant Navy, RCM, CSA, EAC, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name	Attribute value
Main
Discrete output current	0.1 A
Discrete output voltage	24 V 19...30 V DC
Discrete input voltage	24 V DC, discrete input logic: positive
Range of product	Modicon X80
Discrete output type	solid state
Discrete input current	2.5 mA
Discrete input number	16
Input type	current sink (logic positive)
Product or component type	discrete I/O module
Discrete output number	16
Complementary
Response time on output	1.2 ms
DC maximum filtering time	7 ms
Output overload protection	with current limiter, with electronic circuit breaker 0.125 A < Id < 0.185 A
Output short-circuit protection	with 2 A external fuse
Output overvoltage protection	with transil diode
Current state 0 guaranteed	<= 0.5 mA
Typical current consumption	125 mA at 3.3 V DC, 69 mA at 24 V DC
Input compatibility	with 2-wire/3-wire proximity sensors conforming to IEC 61131-2 Type 1, with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2
Power dissipation in W	4 W
Protection type	reverse polarity protection on output, reverse polarity protection on input, overvoltage protection on output, 1 external fuse per group of input channel0.5 A fast blow
Maximum voltage drop	<1.5 V at state 1
Voltage detection threshold	> 18 V DC sensor OK, > 18 V DC preactuator OK, < 14 V DC sensor fault, < 14 V DC preactuator fault
Current per channel	0.125 A
Status LED	1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN)
Maximum overload time	15 ms
Switching frequency	0.5/LI² Hz
Maximum current per module	3.2 A
MTBF reliability	430000 H
Reverse polarity protection	reverse mounted diode
Maximum tungsten load	1.2 W
Input impedance	9600 Ohm
DC typical filtering time	4 ms
Paralleling of outputs	yes : 3 maximum
Load impedance ohmic	<= 220 Ohm
Maximum leakage current	0.1 mA at state 0
Net weight	0.11 kg
Current state 1 guaranteed	>= 2 mA
Insulation resistance	> 10 MOhm 500 V DC
Current consumption	<= 166 mA at 3.3 V DC, <= 104 mA at 24 V DC
Voltage range	19...30 V
Environment
IP degree of protection	IP20
Relative humidity	5-95 % at 55-55 °C without condensation
Ambient air temperature for storage	-40-85 °C
Directives	2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation	0-60 °C
Operating altitude	2000...5000 m with derating factor, 0...2000 m
Vibration resistance	3 gn
Dielectric strength	500 V DC 1 minute, between group of inputs and outputs, 1500 V AC at 50/60 Hz 1 minute, primary/secondary, 1500 V AC at 50/60 Hz 1 minute, output/internal logic, 1500 V AC at 50/60 Hz 1 minute, output/ground
Shock resistance	30 gn
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	5.500 cm
Package 1 Width	11.500 cm
Package 1 Length	11.700 cm
Package 1 Weight	136.000 g
Unit Type of Package 2	2
Number of Units in Package 2	15
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	2.355 kg
