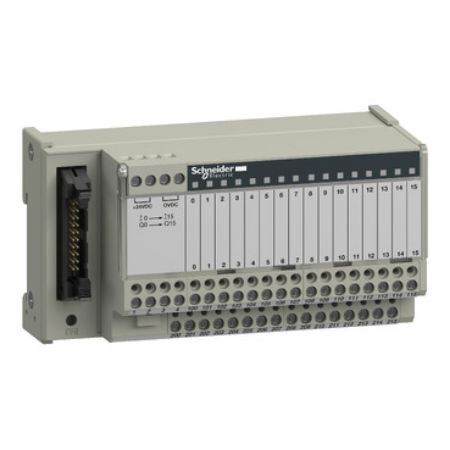

Picture of passive connection sub-base ABE7 - 16 inputs or outputs - Led - isolator
Picture of passive connection sub-base ABE7 - 16 inputs or outputs - Led - isolator
Picture of passive connection sub-base ABE7 - 16 inputs or outputs - Led - isolator
Picture of passive connection sub-base ABE7 - 16 inputs or outputs - Led - isolator
Picture of passive connection sub-base ABE7 - 16 inputs or outputs - Led - isolator
Picture of passive connection sub-base ABE7 - 16 inputs or outputs - Led - isolator
Picture of passive connection sub-base ABE7 - 16 inputs or outputs - Led - isolator
Picture of passive connection sub-base ABE7 - 16 inputs or outputs - Led - isolator
SKU:

ABE7H16S21

passive connection sub-base ABE7 - 16 inputs or outputs - Led - isolator

$738.04 INC GST
Available for Shipping : 24-Jul-2025
passive connection sub-base ABE7 - 16 inputs or outputs - Led - isolator
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Instruction sheet
Environmental Disclosure
Declaration of conformity
Circularity Profile
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This passive connection sub-base provides 16 modularity input/output channels and an isolator. It has 2 terminals per channel. It is a sub base with a maximum supply current of 1.8A and a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. Its dimension is 125mm (Width). It weighs 0.375kg. It is suitable for all types of industrial applications. This product is certified by GL, BV, CSA, UL, DNV and LROS. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Products specifications

Attribute name Attribute value
Main
Sub-base type I/O sub-base
Number of channels 16
Range of product Modicon ABE7
[Us] rated supply voltage 19...30 V conforming to IEC 61131-2
Channel additional information 1 switch disconnector per channel
Connections - terminals screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid, screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid, screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end
Number of terminal per channel 2
Product or component type passive discrete I/O sub-base
Complementary
Voltage drop on power supply fuse 0.3 V
Maximum supply current 1.8 A
Tightening torque 0.6 N.m with flat Ø 3.5 mm screwdriver
Polarity distribution 0 V or 24 V
Connector type HE-10
Fixing mode by screws (solid plate with fixing kit), by clips (35 mm symmetrical DIN rail)
Maximum current per output common 1.8 A
Installation category II conforming to IEC 60664-1
Status LED 1 LED (green) power ON, 1 LED per channel (green) channel status
Current per channel 0.5 A
Width 125 mm
Supply circuit type DC
Net weight 0.375 kg
[Ui] rated insulation voltage 2000 V
Number of horizontal rows 2
Short-circuit protection 2 A internal fuse, 5 x 20 mm, fast blow (PLC end)
Pin number 20 pins
Environment
Resistance to fast transients 2 kV level 3 conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV (air) level 3 conforming to IEC 61000-4-2, 4 kV (contact) level 3 conforming to IEC 61000-4-2
Ambient air temperature for storage -40-80 °C conforming to IEC 61131-2
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP2X conforming to IEC 60529
Ambient air temperature for operation -5-60 °C conforming to IEC 61131-2
Resistance to incandescent wire 750 °C conforming to IEC 60695-2-11
Vibration resistance 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Resistance to radiated fields 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3
Product certifications EAC, DNV, UL, CSA, GL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.100 cm
Package 1 Width 8.200 cm
Package 1 Length 13.700 cm
Package 1 Weight 358.000 g
Unit Type of Package 2 2
Number of Units in Package 2 9
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.562 kg
