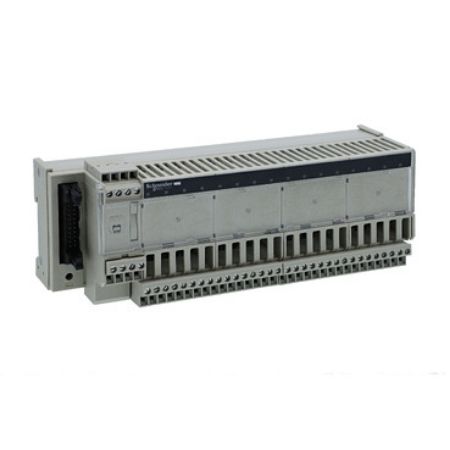

Picture of sub-base - soldered solid state output relay ABE7 - 16 inputs - 24 V DC
SKU:

ABE7S16E2B1

sub-base - soldered solid state output relay ABE7 - 16 inputs - 24 V DC

$1,418.34 INC GST
Available for Shipping : 12-Aug-2025
sub-base - soldered solid state output relay ABE7 - 16 inputs - 24 V DC
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Brochure
Instruction sheet
Declaration of conformity
Circularity Profile
Product Page Link
Product Data Sheet
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. The sub-base with soldered solid state output relay, provides 16 channels. It has 2 terminals per channel. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a current of 0.012A per channel. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.37kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 24 V DC (sensor end), 24 V DC (PLC end)
Number of channels 16
Connections - terminals screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2-2.5 mm² (AWG 24...AWG 14) solid, screw type terminals, 2 x 0.09...2 x 0.75 mm², 0.09-0.75 mm² (AWG 28...AWG 20) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² (AWG 26...AWG 14) flexible without cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² (AWG 26...AWG 12) solid, screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.09-1.5 mm² (AWG 28...AWG 16) flexible with cable end
Number of terminal per channel 2
Product or component type solid state input relay sub-base
Range of product Modicon ABE7
Complementary
Supply voltage limits 19-30 V DC (PLC end) conforming to IEC 61131-2
Tightening torque 0.6 N.m with flat Ø 3.5 mm screwdriver
Voltage state 1 guaranteed >= 15 V for sensor end
Switching frequency <= 1000 Hz duty cycle: 50 %
[Uimp] rated impulse withstand voltage 2.5 kV conforming to IEC 60947-1
Fixing mode by screws (solid plate with fixing kit), by clips (35 mm symmetrical DIN rail)
Net weight 0.37 kg
Current state 1 guaranteed >= 2 mA (sensor end)
[Ui] rated insulation voltage 2000 V
Response time <= 0.4 ms from state 1 to 0, <= 0.05 ms from state 0 to 1
Protection type adjustable by external fuse fast blow sensor end, internal fuse 1 A 5 x 20 mm fast blow PLC end
Installation category II conforming to IEC 60664-1
Current per channel 0.012 A
Maximum switching current 15 mA (PLC end)
Terminal block type removable
Isolation PLC/operative part yes
Minimum switching current 1 mA for PLC end
Environment
Resistance to fast transients 2 kV level 3 conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV (air) level 3 conforming to IEC 61000-4-2, 4 kV (contact) level 3 conforming to IEC 61000-4-2
Ambient air temperature for storage -40-80 °C conforming to IEC 61131-2
Resistance to incandescent wire 750 °C conforming to IEC 60695-2-11
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP2X conforming to IEC 60529
Vibration resistance 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Dielectric strength 2000 V at 50/60 Hz conforming to IEC 60947-1
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation -5-60 °C conforming to IEC 61131-2
Resistance to radiated fields 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3
Standards IEC 61131-2 Type 1
Product certifications EAC, GL, CSA, DNV, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 8.3 cm
Package 1 Length 21.0 cm
Package 1 Weight 438.0 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 7.478 kg
