SKU:

BMXDDM16025H

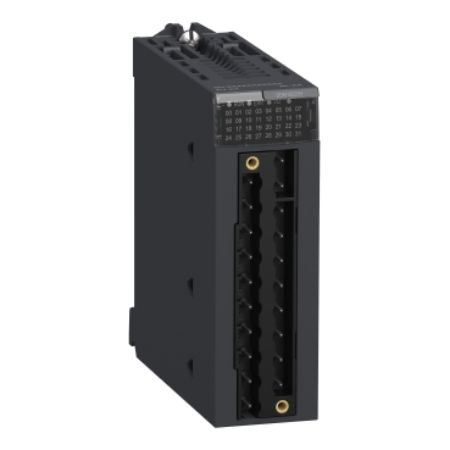

discrete I/O module X80 - 8 I - 24 V DC - 8 O - relay - severe

$1,510.41 INC GST
Available for Shipping : 27-Aug-2025
Product Selector
discrete I/O module X80 - 8 I - 24 V DC - 8 O - relay - severe
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
User guide
Circularity Profile
Declaration of conformity
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
This discrete mixed I/O relay module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 8 input channels and 8 output channels and it is supplied with 24V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 940097 hours of MTBF. This discrete module has a weight of 0.135kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 type 3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.

Products specifications

Attribute name Attribute value
Main
Discrete output current 2000 mA
Discrete output voltage 24...240 V 19...264 V AC, 24 V 19...30 V DC
Discrete input voltage 24 V DC, discrete input logic: positive
Range of product Modicon X80
Discrete output type relay
Discrete input current 3.5 mA
Product specific application for severe environments
Discrete input number 8
Input type current sink (logic positive)
Product or component type discrete I/O module
Discrete output number 8
Complementary
Response time on output <= 10 ms activation, <= 8 ms deactivation
DC maximum filtering time 7 ms
Mechanical durability 20000000 cycles
Current state 0 guaranteed <= 1.5 mA
Typical current consumption 79 mA at 3.3 V DC
Electrical durability DC-13: 300000 cycles at 7.2 W 24 V at -25-60 °C, DC-13: 300000 cycles at 3.6 W 24 V at 70-70 °C, AC-15: 300000 cycles at 60 VA 200 V at -25-60 °C (load factor 0.35 ), AC-15: 300000 cycles at 36 VA 240 V at -25-60 °C (load factor 0.35 ), AC-15: 300000 cycles at 30 VA 200 V at 70-70 °C (load factor 0.35 ), AC-15: 300000 cycles at 18 VA 240 V at 70-70 °C (load factor 0.35 ), AC-14: 300000 cycles at 80 VA 200 V at -25-60 °C (load factor 0.7 ), AC-14: 300000 cycles at 72 VA 240 V at -25-60 °C (load factor 0.7 ), AC-14: 300000 cycles at 40 VA 200 V at 70-70 °C (load factor 0.7 ), AC-14: 300000 cycles at 36 VA 240 V at 70-70 °C (load factor 0.7 ), DC-13: 100000 cycles at 24 W 24 V at -25-60 °C, DC-13: 100000 cycles at 12 W 24 V at 70-70 °C, AC-15: 100000 cycles at 60 VA 240 V at 70-70 °C (load factor 0.35 ), AC-15: 100000 cycles at 200 VA 200 V at -25-60 °C (load factor 0.35 ), AC-15: 100000 cycles at 120 VA 240 V at -25-60 °C (load factor 0.35 ), AC-15: 100000 cycles at 100 VA 200 V at 70-70 °C (load factor 0.35 ), AC-14: 100000 cycles at 300 VA 200 V at -25-60 °C (load factor 0.7 ), AC-14: 100000 cycles at 240 VA 240 V at -25-60 °C (load factor 0.7 ), AC-14: 100000 cycles at 150 VA 200 V at 70-70 °C (load factor 0.7 ), AC-14: 100000 cycles at 120 VA 240 V at 70-70 °C (load factor 0.7 )
Input compatibility with 2-wire/3-wire proximity sensors conforming to IEC 61131-2 type 3, with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2
Power dissipation in W 3.1 W
Protection type 1 external fuse per output channel or group of output channel fast blow,  reverse polarity protection on input,  1 external fuse per group of input channel0.5 A fast blow
Voltage detection threshold > 18 V DC sensor OK, < 14 V DC sensor fault
Status LED 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN)
Switching frequency 1 Hz
MTBF reliability 940000 H
Input impedance 6800 Ohm
DC typical filtering time 4 ms
Paralleling of inputs no
Maximum switching voltage 264 V AC, 125 V DC
Net weight 0.135 kg
Current state 1 guaranteed >= 2 mA
Insulation resistance > 10 MOhm 500 V DC
Minimum switching current 1 mA 5 V DC
Voltage range 21.1...29.0 V 70 °C, 19...30 V 60 °C
Environment
IP degree of protection IP20
Protective treatment conformal coating
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation -25-70 °C
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Vibration resistance 3 gn
Dielectric strength 500 V DC 1 minute, between group of I/O, 2830 V AC at 50/60 Hz 1 minute, output relay, 1500 V AC at 50/60 Hz 1 minute, primary/secondary
Environmental characteristic fungal spore resistant class 3B2, mold growth resistant class 3B2, salt resistant level 2, sand resistant class 3S4, dust resistant class 3S4, gas resistant class 3C4, gas resistant class Gx
Shock resistance 30 gn
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 11.000 cm
Package 1 Length 12.000 cm
Package 1 Weight 168.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.625 kg
