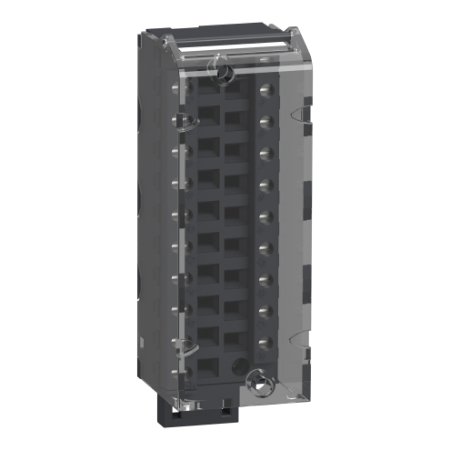

Picture of terminal block, Modicon X80, 20-pin removable caged, 1 x 0.34..1mm2
Picture of terminal block, Modicon X80, 20-pin removable caged, 1 x 0.34..1mm2
Picture of terminal block, Modicon X80, 20-pin removable caged, 1 x 0.34..1mm2
Picture of terminal block, Modicon X80, 20-pin removable caged, 1 x 0.34..1mm2
Picture of terminal block, Modicon X80, 20-pin removable caged, 1 x 0.34..1mm2
Picture of terminal block, Modicon X80, 20-pin removable caged, 1 x 0.34..1mm2
Picture of terminal block, Modicon X80, 20-pin removable caged, 1 x 0.34..1mm2
Picture of terminal block, Modicon X80, 20-pin removable caged, 1 x 0.34..1mm2
SKU:

BMXFTB2000

terminal block, Modicon X80, 20-pin removable caged, 1 x 0.34..1mm2

$101.07 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
terminal block, Modicon X80, 20-pin removable caged, 1 x 0.34..1mm2
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Catalogue
User guide
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This removable connection block is an accessory of programmable automation controllers. This product is robust, high quality and based on the latest innovative technology. It has 20 removable cage clamp terminals with 1 x 0.34mm² to 1mm² cross section. It weighs 0.093kg. It is suitable for medium to large process applications. This removable connection block is ideal for module with 20-pin removable terminal block. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Number of terminals 20 removable cage clamp terminal block
Accessory / separate part destination for module with 20-pin removable terminal block
Accessory / separate part type removable connection block
Range of product Modicon X80
Complementary
Net weight 0.093 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.500 cm
Package 1 Width 4.500 cm
Package 1 Length 11.000 cm
Package 1 Weight 109.000 g
Unit Type of Package 2 2
Number of Units in Package 2 60
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.941 kg
Unit Type of Package 3 3
Number of Units in Package 3 960
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 119.056 kg
