Picture of cord set, Modicon M340, 20-way terminal, one end flying leads, 3m
SKU:

BMXFTW301

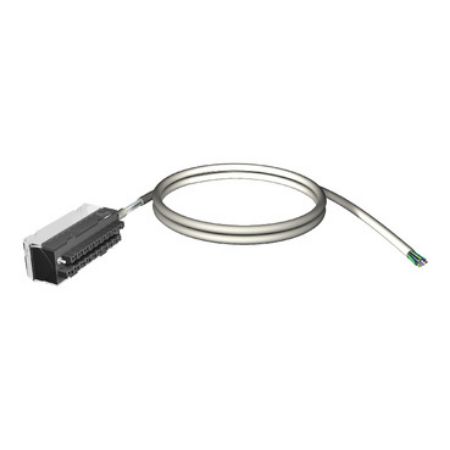

cord set, Modicon M340, 20-way terminal, one end flying leads, 3m

$149.27 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
cord set, Modicon M340, 20-way terminal, one end flying leads, 3m
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Catalog
Circularity Profile
Product Page Link
Product Data Sheet
This preassembled cordset is part of the Modicon X80 modules. It is compatible with 16-channel I/O modules with removable terminal block. It enables the connection between the I/O of modules with 20-way removable terminal block and the sensors, preactuators. It is equipped with one 20-way spring-type removable terminal block and one end with color-coded flying leads. It is 3 meters long.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination for I/O module with removable terminal block
Accessory / separate part type preformed cordset
Cable length 3 m
Accessory / separate part designation preformed cordset with one end with flying leads
Range of product Modicon X80
Electrical connection 1 removable terminal block 20 ways, 1 end with color-coded flying leads conforming to DIN 47100
Number of cables 1
Complementary
Total number of wires 20
Net weight 0.85 kg
Wire section 0.324 mm²
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.600 cm
Package 1 Width 22.000 cm
Package 1 Length 23.000 cm
Package 1 Weight 492.000 g
Unit Type of Package 2 2
Number of Units in Package 2 9
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.713 kg
Unit Type of Package 3 3
Number of Units in Package 3 144
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 84.548 kg
