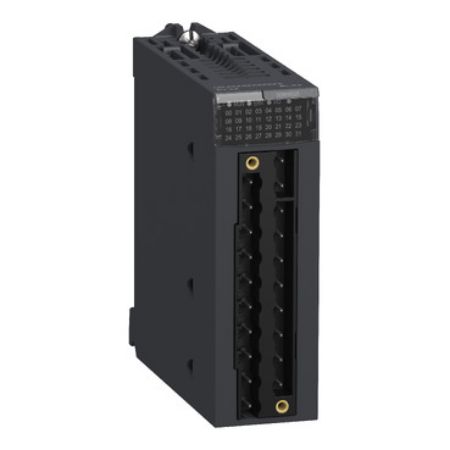

Picture of discrete mixed IO module, Modicon X80, 8 inputs, 24V DC, 8 relay outputs, 24 to 240V AC positive
Picture of discrete mixed IO module, Modicon X80, 8 inputs, 24V DC, 8 relay outputs, 24 to 240V AC positive
Picture of discrete mixed IO module, Modicon X80, 8 inputs, 24V DC, 8 relay outputs, 24 to 240V AC positive
Picture of discrete mixed IO module, Modicon X80, 8 inputs, 24V DC, 8 relay outputs, 24 to 240V AC positive
Picture of discrete mixed IO module, Modicon X80, 8 inputs, 24V DC, 8 relay outputs, 24 to 240V AC positive
Picture of discrete mixed IO module, Modicon X80, 8 inputs, 24V DC, 8 relay outputs, 24 to 240V AC positive
Picture of discrete mixed IO module, Modicon X80, 8 inputs, 24V DC, 8 relay outputs, 24 to 240V AC positive
Picture of discrete mixed IO module, Modicon X80, 8 inputs, 24V DC, 8 relay outputs, 24 to 240V AC positive
SKU:

BMXDDM16025

discrete mixed IO module, Modicon X80, 8 inputs, 24V DC, 8 relay outputs, 24 to 240V AC positive

$1,147.36 INC GST
Available for Shipping : 26-Aug-2025
Product Selector
discrete mixed IO module, Modicon X80, 8 inputs, 24V DC, 8 relay outputs, 24 to 240V AC positive
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
User guide
Declaration of conformity
Circularity Profile
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete I/O module has 8 input channels, 8 relay output channels. It is a discrete I/O module with a discrete input voltage of 24V DC, an output voltage of 24V DC, 24V to 240V AC, 10V to 264V AC, an output current of 2A, a maximum power dissipation of 3.1W and current consumption of 104mA at 24V DC. This product is robust, high quality and based on the latest innovative technology. It offers 912167 hours of MTBF. It is an IP20 rated product. It weighs 0.135kg. It is suitable for medium to large process applications. This product is certified by Merchant Navy, RCM, CSA, EAC, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Products specifications

Attribute name Attribute value
Main
Discrete output current 2000 mA
Discrete output voltage 24...240 V 19...264 V AC, 24 V 19...30 V DC
Discrete input voltage 24 V DC, discrete input logic: positive
Range of product Modicon X80
Discrete output type relay
Discrete input current 3.5 mA
Discrete input number 8
Input type current sink (logic positive)
Product or component type discrete I/O module
Discrete output number 8
Complementary
Response time on output <= 10 ms activation, <= 8 ms deactivation
DC maximum filtering time 7 ms
Mechanical durability 20000000 cycles
Current state 0 guaranteed <= 1.5 mA
Typical current consumption 79 mA at 3.3 V DC
Electrical durability DC-13: 300000 cycles at 7.2 W 24 V, AC-15: 300000 cycles at 60 VA 200 V (load factor 0.35 ), AC-15: 300000 cycles at 36 VA 240 V (load factor 0.35 ), AC-14: 300000 cycles at 80 VA 200 V (load factor 0.7 ), AC-14: 300000 cycles at 72 VA 240 V (load factor 0.7 ), DC-13: 100000 cycles at 24 W 24 V, AC-15: 100000 cycles at 200 VA 200 V (load factor 0.35 ), AC-15: 100000 cycles at 120 VA 240 V (load factor 0.35 ), AC-14: 100000 cycles at 300 VA 200 V (load factor 0.7 ), AC-14: 100000 cycles at 240 VA 240 V (load factor 0.7 )
Input compatibility with 2-wire/3-wire proximity sensors conforming to IEC 61131-2 type 3, with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2
Power dissipation in W 3.1 W
Protection type 1 external fuse per output channel or group of output channel fast blow,  reverse polarity protection on input,  1 external fuse per group of input channel0.5 A fast blow
Voltage detection threshold > 18 V DC sensor OK, < 14 V DC sensor fault
Status LED 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN)
Switching frequency 1 Hz
MTBF reliability 940000 H
Input impedance 6800 Ohm
DC typical filtering time 4 ms
Paralleling of inputs no
Maximum switching voltage 264 V AC, 125 V DC
Net weight 0.135 kg
Current state 1 guaranteed >= 2 mA
Insulation resistance > 10 MOhm 500 V DC
Minimum switching current 1 mA 5 V DC
Voltage range 19...30 V
Environment
IP degree of protection IP20
Relative humidity 5-95 % at 55-55 °C without condensation
Ambient air temperature for storage -40-85 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Ambient air temperature for operation 0-60 °C
Operating altitude 2000...5000 m with derating factor, 0...2000 m
Vibration resistance 3 gn
Dielectric strength 500 V DC 1 minute, between group of I/O, 2830 V AC at 50/60 Hz 1 minute, output relay, 1500 V AC at 50/60 Hz 1 minute, primary/secondary
Shock resistance 30 gn
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.100 cm
Package 1 Width 11.600 cm
Package 1 Length 11.800 cm
Package 1 Weight 159.000 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.760 kg

Related products

terminal block, Modicon X80, 20-pin removable spring, 1 x 0.34..1mm2

BMXFTB2020
$107.15 INC GST
View Detail

terminal block, Modicon X80, 20-pin removable caged, 1 x 0.34..1mm2

BMXFTB2000
$101.07 INC GST
View Detail

terminal block, Modicon X80, 20-pin removable screw clamp, 1 or 2 x 0.34..1.5mm2

BMXFTB2010
$130.04 INC GST
View Detail
Picture of cord set, Modicon M340, 20-way terminal, one end flying leads, 10m

cord set, Modicon M340, 20-way terminal, one end flying leads, 10m

BMXFTW1001
$406.70 INC GST
View Detail

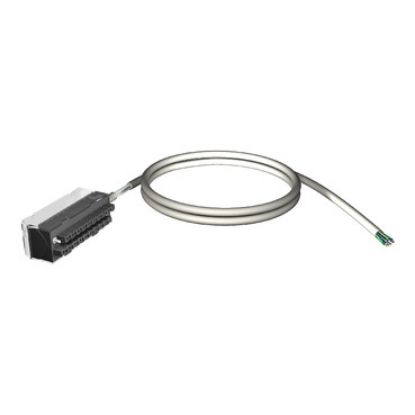

Picture of cord set, Modicon M340, 20-way terminal, one end flying leads, 3m
