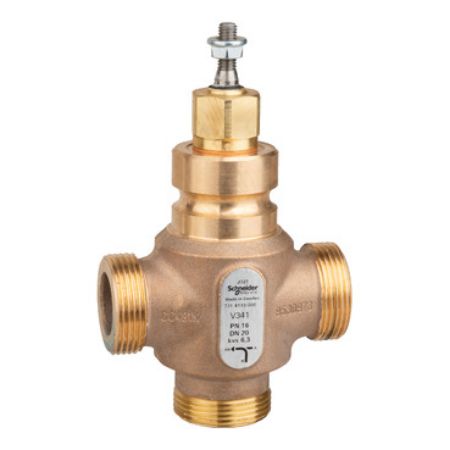

Picture of Venta V341 Globe Valve, 3-Way, PN16, G 1-1/4 External Thread, DN20, Kvs 6.3, Bronze Body, Stainless Steel Trim.
SKU:

7314133000

Venta V341 Globe Valve, 3-Way, PN16, G 1-1/4 External Thread, DN20, Kvs 6.3, Bronze Body, Stainless Steel Trim.

$499.68 INC GST
Available for Shipping : 24-Jul-2025
Venta V341 Globe Valve, 3-Way, PN16, G 1-1/4 External Thread, DN20, Kvs 6.3, Bronze Body, Stainless Steel Trim.
  • Self cleaning crown plug design
  • Exceptional control of low flows
  • Bronze body and stainless trim provide a very long life
  • Replacement gland kit ensures a long service life
  • U Bolt Actuator mounting accepts MG350, M310, M400, M800, M1500, M700 SR and MG900 SR actuators
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Product Page Link
Product Data Sheet
The V341 is an externally threaded 3-way bronze globe valve with stainless steel trim designed for demanding heating and cooling applications. The valve uses a crown plug for precise fluid control with a very high rangeability. Stainless Steel plug and seat provides a high pressure differential capability and a low leakage. The crown plug provides precise fluid control with a rangeability of 1:1 and is of a self cleaning design for reliable operation. Valve size: DN2, G External, Flow capacity, Kvs: 6.3 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 6 Kpa. EPDM seals provide a working temperature range of -2 °C to + 15 °C, the soft seat seal ensures a tight close off with no leakage. 2 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). G1-1/4 External (Male) Connection.
