SKU:

8800231030

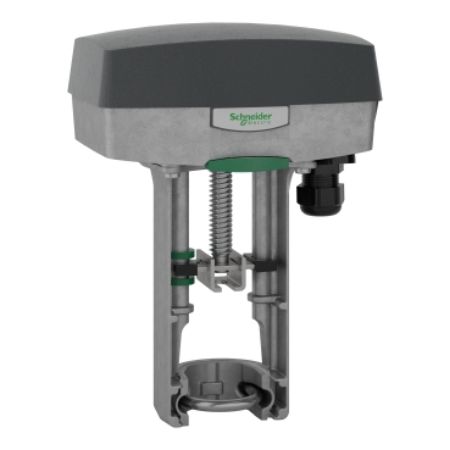

SpaceLogic M400-S2 Actuator, Non-Spring Return, 24Vac/dc, 400N, 2 x SPDT Aux Relay, IP54

$1,100.42 INC GST

Qty:

Available for Shipping : 01-Sep-2025

SpaceLogic M400-S2 Actuator, Non-Spring Return, 24Vac/dc, 400N, 2 x SPDT Aux Relay, IP54

Field selectable configuration

2-10V position feedback as standard

Aux end switch relays (2 x SPDT) fitted as standard

Manual override operation automatically cuts power to the PCBA

Zero point check upon power interruption

Replaceable circuit board

High resolution / positional accuracy

one touch stroke calibration

Selectable input signals: ..1 Vdc, 2..1 Vdc, ..5 Vdc, 2-6 Vdc, 5-1 Vdc, 6-1 Vdc

Flow curve adaptation from EQ to Linear

Be the first to review this product

Manufacturer: Schneider Electric

Declaration of conformity

Catalog

Instruction sheet

Environmental Disclosure

Circularity Profile

Product Page Link

Product Data Sheet

The SpaceLogic M400 S2 is an actuators for the control of 2-way and 3-way globe valves. It has a very fine resolution PCBA board which provides good rangeability of the valve. The manual override allows the actuator to be overriden and valve position adjusted without disconnecting the power supply. It may be configured for different flow characteristics, inverse signal or sequence control. Supply voltage: 24 Vac +25% / -35%. Analog Control Input selectable Voltages: …1 V, 2…1 v, …5 V, 5…1 V, 2…6 V, 6…1 V. Force: 4 N, IP 54 Protection class. S2 Output - Auxiliary end point switch (optional): 2 x SPDT. EMC 214/3/EU, LVD 214/35/EU. Conduit connection 3 x M2 screwed.

Products specifications

Attribute name	Attribute value
Main
Force N	400 N
Switch function	2 SPDT
IP degree of protection	IP54
Relative humidity	0-90 %
Ambient air temperature for storage	-10-50 °C
[Us] rated supply voltage	24 V AC/DC
Electrical insulation class	class II
Product destination	globe valve
Control type	automatic reset
Transformer rated power in VA	30 VA
Stroke length	9-32 mm
Analogue input range	0...10 V DC
Ambient air temperature for operation	-10-50 °C
Hold-in power consumption in VA	7-7 VA AC
Hold-in power consumption in W	4-4 W
Stroke running time	15 s
Motor type	brushless DC motor
Duty cycle	20 %
Product or component type	actuator
Power consumption in VA	7 VA AC
Targeted region	Australia., Asia Pacific., Europe
Force lbf	90 lbf
Actuator	linear

Actuator model	M400
Control signal	proportional/modulating, floating
Conduit connection	gland for 6-9 mm O/D cable, 3 x M20
Leads and connections	terminal block
Actuator type	electric
Actuator product range	SpaceLogic
Actuator product series	M400
Power loss return	non-spring return
Feedback signal	2...10 V DC
Stroke auto calibration	True
Position indicator	Stroke indicator on yoke
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	25.8 cm
Package 1 Width	17.8 cm
Package 1 Length	13.6 cm
Package 1 Weight	1.92 kg
