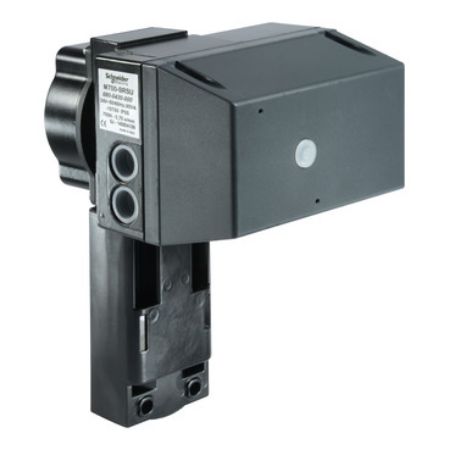

Picture of SpaceLogic M700-SRSU Actuator for Globe Valves, Multi-Signal Control, Spring Return Stem Up, 24Vac/dc, Terminal Block, 700N, IP54
SKU:

8800430000

SpaceLogic M700-SRSU Actuator for Globe Valves, Multi-Signal Control, Spring Return Stem Up, 24Vac/dc, Terminal Block, 700N, IP54

$1,960.75 INC GST
Available for Shipping : 01-Sep-2025
SpaceLogic M700-SRSU Actuator for Globe Valves, Multi-Signal Control, Spring Return Stem Up, 24Vac/dc, Terminal Block, 700N, IP54
  • Field selectable configuration
  • 2-10V position feedback as standard
  • Aux end switch relays (2 x SPDT) available as an optional accessory
  • Spring Return Stem Up Function
  • Zero point check upon power interruption
  • Replaceable circuit board
  • High resolution / positional accuracy
  • one touch stroke calibration
  • Selectable input signals: 0..10 Vdc, 2..10 Vdc, 0..5 Vdc, 2-6 Vdc, 5-10 Vdc, 6-10 Vdc
  • Flow curve adaptation from EQ to Linear
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalog
Instruction sheet
Environmental Disclosure
Circularity Profile
Product Page Link
Product Data Sheet
The SpaceLogic M700 is a spring return electro-mechanical actuator for the control of two-way and three-way globe valves. The electronic circuitry of the actuator ensures that the running time is the same, regardless of the stroke of the valve in question. The actuators is easy to mount and connect. Modulating control signal or increase/decrease signal, Stem Up spring action (the stem is pulled up when power off). Supply voltage: 24 Vax +25% / -3%. Analog Control Input selectable Voltages: …1 V, 2…1 v, …5 V, 5…1 V, 2…6 V, 6…1 V. Force: 7 N, IP 54 Protection class. Stroke: 9-52 mm When an end position adjustment is made, Forta closes the valve and opens it fully.

Products specifications

Attribute name Attribute value
Main
Force N 700 N
Switch function 2 SPDT (optional)
IP degree of protection IP54
Relative humidity 0-90 %
Ambient air temperature for storage -10-50 °C
[Us] rated supply voltage 24 V AC/DC
Electrical insulation class class II
Product destination globe valve
Stroke running time noload retract 95 s
Control type automatic reset
Transformer rated power in VA 50 VA
Stroke length 9-52 mm
Analogue input range 0...10 V DC
Ambient air temperature for operation -10-50 °C
Hold-in power consumption in VA 30-30 VA AC
Stroke running time 15 s
Motor type brushless DC motor
Duty cycle 20 %
Product or component type actuator
Power consumption in VA 30 VA AC
Targeted region Australia., Asia Pacific., Europe
Force lbf 157 lbf
Actuator linear
Actuator model M700
Control signal proportional/modulating, floating
Conduit connection 2 x 20 mm conduit hole
Leads and connections terminal block
Actuator type electric
Actuator product range SpaceLogic
Actuator product series M700
Power loss return spring return
Feedback signal 2...10 V DC
Stroke auto calibration True
Position indicator Stroke indicator on yoke
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 23.2 cm
Package 1 Width 22.8 cm
Package 1 Length 31.2 cm
Package 1 Weight 4.88 kg
