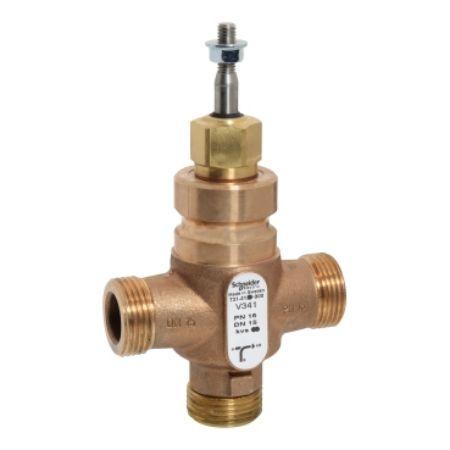

Picture of Venta V341 Globe Valve, 3-Way, PN16, G 1 External Thread, DN15, Kvs 1.6, Bronze Body, Stainless Steel Trim.
SKU:

7314121000

Venta V341 Globe Valve, 3-Way, PN16, G 1 External Thread, DN15, Kvs 1.6, Bronze Body, Stainless Steel Trim.

$439.59 INC GST
Available for Shipping : 01-Sep-2025
Venta V341 Globe Valve, 3-Way, PN16, G 1 External Thread, DN15, Kvs 1.6, Bronze Body, Stainless Steel Trim.
  • Self cleaning crown plug design
  • Exceptional control of low flows
  • Bronze body and stainless trim provide a very long life
  • Replacement gland kit ensures a long service life
  • U Bolt Actuator mounting accepts MG350, M310, M400, M800, M1500, M700 SR and MG900 SR actuators
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Product Page Link
Product Data Sheet
The V341 is an externally threaded 3-way bronze globe valve with stainless steel trim designed for demanding heating and cooling applications. The valve uses a crown plug for precise fluid control with a very high rangeability. Stainless Steel plug and seat provides a high pressure differential capability and a low leakage. The crown plug provides precise fluid control with a rangeability of 1:1 and is of a self cleaning design for reliable operation. Valve size: DN15, G External, Flow capacity, Kvs: 1.6 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 6 Kpa. EPDM seals provide a working temperature range of -2 °C to + 15 °C, the soft seat seal ensures a tight close off with no leakage. 2 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). G1 External (Male) Connection.

Products specifications

Attribute name Attribute value
Main
Operating fluid temperature -20-150 °C
Body material bronze Rg5
Seating seal material Port A:metal to metal
Seat leakage Port A: Less than 0.05 % of kvs (Ports B-AB), Port A: Less than 0.02 % of kvs (Ports A-AB)
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Valve connection size G 1B
Seat material Port B: stainless steel AISI 303, Port A: stainless steel AISI 303
Valve product range Venta
Medium compatibility Water, Glycol 50 %, Glycol 30 %, Glycol 25 %
Control valve rangeability greater than 50:1
Plug material stainless steel AISI 303
Valve product series V341
Flow coefficient 1.6 kvs, 1.85 cv
Stem flow action Stem up closes A and opens B to AB
Valve configuration 3-Way
Stem movement linear
Pressure fluid max delta P normal life 87 psi
Valve type globe
Valve model V341/15/1.6
Packing material EPDM (ethylene propylene diene monomer)
Valve connection type G External
Stem seal material EPDM (ethylene propylene diene monomer)
Flow characteristic equal percentage
Trim material stainless steel
Stroke length 20 mm
Stem material stainless steel AISI 303
Pipe size 15 mm
Pressure class PN16
Body size 15 mm (1/2 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.3 cm
Package 1 Width 18.1 cm
Package 1 Length 5.2 cm
Package 1 Weight 1.08 kg
