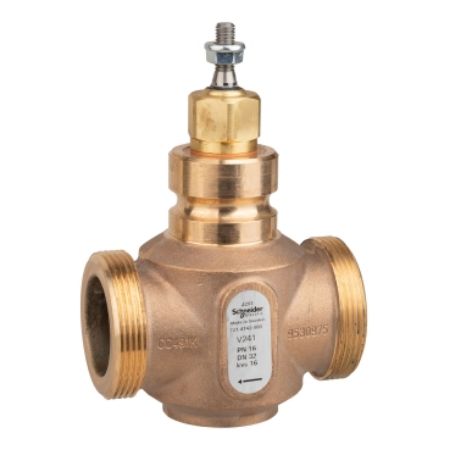

Picture of Venta V241 Globe Valve, 2-Way, PN16, G 2 External Thread, DN32, Kvs 16, Bronze Body, Stainless Trim, Stem Up Closed.
SKU:

7214142000

Venta V241 Globe Valve, 2-Way, PN16, G 2 External Thread, DN32, Kvs 16, Bronze Body, Stainless Trim, Stem Up Closed.

$733.57 INC GST
Available for Shipping : 23-Jul-2025
Venta V241 Globe Valve, 2-Way, PN16, G 2 External Thread, DN32, Kvs 16, Bronze Body, Stainless Trim, Stem Up Closed.
  • Self cleaning crown plug design
  • Exceptional control of low flows
  • Bronze body and stainless trim provide a very service long life
  • Replacement gland kit ensures a long operational life
  • U Bolt Actuator mounting accepts MG350, M310, M400, M800, M1500, M700 SR and MG900 SR actuators
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Product Page Link
Product Data Sheet
The V241 is an externally threaded 2-way bronze globe valve with stainless steel trim designed for demanding heating and cooling applications. The valve uses a crown plug for precise fluid control with a very high rangeability. Polished Stainless Steel seats ensure a high differential pressure and low leakage. The crown plug provides precise fluid control with a rangeability of 5:1 and is of a self cleaning design for reliable operation. Valve size: DN32, G External, Flow capacity, Kvs: 16 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 6 Kpa. EPDM seals provide a working temperature range of -2 °C to + 12 °C, the soft seat seal ensures a tight close off with no leakage. 2 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). G2 External (Male) Connection.

Products specifications

Attribute name Attribute value
Main
Operating fluid temperature -20-150 °C
Body material bronze Rg5
Seating seal material Port A:metal to metal
Seat leakage Port A: Less than 0.02 % of kvs
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Valve connection size G 2B
Seat material Port A: stainless steel AISI 303
Valve product range Venta
Medium compatibility Water, Glycol 50 %, Glycol 30 %, Glycol 25 %
Control valve rangeability greater than 100:1
Plug material stainless steel AISI 303
Valve product series V241
Flow coefficient 16 kvs, 18.5 cv
Stem flow action Stem up closed
Valve configuration 2-Way
Stem movement linear
Pressure fluid max delta P normal life 87 psi
Valve type globe
Valve model V241/32/16
Packing material EPDM (ethylene propylene diene monomer)
Valve connection type G External
Stem seal material EPDM (ethylene propylene diene monomer)
Flow characteristic equal percentage
Trim material stainless steel
Stroke length 20 mm
Stem material stainless steel AISI 303
Pipe size 32 mm
Pressure class PN16
Body size 32 mm (1-1/4 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11 cm
Package 1 Width 17.9 cm
Package 1 Length 7.3 cm
Package 1 Weight 1.84 kg
