SKU:

XVS10MMW

Multisound siren, Harmony XVS, white colour, 106dB, 2tones, 230V AC

Old price: $399.85 INC GST
$311.88 INC GST
Available for Shipping : 07-Aug-2025
Multisound siren, Harmony XVS, white colour, 106dB, 2tones, 230V AC
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Environmental Disclosure
Declaration of conformity
Instruction sheet
Circularity Profile
Product Page Link
Product Data Sheet
This white multi-sound siren is part of the range Harmony type XVS multi sound sirens and alarms. It is supplied complete and pre-cabled. Supply voltage is 230V AC and degree of protection is IP 53. It features a sound with continuous or intermittent tone of 106dB at 1 m and 2 tones. It is designed for long distance indication of the operating status of a machine. It is used mainly on conveyor belts, automated industrial trucks and on the doors of electrical control panels.

Products specifications

Attribute name Attribute value
Main
Device short name XVS
Noise level 106-106 dB (continuous or intermittent tone) at 1 m
Colour white
Range of product Harmony XVS
[Us] rated supply voltage 230 V AC
Signalling type 2 tones siren
Product or component type siren
Complementary
Compatibility code XVS
Electrical connection cable: 6.5-8.5 mm
Marking CE
Clamping connection capacity <= 1 x 1.5 mm²
Height 114 mm
Depth 153.2 mm
Width 114 mm
Material PC: body
[Uimp] rated impulse withstand voltage 4 kV
Net weight 1 kg
Current consumption 40 mA at 230 V
Environment
Protective treatment TC
Ambient air temperature for storage -35-70 °C
IP degree of protection IP53
Ambient air temperature for operation -30-50 °C
Electrical shock protection class class II conforming to IEC 61140
Standards IEC 60947-5-1, IEC 60947-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 19.500 cm
Package 1 Width 14.000 cm
Package 1 Length 14.000 cm
Package 1 Weight 1.242 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 11.109 kg
Unit Type of Package 3 3
Number of Units in Package 3 32
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 53.960 kg

Related products

Multisound siren, Harmony XVS, white colour, 106dB, 2tones, 12...24V AC DC

XVS10BMW
$277.13 INC GST $355.30 INC GST
View Detail

Multisound siren, Harmony XVS, white colour, 106dB, 2tones, 120V AC

XVS10GMW
$311.88 INC GST $399.85 INC GST
View Detail

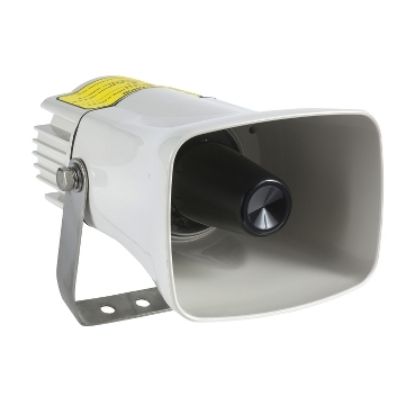

Picture of Multisound siren, prewired, Harmony XVS, white colour, 0...105 dB, 43 tones, 120V AC
