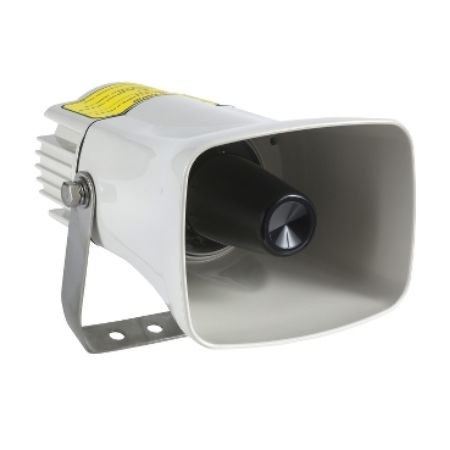

Picture of Multisound siren, prewired, Harmony XVS, white colour, 0...105 dB, 43 tones, 120V AC
SKU:

XVS14GMW

Multisound siren, prewired, Harmony XVS, white colour, 0...105 dB, 43 tones, 120V AC

Old price: $482.35 INC GST
$376.23 INC GST
Available for Shipping : 26-Aug-2025
Multisound siren, prewired, Harmony XVS, white colour, 0...105 dB, 43 tones, 120V AC
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalog
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name XVS
Product or component type multisound siren
Range of product Harmony XVS
Complementary
Depth 223 mm
Width 140 mm
Compatibility code XVS
Material PC (polycarbonate)/ABS (acrylonitrile butadiene-styrene): back, PC (polycarbonate)/ABS (acrylonitrile butadiene-styrene): front, PC (polycarbonate): back cover
Electrical connection cable: 6.5-8.5 mm, 0.52-0.52 mm² / AWG 20 (power circuit), cable: 6.5-8.5 mm, 0.33-0.33 mm² / AWG 22 (signalling circuit)
Colour white
[Uimp] rated impulse withstand voltage 4 kV
Net weight 1.2 kg
Current consumption 100 mA at 120 V
Marking CE
Fixing mode 3 holes Ø 9 mm
Mounting support bracket
Height 114 mm
Environment
Protective treatment TC
[Us] rated supply voltage 120 V AC
Noise level 0-105 dB (continuous or intermittent tone) at 1 m
Overvoltage category class II conforming to IEC 61140
Ambient air temperature for storage -35-70 °C
Signalling type 43 tones siren
IP degree of protection IP53 conforming to IEC 60529
Standards EN 60947-5, IEC 60947, IEC 61000-6-3, IEC 61000-6-2
Ambient air temperature for operation -10-50 °C
Product certifications UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.49 cm
Package 1 Width 16 cm
Package 1 Length 27.94 cm
Package 1 Weight 1.56 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 10.856 kg
Unit Type of Package 3 3
Number of Units in Package 3 24
Package 3 Height 60 cm
Package 3 Width 80 cm
Package 3 Length 24 cm
Package 3 Weight 38.064 kg
