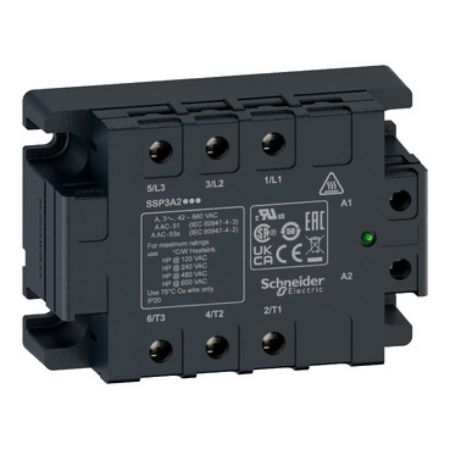

Picture of Harmony Solid State Relays, Solid state relay, 50A, panel mount, zero voltage switching, thermal pad, input 4…32V DC, output 48…530V AC
Picture of Harmony Solid State Relays, Solid state relay, 50A, panel mount, zero voltage switching, thermal pad, input 4…32V DC, output 48…530V AC
Picture of Harmony Solid State Relays, Solid state relay, 50A, panel mount, zero voltage switching, thermal pad, input 4…32V DC, output 48…530V AC
Picture of Harmony Solid State Relays, Solid state relay, 50A, panel mount, zero voltage switching, thermal pad, input 4…32V DC, output 48…530V AC
Picture of Harmony Solid State Relays, Solid state relay, 50A, panel mount, zero voltage switching, thermal pad, input 4…32V DC, output 48…530V AC
Picture of Harmony Solid State Relays, Solid state relay, 50A, panel mount, zero voltage switching, thermal pad, input 4…32V DC, output 48…530V AC
Picture of Harmony Solid State Relays, Solid state relay, 50A, panel mount, zero voltage switching, thermal pad, input 4…32V DC, output 48…530V AC
Picture of Harmony Solid State Relays, Solid state relay, 50A, panel mount, zero voltage switching, thermal pad, input 4…32V DC, output 48…530V AC
Picture of Harmony Solid State Relays, Solid state relay, 50A, panel mount, zero voltage switching, thermal pad, input 4…32V DC, output 48…530V AC
SKU:

SSP3A250BDT

Harmony Solid State Relays, Solid state relay, 50A, panel mount, zero voltage switching, thermal pad, input 4…32V DC, output 48…530V AC

Old price: $492.25 INC GST
$467.64 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
Harmony Solid State Relays, Solid state relay, 50A, panel mount, zero voltage switching, thermal pad, input 4…32V DC, output 48…530V AC
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Catalog
Circularity Profile
Image of product in real life situation
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony SSP solid state panel mount 3-phase relay is rated 50A, is controlled with a 4V to 32V DC input, has a rated load voltage of 48V to 530V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name SSP
[Uc] control circuit voltage 4...32 V
Provided equipment thermal interface
Range of product Harmony Solid State Relays
[In] rated current 50 A
Solid state output type zero voltage switching
Network number of phases 3 phases
Product or component type solid state relay up to 50 A
Output switching mode zero voltage switching
Mounting support panel
Connections - terminals screw connectors
Complementary
Input current limits 15-35 mA
Maximum switching voltage 1 V DC turn-off
DV/dt 500 V/µs off-state at maximum voltage
Electromagnetic compatibility conducted emission 0.15...30 Mhz environment A conforming to IEC 60947-1, radiated emission 30...1000 Mhz environment A conforming to IEC 60947-1, radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...6 GHz criteria A conforming to IEC 61000-4-3, electrical fast transient/burst immunity test 1 kV, 5kHz criteria B input ports conforming to IEC 61000-4-4, immunity to short interruption 0 %/5 s criteria C conforming to IEC 61000-4-11, immunity to voltage dips 70 %/500 ms criteria C conforming to IEC 61000-4-11, immunity to voltage dips 40 %/200 ms criteria C conforming to IEC 61000-4-11, immunity to voltage dips 0 %/20 ms criteria B conforming to IEC 61000-4-11, electrical fast transient/burst immunity test 2 kV, 5kHz criteria B output ports conforming to IEC 61000-4-4, surge immunity test 1 kV criteria B input ports line to earth conforming to IEC 61000-4-5, surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5, surge immunity test 1 kV criteria B output ports line to line conforming to IEC 61000-4-5, radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3, conducted RF disturbances 10 V, 0.15...80 MHz criteria A conforming to IEC 61000-4-6, electrostatic discharge 8 kV criteria B air discharge conforming to IEC 61000-4-2, electrostatic discharge 4 kV criteria B contact discharge conforming to IEC 61000-4-2
Device presentation complete product
Control type without test button
IP degree of protection IP20
Minimum switching voltage 4 V DC turn-on
Connections - terminals screw terminals: 1 x 1.5...1 x 10 mm², (AWG 16...AWG 8) for output, screw terminals: 1 x 0.2...1 x 2.5 mm², (AWG 24...AWG 14) for input
Maximum voltage drop <1.6 V on-state
Insulation resistance >= 1000 MOhm at 500 V DC
Motor power hp 10 hp 40 °C 600 V AC, 7.5 hp 40 °C 480 V AC, 3 hp 40 °C 240 V AC, 1.5 hp 40 °C 120 V AC
Height 74.6 mm
Cos phi 0.5-0.5 (with maximum load)
Protection device type TVS
Motor power kW 7.5 kW at 40-40 °C 600 V AC, 5.5 kW at 40-40 °C 480 V AC, 2.2 kW at 40-40 °C 240 V AC, 1.1 kW at 40-40 °C 120 V AC
Depth 41 mm
Width 104 mm
Capacitance unbalance 8 pF for input/output
Absolute maximum voltage 1200 V
Maximum leakage current 3 mA off-state
[Uimp] rated impulse withstand voltage 6 kV for input/output to case, 6 kV for input/output circuit, 0.8 kV for input to case
Net weight 0.37 kg
Local signalling LED, green for input
Load current 0.4-50 A
Surge current 750 A for 16.6 ms, 715 A for 20 ms
Response time 8.33 ms (turn-off), 8.33 ms (turn-on)
Dielectric strength 4 kV AC for input or output to case, 4 kV AC for input/output
Maximum I²t for fusing 2320 A².s for 8.3 ms at 60 Hz, 2520 A².s for 10 ms at 50 Hz
Thermal resitance 0.15 °C/W
Tightening torque 2.5 N.m for output, 1.2 N.m for input
Environment
Ambient air temperature for storage -40-125 °C
Marking CE
Pollution degree 2
Ambient air temperature for operation -40-80 °C
Overvoltage category III
Flame retardance V0 conforming to UL 94
Standards C22.2 No. 14, UL 60947-4-2, IEC/EN 60947-4-3, IEC/EN 60947-4-2, IEC/EN 62314
Product certifications UKCA, UL, EAC, CSA, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.500 cm
Package 1 Width 8.100 cm
Package 1 Length 11.600 cm
Package 1 Weight 380.000 g
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 9.568 kg
