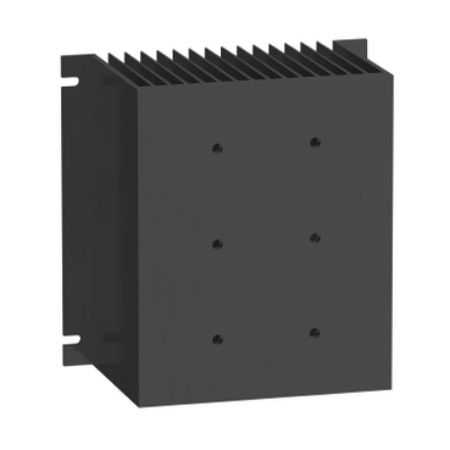

Picture of Harmony Solid State Relays, Heat sink, panel mount, thermal resistance 0.5 degree C W
Picture of Harmony Solid State Relays, Heat sink, panel mount, thermal resistance 0.5 degree C W
Picture of Harmony Solid State Relays, Heat sink, panel mount, thermal resistance 0.5 degree C W
SKU:

SSRHP05

Harmony Solid State Relays, Heat sink, panel mount, thermal resistance 0.5 degree C W

Old price: $141.02 INC GST
$133.97 INC GST
Available for Shipping : 02-Dec-2025
Product Selector
Harmony Solid State Relays, Heat sink, panel mount, thermal resistance 0.5 degree C W
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
This product is part of the Harmony Solid State Relays, an offer of protection accessories for panel mount solid state relays. This heat sink is suitable for Harmony solid state relays. It features 0.5°C/W thermal resistance, 4406cm² surface and useful surface. It is made of aluminum with black anodized finish. Its dimensions are 152.4mm (width) x 88.9mm (depth) x 152.4mm (height). It weighs 1.44kg. It is suitable for packaging machines, heating control, injection molding, HVAC, textile machines and medical equipment applications. This heat sink is compatible with 1 solid state relay on panel. It supports panel mount. Harmony Solid State Relays are the complete solution for 1 phase and 3 phase, slim, modular DIN rail and panel mount offer. SSR relays offer slim interfaces, modular DIN rail and panel mount relays. A complete, innovative and compact solution for industrial applications.

Products specifications

Attribute name Attribute value
Main
Product or component type heat sink
Range of product Harmony Solid State Relays
Complementary
Tightening torque 1.7-2.2 N.m
Depth 88.9 mm
Width 152.4 mm
Sale per indivisible quantity 1
Net weight 1.440 kg
Material aluminium
Thermal resitance 0.5 °C/W
Surface and useful surface 4406 cm²
Surface finish black anodized
Mounting support panel
Number of mounting holes 6 with UNC 8-32 thread
Product compatibility 1 solid state relay SSR on panel
Height 152.4 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.000 cm
Package 1 Width 16.400 cm
Package 1 Length 17.500 cm
Package 1 Weight 1.559 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 10.070 kg
