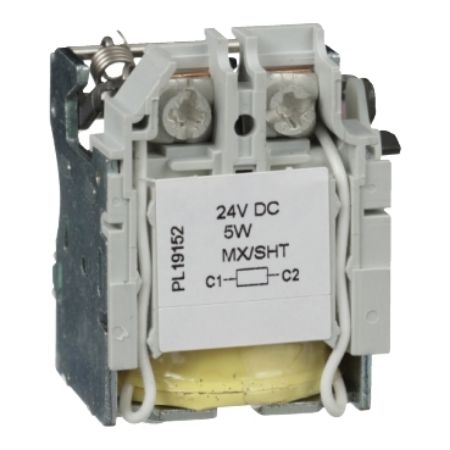

Picture of Circuit breaker accessory, PowerPacT H/J/L, shunt trip, 24VDC
SKU:

S29390

Circuit breaker accessory, PowerPacT H/J/L, shunt trip, 24VDC

Old price: $604.89 INC GST
$532.30 INC GST
Available for Shipping : 31-Aug-2025
Circuit breaker accessory, PowerPacT H/J/L, shunt trip, 24VDC
  • Shunt Trip for circuit breakers with screw connection
  • Protects electrical systems from damage caused by overloads and short circuits
  • Compatible with PowerPacT H/J/L circuit breakers
  • Complies with UL 489 listed, CSA, and IEC standards
  • Complies with UL and CSA standards
Be the first to review this product
Manufacturer: Square D
Instruction sheet
Catalog
Product Page Link
Product Data Sheet
The PowerPact™ H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H- and J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. L-frame circuit breakers are available with Micrologic electronic trip units only. Shunt Trip (MX). Trips the circuit breaker when the control voltage rises above 70% of its rated voltage. Impulse type ≥ 20 ms or maintained control signals. AC shunt trips are suitable for ground-fault protection when combined with a Class I ground-fault sensing element. Continuous duty rated coil.

Products specifications

Attribute name Attribute value
Main
Product or component type shunt trip
Range of product PowerPact L, PowerPact J, PowerPact H
Complementary
Rated voltage 24-24 V DC
Tightening torque 1.4-1.4 N.m for 0.82-2.5 mm² (AWG 18...AWG 14)
Environment
Product certifications UL listed, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.684 cm
Package 1 Width 5.080 cm
Package 1 Length 14.986 cm
Package 1 Weight 145.149 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 26.670 cm
Package 2 Width 36.322 cm
Package 2 Length 60.960 cm
Package 2 Weight 8.119 kg
