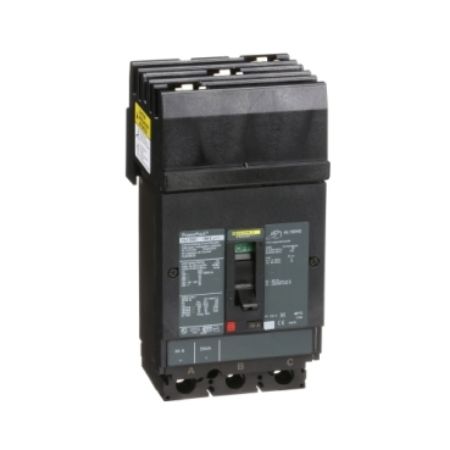

Circuit breaker, PowerPacT H, 30A, 3 pole, 600VAC, 25kA, I-Line, thermal magnetic, 80%, ABC

Old price: $4,399.45 INC GST
$3,871.52 INC GST
Available for Shipping : 02-Sep-2025
Circuit breaker, PowerPacT H, 30A, 3 pole, 600VAC, 25kA, I-Line, thermal magnetic, 80%, ABC
  • Thermal magnetic sensing in each pole
  • Visi-Trip LED visual trip locator accessory available for PowerPacT H, J, and L
  • Front facing semi transparent cover for quick visual identification
  • Field installable accessories reduce inventory without sacrificing flexibility
  • I-Line mounting for Square D panelboard and switchboard applications
  • QR codes for easy access to device documentation
Be the first to review this product
Manufacturer: Square D
CAD
Catalog
Circularity Profile
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
The PowerPact H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H- and J-frame circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. The new generation PowerPact with Micrologic circuit breakers set the standard with direct access to energy management. Integrated metering enhances their protective functions. For the first time, Schneider Electric™ users can monitor energy from 15 to 3000 A, offering new performance in a remarkably compact device. This PowerPact H, circuit breaker has a rated current of 30A and is a 3P breaker. This breaker has a breaking capacity of 25 kA@600VAC and has an thermal-magnetic trip technology. This breaker complies to UL, CE, IEC & CSA standards. Thermal current for this breaker has a magnetic tripping current of 750A. Dimensions for this breaker are 9.73 in (H),2.94 in (W),4.8 in (D) and has an ambient temperature of 40 °C. This product comes with an 18 months warranty.

Products specifications

Attribute name Attribute value
Main
Device application distribution
Range PowerPact
Product name PowerPact H
Product or component type circuit breaker
Complementary
Colour black
AWG gauge AWG 14...AWG 3/0 aluminium/copper terminal
Quantity per set 1
Suitability for isolation yes conforming to IEC 60947-2
Breaking capacity 20 kA at 250 V DC conforming to UL 489,  25 kA at 600 V AC 50/60 Hz conforming to UL 489,  65 kA at 480 V AC 50/60 Hz conforming to UL 489,  100 kA at 240 V AC 50/60 Hz conforming to UL 489
Continuous current rating 80 %
Wire stripping length 16 mm
Control type toggle
Magnetic hold current 350 A
Mounting height 4.5 in
Protected poles description 3t
Magnetic tripping current 750-750 A
Tightening torque 14-14 N.m for 10-95 mm² (AWG 8...AWG 3/0), 5-5 N.m for 2.5-6 mm² (AWG 14...AWG 10)
Height 163 mm
[Ics] rated service breaking capacity 20 kA at 500 V DC conforming to IEC 60947-2, 20 kA at 250 V DC conforming to IEC 60947-2, 25 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA at 380/440/415 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Phase connection ABC
Depth 86 mm
Width 104 mm
Poles description 3P
Communication interface Ethernet, Modbus
[Ui] rated insulation voltage 750 V conforming to IEC 60947-2
[In] rated current 30-30 A
Utilisation category category A
Circuit breaker application HACR rated
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
Net weight 2.2 kg
Electrical connection lugs, load, I-Line connection, line
Number of slots 1 slot(s) for voltage release MN or MX (plug-in), 1 slot(s) for overcurrent trip switch SDE (plug-in), 1 slot(s) for alarm switch SD (plug-in), 2 slot(s) for auxiliary switch OF (plug-in)
Local signalling switched off (OFF): 1 trip indicator (green)
Breaking capacity code J
Mounting support bracket
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-3
Trip unit technology thermal-magnetic
Terminal identifier AL150HD
Network frequency 50/60 Hz
Mounting mode I-Line (bracket)
Environment
Ambient air temperature for storage -50-85 °C
Pollution degree 3 conforming to IEC 60947-1
IP degree of protection front cover: IP40 conforming to IEC 60529
Product certifications NOM, CSA, UL
Ambient air temperature for operation -25-70 °C
Operating altitude 5000 m with derating, < 2000 m without derating
Quality labels CE
Standards IEC 60947-2, NOM-003-SCFI-2000, NEMA, CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.494 cm
Package 1 Width 21.59 cm
Package 1 Length 38.1 cm
Package 1 Weight 2.722 kg
Unit Type of Package 2 2
Number of Units in Package 2 38
Package 2 Height 101.6 cm
Package 2 Width 101.6 cm
Package 2 Length 121.92 cm
Package 2 Weight 100.244 kg

Related products

Picture of Circuit breaker accessory, PowerPacT H/J/L/M/P/R, aux switch, alarm switch, overcurrent trip

Circuit breaker accessory, PowerPacT H/J/L/M/P/R, aux switch, alarm switch, overcurrent trip

S29450
$230.87 INC GST $262.35 INC GST
View Detail

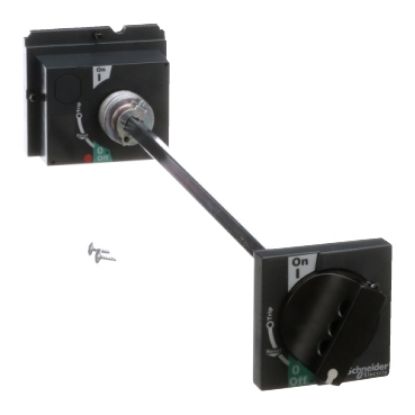

Picture of Circuit breaker accessory, PowerPacT H/J, rotary handle, door mounted

Circuit breaker accessory, PowerPacT H/J, rotary handle, door mounted

S29338
$270.56 INC GST $307.45 INC GST
View Detail

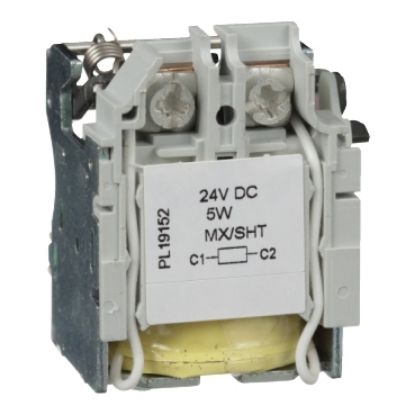

Picture of Circuit breaker accessory, PowerPacT H/J/L, shunt trip, 24VDC

Circuit breaker accessory, PowerPacT H/J/L, shunt trip, 24VDC

S29390
$532.30 INC GST $604.89 INC GST
View Detail

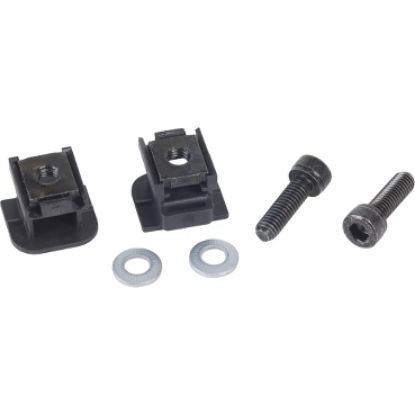

Picture of Circuit breaker accessory, PowerPacT H, terminal nut, for busbar, tap M6, CE standard, qty 2
