SKU:

RSB2A080BD

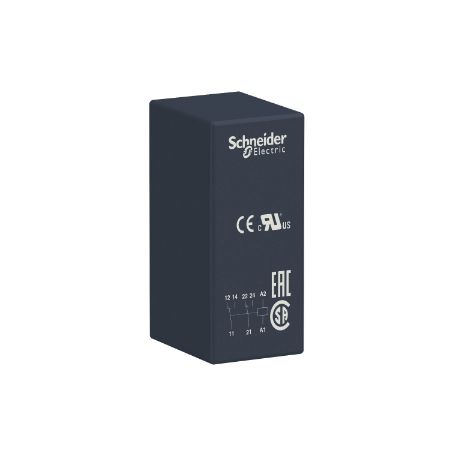

interface plug-in relay, Harmony electromechanical relays, 8A, 2CO, 24V DC

Old price: $12.65 INC GST
$12.02 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
interface plug-in relay, Harmony electromechanical relays, 8A, 2CO, 24V DC
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Image of product in real life situation
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
This Harmony RSB interfacing plug-in relay has a control coil voltage of 24V DC and has 2 changeover contacts double pole double throw with a rating of 8A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Contact operation standard
[Ithe] conventional enclosed thermal current 8 A at -40-40 °C
Contacts type and composition 2 C/O
Series name interface relay
Device short name RSB
[Uc] control circuit voltage 24 V, 24 V DC
Control type without push-button
Range of product Harmony Electromechanical Relays
[In] rated current 8 A
Status LED without
Product or component type plug-in relay
Complementary
Drop-out voltage threshold >= 0.1 Uc DC
Operating position any position
Compatibility code RSB
Electrical durability 100000 cycles, 4 A at 250 V, AC-1 NC, 100000 cycles, 8 A at 250 V, AC-1 NO
Sale per indivisible quantity 10
Average coil consumption 0.45 W DC
Device presentation complete product
Average resistance 1440 Ohm network: DC at 20 °C +/- 10 %
Shape of pin flat (PCB type)
Safety reliability data B10d = 100000
Minimum switching capacity 120 mW at 10 mA, 12 V
Operating time 20 ms reset, 20 ms operating
Minimum switching current 10 mA
[Ui] rated insulation voltage 400 V conforming to IEC 60947
[Ie] rated operational current 8 A (AC-1/DC-1) NO conforming to IEC, 4 A (AC-1/DC-1) NC conforming to IEC
Maximum switching voltage 300 V DC conforming to IEC
Net weight 0.014 kg
Test levels level A group mounting
Protection category RT I
Load current 8 A at 28 V DC, 8 A at 250 V AC
Mechanical durability 30000000 cycles
Marking CE
Contacts material silver alloy (AgNi)
Maximum switching capacity 2000 VA/224 W
Switching voltage 12 V
[Uimp] rated impulse withstand voltage 3.6 kV conforming to IEC 61000-4-5
Operating rate <= 18000 cycles/hour no-load, <= 600 cycles/hour under load
[Ue] rated operational voltage 16.8...36 V DC
Environment
Ambient air temperature for storage -40-85 °C
Product certifications EAC, CSA, UL
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -40-85 °C (DC)
Vibration resistance +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
Dielectric strength 5000 V AC between coil and contact, 2500 V AC between poles, 1000 V AC between contacts
Shock resistance 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27, 10 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27
Standards IEC 61810-1, CSA C22.2 No 14, UL 508
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.800 cm
Package 1 Width 2.100 cm
Package 1 Length 3.000 cm
Package 1 Weight 13.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 1.600 cm
Package 2 Width 2.900 cm
Package 2 Length 33.000 cm
Package 2 Weight 142.000 g
Unit Type of Package 3 3
Number of Units in Package 3 350
Package 3 Height 15.000 cm
Package 3 Width 15.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 5.180 kg
Unit Type of Package 4 4
Number of Units in Package 4 11200
Package 4 Height 75.000 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 191.776 kg
