Picture of Push in socket with clamp, Harmony Electromechanical Relays, for RSB1A160 RSB2A080 relays, 10A, push in terminals, separate contact
SKU:

RSZE08P

Push in socket with clamp, Harmony Electromechanical Relays, for RSB1A160 RSB2A080 relays, 10A, push in terminals, separate contact

Old price: $19.69 INC GST
$18.71 INC GST
Available for Shipping : 12-Aug-2025
Product Selector
Push in socket with clamp, Harmony Electromechanical Relays, for RSB1A160 RSB2A080 relays, 10A, push in terminals, separate contact
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet
This Harmony RSZ range is a plug-in socket. This plug-in relay socket is compatible with interface plug-in relay RSB range. This product is for RSB1A/RSB2A relays. It is compatible with plug-in relay RSB with 2 C/O contact. it has a rated voltage of 250V AC with an output rating of 10A. It is a green premium product and conforms to international standard and certifications.

Products specifications

Attribute name Attribute value
Main
Device short name RSZ
[In] rated current 10 A
Contacts type and composition 2 C/O
Product or component type socket
[Ui] rated insulation voltage 250 V
Product compatibility plug-in relay RSB with 2 C/O contact at 8 A, plug-in relay RSB with 1 C/O contact at 16 A
Range of product Harmony Electromechanical Relays
[Ith] conventional free air thermal current 10 A
Complementary
Overvoltage category III
Width 16 mm
Compatibility code RSZ
Sale per indivisible quantity 10
Connections - terminals spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) flexible with cable end, push-in terminals
Fixing mode clip-on (35 mm symmetrical DIN rail)
Net weight 0.042 kg
Contact terminal arrangement separate
Length 98 mm
Shape of pin flat
Pollution degree 3
[Ue] rated operational voltage 300 V conforming to UL, 250 V conforming to IEC
[Uimp] rated impulse withstand voltage 4 kV
Height 60 mm
Environment
Ambient air temperature for storage -40-85 °C
IP degree of protection IP20
Marking CE
Standards IEC 61984
Ambient air temperature for operation -40-85 °C
Product certifications EAC, UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.500 cm
Package 1 Width 6.000 cm
Package 1 Length 10.000 cm
Package 1 Weight 40.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 7.500 cm
Package 2 Width 10.500 cm
Package 2 Length 16.500 cm
Package 2 Weight 448.000 g
Unit Type of Package 3 3
Number of Units in Package 3 160
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 7.710 kg

Related products

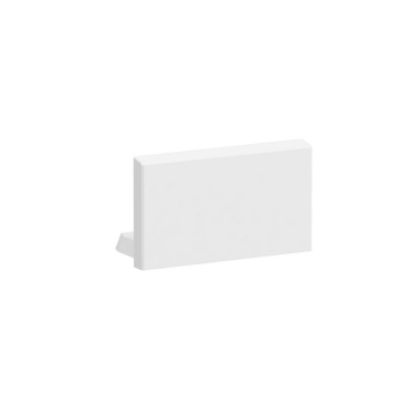

Harmony Electromechanical Relays, Legends, for RSZE/RGZE sockets, plastic

RSZL300
$2.02 INC GST $2.13 INC GST
View Detail

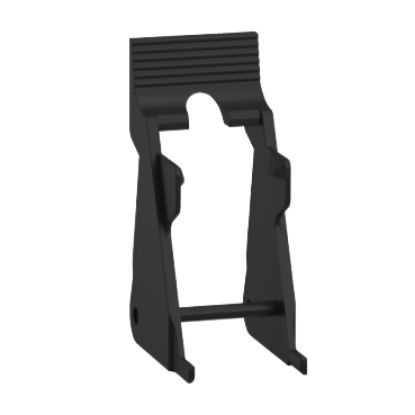

Harmony Electromechanical Relays, Maintaining clamp, for RSB relays, plastic
