SKU:

RPM11B7

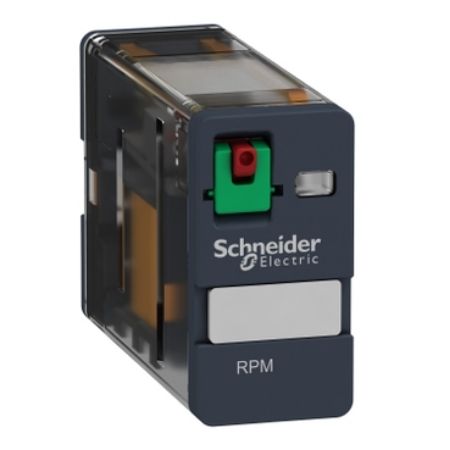

plug-in relay, Harmony electromechanical relays, 15A, 1CO, lockable test button, 24V AC

Old price: $16.94 INC GST
$16.09 INC GST
Available for Shipping : 27-Jul-2025
Product Selector
plug-in relay, Harmony electromechanical relays, 15A, 1CO, lockable test button, 24V AC
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Declaration of conformity
Image of product in real life situation
Image of product in real life situation
Catalog
Product Page Link
Product Data Sheet
This Harmony RPM power plug-in relay has a coil control voltage of 24V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type enables easy installation and maintenance. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name RPM
[Uc] control circuit voltage 24 V, 24 V AC 50/60 Hz
Control type lockable test button
Range of product Harmony Electromechanical Relays
Utilisation coefficient 20 %
[Ithe] conventional enclosed thermal current 15 A at -40-55 °C
[In] rated current 15 A
Contacts type and composition 1 C/O
Series name Power
Status LED without
Product or component type plug-in relay
Complementary
Drop-out voltage threshold >= 0.15 Uc AC
[Uimp] rated impulse withstand voltage 4 kV during 1.2/50 µs
Load current 15 A at 28 V DC, 15 A at 250 V AC
Operating position any position
Compatibility code RPM
Mechanical durability 10000000 cycles
Pollution degree 3
Device presentation complete product
Average resistance 177 Ohm at 20 °C +/- 15 %
Shape of pin flat
Contacts material AgNi
Electrical durability 100000 cycles for resistive load
Safety reliability data B10d = 100000
Maximum switching capacity 420 W, 3750 VA
Minimum switching capacity 170 mW at 10 mA, 17 V
Operating time 20 ms at nominal voltage
[Ui] rated insulation voltage 300 V conforming to UL, 300 V conforming to CSA, 250 V conforming to IEC
[Ie] rated operational current 7.5 A at 28 V (DC) NC conforming to IEC, 7.5 A at 250 V (AC) NC conforming to IEC, 15 A at 28 V (DC) NO conforming to IEC, 15 A at 250 V (AC) NO conforming to IEC, 15 A at 28 V (DC) conforming to UL, 15 A at 277 V (AC) conforming to UL
Rated operational voltage limits 19.2...26.4 V AC
Maximum switching voltage 250 V conforming to IEC
Net weight 0.026 kg
Reset time 20 ms at nominal voltage
Average coil consumption in VA 1.6 at 60 Hz
Test levels level A group mounting
Protection category RT I
Operating rate <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load
Environment
Ambient air temperature for storage -40-85 °C
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -40-55 °C
Shock resistance 30 gn for not operating, 15 gn for in operation
Vibration resistance 5 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles not operating, 3 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles in operation
Dielectric strength 2000 V AC between coil and contact with reinforced, 1500 V AC between contacts with micro disconnection
Standards CSA C22.2 No 14, IEC 61810-1, UL 508
Product certifications UL, CSA, EAC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.500 cm
Package 1 Width 2.500 cm
Package 1 Length 5.000 cm
Package 1 Weight 24.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 3.000 cm
Package 2 Width 8.500 cm
Package 2 Length 11.000 cm
Package 2 Weight 269.000 g
Unit Type of Package 3 3
Number of Units in Package 3 160
Package 3 Height 15.000 cm
Package 3 Width 15.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 4.459 kg
Unit Type of Package 4 4
Number of Units in Package 4 5120
Package 4 Height 75.000 cm
Package 4 Width 80.000 cm
Package 4 Length 60.000 cm
Package 4 Weight 150.688 kg

Related products

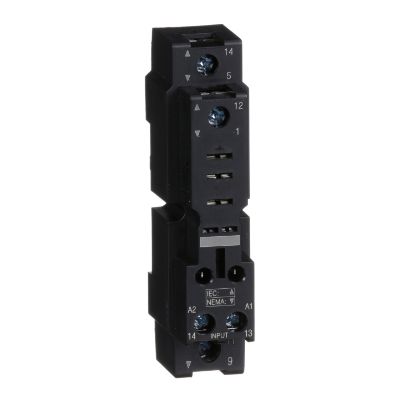

socket, Harmony Electromechanical Relays, for RPM1 power relays, 16A screw clamp terminals, mixed contact
