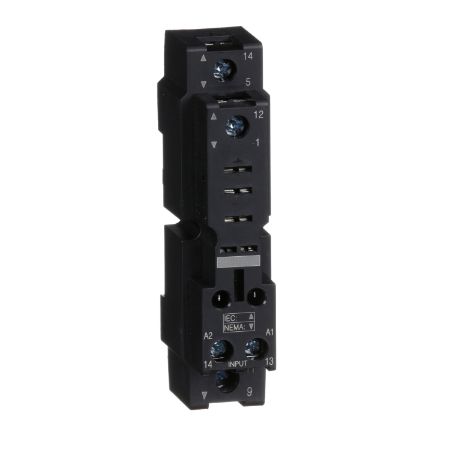

Picture of socket, Harmony Electromechanical Relays, for RPM1 power relays, 16A screw clamp terminals, mixed contact
Picture of socket, Harmony Electromechanical Relays, for RPM1 power relays, 16A screw clamp terminals, mixed contact
Picture of socket, Harmony Electromechanical Relays, for RPM1 power relays, 16A screw clamp terminals, mixed contact
Picture of socket, Harmony Electromechanical Relays, for RPM1 power relays, 16A screw clamp terminals, mixed contact
Picture of socket, Harmony Electromechanical Relays, for RPM1 power relays, 16A screw clamp terminals, mixed contact
Picture of socket, Harmony Electromechanical Relays, for RPM1 power relays, 16A screw clamp terminals, mixed contact
Picture of socket, Harmony Electromechanical Relays, for RPM1 power relays, 16A screw clamp terminals, mixed contact
SKU:

RPZF1

socket, Harmony Electromechanical Relays, for RPM1 power relays, 16A screw clamp terminals, mixed contact

Old price: $11.33 INC GST
$10.76 INC GST
Available for Shipping : 27-Jul-2025
Product Selector
socket, Harmony Electromechanical Relays, for RPM1 power relays, 16A screw clamp terminals, mixed contact
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Environmental Disclosure
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet
"This Harmony RPM plug-in socket has a rated voltage of 250V AC with an output rating of 16A." "This plug-in relay socket is compatible with interface plug-in relay RPM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name RPZ
Product compatibility plug-in relay RPM with 1 C/O contact
Range of product Harmony Electromechanical Relays
[Ith] conventional free air thermal current 16 A
[Ue] rated operational voltage 250 V
[In] rated current 16 A
Contacts type and composition 1 C/O
Product or component type socket
Complementary
Group of product RPM_1_C/O_SC_TER_MIX_FLAT
Compatibility code RPZ
Fixing mode clip-on (35 mm symmetrical DIN rail), by screw (panel)
Contact terminal arrangement mixed
Pollution degree 3
[Uimp] rated impulse withstand voltage 4 kV
Overvoltage category III
Net weight 0.031 kg
Tightening torque < 0.8 N.m for M3 screw(s), < 1 N.m for M3.5 screw(s)
Connections - terminals screw clamp terminals
Environment
Ambient air temperature for storage -40-85 °C
IP degree of protection IP20 conforming to IEC 60529
Connections - terminals coil terminal - screw clamp terminals, 1 wire flexible cable with cable end 0.5...1.5 mm² / AWG 20...AWG 16, coil terminal - screw clamp terminals, 2 wires flexible cable with cable end 0.5...1.5 mm² / AWG 20...AWG 16, coil terminal - screw clamp terminals, 1 wire solid cable without cable end 0.5...2.5 mm² / AWG 20...AWG 14, coil terminal - screw clamp terminals, 2 wires solid cable without cable end 0.5...2.5 mm² / AWG 20...AWG 14, contact terminal - screw clamp terminals, 1 wire flexible cable with cable end 0.5...2.5 mm² / AWG 20...AWG 14, contact terminal - screw clamp terminals, 2 wires flexible cable with cable end 0.5...2.5 mm² / AWG 20...AWG 14, contact terminal - screw clamp terminals, 1 wire solid cable without cable end 0.5...4 mm² / AWG 20...AWG 12, contact terminal - screw clamp terminals, 2 wires solid cable without cable end 0.5...4 mm² / AWG 20...AWG 12
Ambient air temperature for operation -40-55 °C
Dielectric strength 2500 V
Standards UL 508, CSA C22.2 No 14, IEC 61984
Product certifications CE, EAC, UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3 cm
Package 1 Width 2.1 cm
Package 1 Length 8.5 cm
Package 1 Weight 30 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 6.5 cm
Package 2 Width 9 cm
Package 2 Length 10.7 cm
Package 2 Weight 335 g
Unit Type of Package 3 3
Number of Units in Package 3 240
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 8.593 kg

Related products

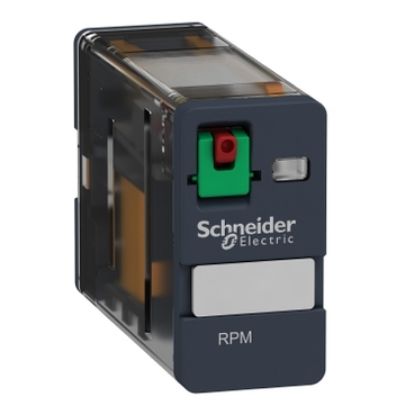

plug-in relay, Harmony electromechanical relays, 15A, 1CO, lockable test button, 120V AC

RPM11F7
$16.09 INC GST $16.94 INC GST
View Detail

plug-in relay, Harmony electromechanical relays, 15A, 1CO, with LED, lockable test button, 24V AC

RPM12B7
$21.53 INC GST $22.66 INC GST
View Detail

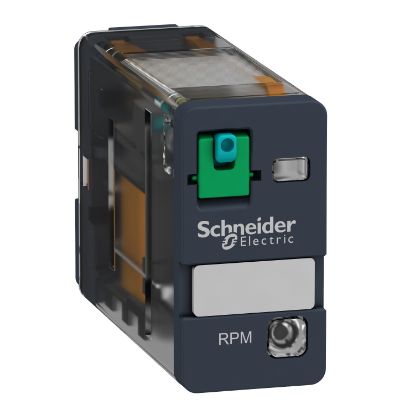

plug-in relay, Harmony electromechanical relays, 15A, 1CO, with LED, lockable test button, 24V DC

RPM12BD
$21.53 INC GST $22.66 INC GST
View Detail

plug-in relay, Harmony electromechanical relays, 15A, 1CO, with LED, lockable test button, 120V AC

RPM12F7
$21.53 INC GST $22.66 INC GST
View Detail

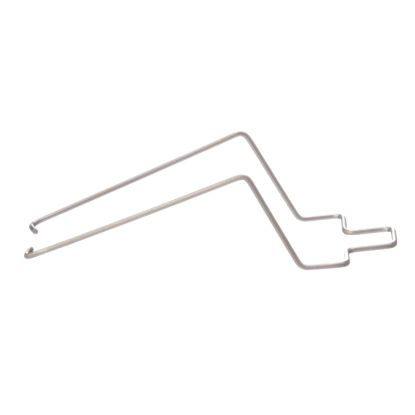

Picture of Maintaining clamp, Harmony, for RPZF1 sockets, metal
