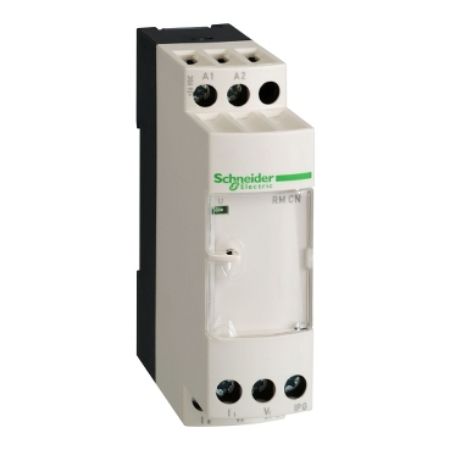

Picture of Isolated analog converter, Harmony Analog, 0…10V or 4...20mA to 0…10V or 4...20mA
Picture of Isolated analog converter, Harmony Analog, 0…10V or 4...20mA to 0…10V or 4...20mA
Picture of Isolated analog converter, Harmony Analog, 0…10V or 4...20mA to 0…10V or 4...20mA
Picture of Isolated analog converter, Harmony Analog, 0…10V or 4...20mA to 0…10V or 4...20mA
Picture of Isolated analog converter, Harmony Analog, 0…10V or 4...20mA to 0…10V or 4...20mA
Picture of Isolated analog converter, Harmony Analog, 0…10V or 4...20mA to 0…10V or 4...20mA
Picture of Isolated analog converter, Harmony Analog, 0…10V or 4...20mA to 0…10V or 4...20mA
Picture of Isolated analog converter, Harmony Analog, 0…10V or 4...20mA to 0…10V or 4...20mA
SKU:

RMCN22BD

Isolated analog converter, Harmony Analog, 0…10V or 4...20mA to 0…10V or 4...20mA

Old price: $331.10 INC GST
$314.54 INC GST
Available for Shipping : 05-Aug-2025
Isolated analog converter, Harmony Analog, 0…10V or 4...20mA to 0…10V or 4...20mA
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
This voltage/current converter is part of the range of Harmony Analog interfaces. This cost effective converter converts a 0 to 10 V signal to a 4 to 20mA signal or vice versa. Its supply voltage is 24V DC, non isolated. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Range of product Harmony Analog
Analogue input type voltage 0...10 V DC, current 4...20 mA
Product or component type voltage/current converter
Analogue output type voltage 0...10 V >= 100 kOhm by cabling, current 4...20 mA <= 500 Ohm by cabling
Complementary
Protection type reverse polarity protection on output, overvoltage protection on output (+/- 30 V), short-circuit protection on output
Temperature coefficient 200 ppm/°C
Surge withstand 0.5 kV during 1.2/50 µs conforming to IEC 61000-4-5
Fixing mode clip-on (35 mm symmetrical DIN rail), by screws (mounting plate)
Marking CE
Clamping connection capacity 2 x 1.5 mm², 1 x 2.5 mm²
Measurement error +/- 1 % of full scale at 20 °C, +/- 10 % of full scale at 20 °C (electromagnetic interference of 10 V/m)
Safety reliability data B10d = 67582, MTTFd = 73.2 years
[Us] rated supply voltage 24 V DC +/- 20 %, non isolated
Repeat accuracy +/- 0.6 % full scale at 60 °C, +/- 0.2 % full scale at 20 °C
Analogue output current 4-30 mA no input or input wire broken
Tightening torque 0.6-1.1 N.m
Local signalling LED (green) for power ON
Net weight 0.12 kg
Analogue output voltage -15...0 V no input or input wire broken
[Ui] rated insulation voltage 2 kV
Current consumption <= 60 mA for current output, <= 40 mA for voltage output
Environment
Resistance to fast transients 2 kV (on power supply) conforming to IEC 61000-4-4, 1 kV (on input-output) conforming to IEC 61000-4-4
Fire resistance 850 °C conforming to UL, 850 °C conforming to IEC 60695-2-1
Resistance to electrostatic discharge 8 kV (in air) conforming to IEC 61000-4-2 level 3, 6 kV (in contact) conforming to IEC 61000-4-2 level 3
Ambient air temperature for storage -40-85 °C
Pollution degree 2 conforming to IEC 60664-1
Disturbance radiated/conducted CISPR 11, CISPR 22 group 1 - class B
IP degree of protection IP50 (housing), IP20 (terminal block)
Ambient air temperature for operation 0-60 °C 2 cm spacing, 0-50 °C mounting side by side
Vibration resistance 5 gn (f= 10-100 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27
Standards IEC 60947-1, IEC 60584-1
Product certifications UL, CSA, GL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.500 cm
Package 1 Width 2.600 cm
Package 1 Length 8.000 cm
Package 1 Weight 100.000 g
Unit Type of Package 2 2
Number of Units in Package 2 47
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.500 kg

Related products

Picture of Terminal block, Linergy TR, green-yellow, 4mm2, protective earth, 2 points, Set of 50

Terminal block, Linergy TR, green-yellow, 4mm2, protective earth, 2 points, Set of 50

NSYTRV42PE
$15.94 INC GST $17.71 INC GST
View Detail

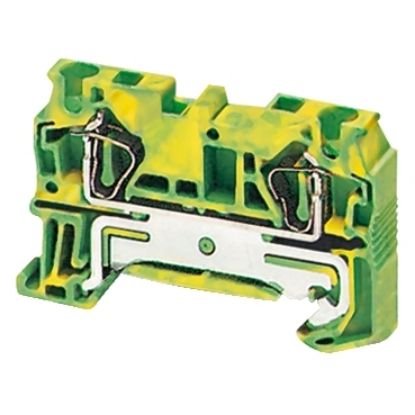

Picture of Terminal block, Linergy TR, spring type, protective earth, 2 points, 4mm², green-yellow, set of 50
