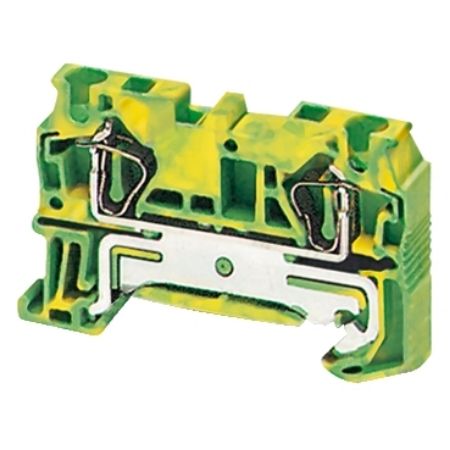

Picture of Terminal block, Linergy TR, spring type, protective earth, 2 points, 4mm², green-yellow, set of 50
SKU:

NSYTRR42PE

Terminal block, Linergy TR, spring type, protective earth, 2 points, 4mm², green-yellow, set of 50

Old price: $10.51 INC GST
$9.46 INC GST
Available for Shipping : 24-Jul-2025
Terminal block, Linergy TR, spring type, protective earth, 2 points, 4mm², green-yellow, set of 50
  • It belongs to linergy passthrough terminal block with 4 mm² nominal cross section
  • Mounting by clip-on and sideways connection by single-level 1x1 screw terminals
  • Releasing pressure on the sides stops the flow of cable ends
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
Linergy TR is terminal block for Linergy. It belongs to linergy earth terminal block with 4 mm² nominal cross section. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 screw terminals. It could be connection and disconnection by flat screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 50
Terminal block level 1
Length 56 mm
Device short name TRR
Colour green-yellow
Mounting mode clip-on
Range Linergy
Range of product Linergy
Nominal cross section 4 mm²
Product name Linergy TR
Product or component type terminal block
Terminal block type protective earth
Complementary
Range compatibility TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Compatibility code terminal block
Wire stripping length 10 mm
Tool type disconnection: flat screwdriver, connection: flat screwdriver
Number of measurement input 2
Connection position top
Connections - terminals 1 x spring terminal: downstream, 1 x spring terminal: upstream
Height 36.5 mm
Material polyamide 6/6: insulating case
Dielectric constant 3.7 at 1 MHz
Net weight 12.7 g
Number of terminals 2
Product compatibility Spacial enclosures
Surface resistance 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Resistivity 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Flame retardance V0, thickness0.8 mm conforming to UL 94
Dielectric loss 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
Creep resistance 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width 6.2 mm
Cable cross section 0.08-4 mm², flexible without cable end, 0.2-4 mm², flexible with cable end, 0.08-4 mm², solid
Environment
Product certifications VDE, ATEX, CSA, EAC, DNV, IEC-Ex, GL, LR, cURus
Ambient air temperature for operation -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength 1000 V conforming to IEC 60243-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.600 cm
Package 1 Width 7.000 cm
Package 1 Length 8.000 cm
Package 1 Weight 12.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 4.600 cm
Package 2 Width 7.000 cm
Package 2 Length 32.000 cm
Package 2 Weight 643.000 g
Unit Type of Package 3 3
Number of Units in Package 3 850
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 11.396 kg
