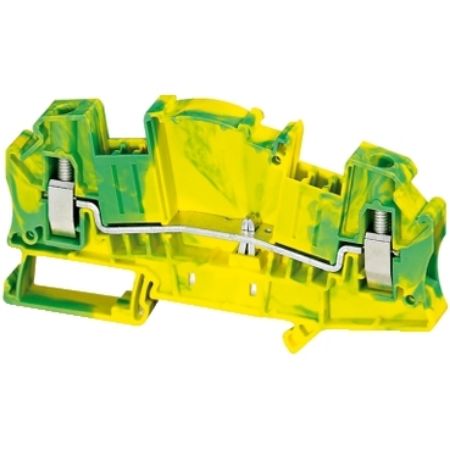

Picture of Screw terminal, Linergy TR, protective earth, measuring transducer, 2 points, 6mm², grey
SKU:

NSYTRV62TTPE

Screw terminal, Linergy TR, protective earth, measuring transducer, 2 points, 6mm², grey

Old price: $18.37 INC GST
$16.53 INC GST
Available for Shipping : 24-Jul-2025
Screw terminal, Linergy TR, protective earth, measuring transducer, 2 points, 6mm², grey
  • It belongs to linergy measuring terminal block with 6 mm² nominal cross section
  • Mounting by clip-on and sideways connection by single-level 1x1 screw terminals
  • Releasing pressure on the sides stops the flow of cable ends
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name TRV
Colour green-yellow
Quantity per set set of 50
Mounting mode clip-on
Range Linergy
Accessory / separate part category connection accessory
Range of product Linergy
Nominal cross section 6 mm²
Terminal block level 1
Length 100.8 mm
Product name Linergy TR
Product or component type terminal block
Terminal block type protective earth
Complementary
Product compatibility Spacial enclosures
Tightening torque 1.5-1.8 N.m
Range compatibility TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Surface resistance 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Compatibility code terminal block
Resistivity 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Wire stripping length 10 mm
Flame retardance V0, thickness0.8 mm conforming to UL 94
Tool type disconnection: screwdriver, connection: screwdriver
Number of measurement input 6
Connection position inclined
Height 49.6 mm
Dielectric loss 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
Creep resistance 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width 8.2 mm
Material polyamide 6/6: insulating case
Dielectric constant 3.7 at 1 MHz
Connections - terminals 1 x screw terminal: downstream, 1 x screw terminal: upstream
Net weight 33.3 g
Cable cross section 0.2-6 mm², flexible with cable end, 0.2-10 mm², flexible without cable end, 0.2-10 mm², solid
Number of terminals 2
Environment
Ambient air temperature for operation -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength 1000 V conforming to IEC 60243-1
Product certifications EAC, CSA, cURus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.800 cm
Package 1 Width 5.000 cm
Package 1 Length 10.100 cm
Package 1 Weight 32.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 5.000 cm
Package 2 Width 7.000 cm
Package 2 Length 27.000 cm
Package 2 Weight 1.713 kg
Unit Type of Package 3 3
Number of Units in Package 3 150
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 5.399 kg
Unit Type of Package 4 4
Number of Units in Package 4 2400
Package 4 Height 75.000 cm
Package 4 Width 80.000 cm
Package 4 Length 60.000 cm
Package 4 Weight 94.384 kg

Related products

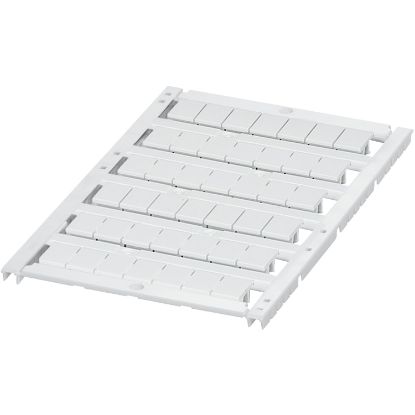

Picture of Marking card, Linergy TR, with 6 strips, 8mm, unprinted, 42 characters, white, Set of 10

Marking card, Linergy TR, with 6 strips, 8mm, unprinted, 42 characters, white, Set of 10

NSYTRABPV8
$12.18 INC GST $13.53 INC GST
View Detail
Picture of Cover plate, Linergy TR, 2 points, 2.2mm thickness, for TRV screw terminal block, 6mm², grey, Set of 50

Cover plate, Linergy TR, 2 points, 2.2mm thickness, for TRV screw terminal block, 6mm², grey, Set of 50

NSYTRACT22
$2.90 INC GST $3.22 INC GST
View Detail
Picture of Test adapter, Linergy TR, for 4mm safety test plug, lockable, green for NSYTRV62TT

Test adapter, Linergy TR, for 4mm safety test plug, lockable, green for NSYTRV62TT

NSYTRAFTGN
$3.22 INC GST $3.58 INC GST
View Detail
Picture of Test adapter, Linergy TR, for 4mm safety test plug, lockable yellow for NSYTRV62TT

Test adapter, Linergy TR, for 4mm safety test plug, lockable yellow for NSYTRV62TT

NSYTRAFTYE
$3.22 INC GST $3.58 INC GST
View Detail
Picture of Screw terminal, Linergy TR, feed through, measuring transducer, 2 points, 6mm², grey

Screw terminal, Linergy TR, feed through, measuring transducer, 2 points, 6mm², grey

NSYTRV62TT
$10.79 INC GST $11.99 INC GST
View Detail
Picture of Linergy, Test Plug, Metalic Part, for Diameter 2, 3mm Socket Hole

Linergy, Test Plug, Metalic Part, for Diameter 2, 3mm Socket Hole

NSYTRAATM1
$10.79 INC GST $11.99 INC GST
View Detail

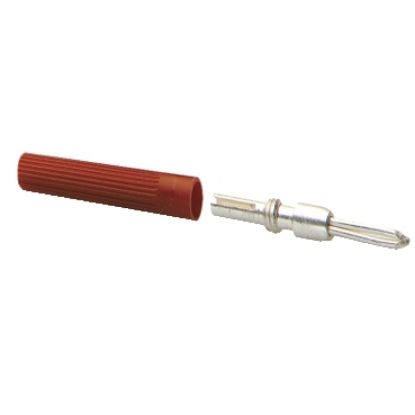

Picture of Linergy, Insulating Sleeve For Test Plug Metalic Part NSYTRAAM1, Red

Linergy, Insulating Sleeve For Test Plug Metalic Part NSYTRAAM1, Red

NSYTRAATP1
$10.79 INC GST $11.99 INC GST
View Detail

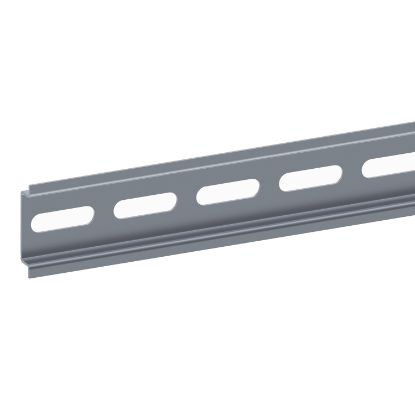

Picture of Spacial, One symmetric mounting rail perforated 35x7.2 mm L2000 mm type B, Order by Multiples of 10 units
