SKU:

NSYTRV502BL

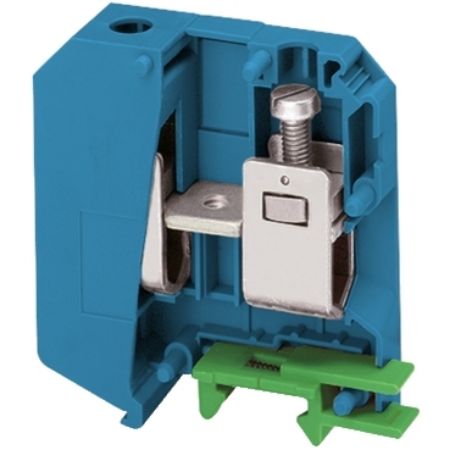

Terminal block, Linergy TR, blue, 50mm2, passthrough, 2 points, set of 10

Old price: $29.04 INC GST

Price: $26.14 INC GST

Qty:

Available for Shipping : 12-Aug-2025

Terminal block, Linergy TR, blue, 50mm2, passthrough, 2 points, set of 10

It belongs to linergy passthrough terminal block with 50 mm² nominal cross section

Mounting by clip-on and sideways connection by single-level 1x1 screw terminals

Releasing pressure on the sides stops the flow of cable ends

Facilitates storage by avoiding mixing cable ends of different sizes

Identifies the cross section of cable ends it contains

Be the first to review this product

Manufacturer: Schneider Electric

Declaration of conformity

Environmental Disclosure

Catalog

Product Page Link

Product Data Sheet

Products specifications

Attribute name	Attribute value
Main
Device short name	TRV
Colour	blue
Quantity per set	set of 50
Mounting mode	clip-on
Range	Linergy
Accessory / separate part category	connection accessory
Range of product	Linergy
Nominal cross section	50 mm²
Terminal block level	1
Length	70.5 mm
Product name	Linergy TR
Product or component type	terminal block
Terminal block type	passthrough
Complementary
Product compatibility	Spacial enclosures
Tightening torque	6-8 N.m
Range compatibility	TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Surface resistance	1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Compatibility code	terminal block
Resistivity	10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Wire stripping length	24 mm
Flame retardance	V0, thickness0.8 mm conforming to UL 94
Tool type	disconnection: screwdriver, connection: screwdriver
Number of measurement input	1
Connection position	sideways
Height	83.5 mm
Dielectric loss	0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
[Ue] rated operational voltage	600 V cURus, 690 V conforming to ATEX Exe II Ex II 2 GD, 600 V CSA, 1000 V conforming to EN/IEC 60947-7-1
Creep resistance	500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
[In] rated current	137-137 A conforming to ATEX Exe II Ex II 2 GD, 150-150 A conforming to EN/IEC 60947-7-1, 150-150 A CSA, 150-150 A cURus
Width	20 mm
Material	chromium-nickel steel: spring, copper alloy: commoning link, copper alloy: connector and screw, polyamide 6/6: insulating case
Cable cross section	16-70 mm², flexible cable without cable end, 25-70 mm², solid cable without cable end, 25-50 mm², flexible cable with cable end, 25-70 mm², solid cable with cable end
Dielectric constant	3.7 at 1 MHz
Connections - terminals	1 x screw terminal: downstream (M6), 1 x screw terminal: upstream (M6)
Net weight	120.28 g
Number of terminals	2
Environment
Ambient air temperature for operation	-40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength	1000 V conforming to IEC 60243-1
Product certifications	ATEX, EAC, GL, IEC-Ex, VDE, DNV, CSA, LR, cURus
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	8.3 cm
Package 1 Width	8.8 cm
Package 1 Length	23.0 cm
Package 1 Weight	120.0 g
Unit Type of Package 2	2
Number of Units in Package 2	10
Package 2 Height	8.3 cm
Package 2 Width	8.8 cm
Package 2 Length	23.0 cm
Package 2 Weight	1.205 kg
Unit Type of Package 3	3
Number of Units in Package 3	90
Package 3 Height	30.0 cm
Package 3 Width	30.0 cm
Package 3 Length	40.0 cm
Package 3 Weight	11.368 kg
