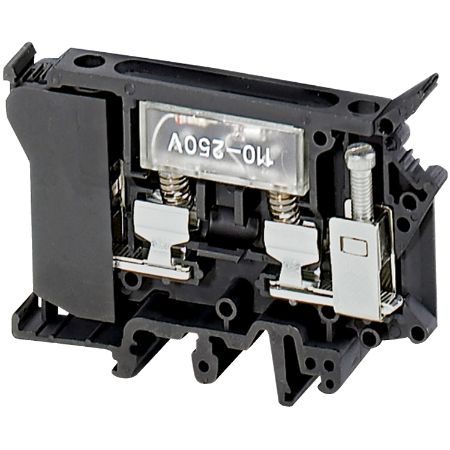

Picture of Linergy, Screw Terminal, Fused, for 6.3X32mm Fuse, with LED 110-250V, 2PTS, 6M
SKU:

NSYTRV42SF6LA

Linergy, Screw Terminal, Fused, for 6.3X32mm Fuse, with LED 110-250V, 2PTS, 6M

Old price: $14.19 INC GST
$12.77 INC GST
Available for Shipping : 03-Aug-2025
Linergy, Screw Terminal, Fused, for 6.3X32mm Fuse, with LED 110-250V, 2PTS, 6M
  • It belongs to linergy fixed carrier terminal block with 16 mm² nominal cross section
  • Mounting by clip-on and sideways connection by single-level 1x1 screw terminals
  • Releasing pressure on the sides stops the flow of cable ends
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name TRV
Colour black
Quantity per set set of 50
Mounting mode clip-on
Range Linergy
Range of product Linergy
Nominal cross section 16 mm²
Terminal block level 1
Length 79 mm
Product name Linergy TR
Product or component type terminal block
Terminal block type fused disconnect
Complementary
Product compatibility Spacial enclosures
Tightening torque 0.6-0.8 N.m
Range compatibility TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Surface resistance 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Compatibility code terminal block
Resistivity 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Wire stripping length 9 mm
Flame retardance V0, thickness0.8 mm conforming to UL 94
Tool type disconnection: screwdriver, connection: screwdriver
Number of measurement input 0
Connection position sideways
Connections - terminals 1 x screw terminal: downstream, 1 x screw terminal: upstream
Height 60.5 mm
Fuse size 6.3 x 32 mm
Dielectric loss 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
[Ue] rated operational voltage 600 V CSA, 600 V cURus, 500 V conforming to EN/IEC 60947-7-1
Creep resistance 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
[In] rated current 10-10 A CSA, 10-10 A cURus, 10-10 A conforming to EN/IEC 60947-7-1
Width 10.2 mm
Material polyamide 6/6: insulating case
Dielectric constant 3.7 at 1 MHz
Net weight 34.2 g
Provided equipment 110...250 V light indicator
Cable cross section 0.5-16 mm², solid, 0.5-16 mm², flexible without cable end
Number of terminals 2
Environment
Ambient air temperature for operation -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength 1000 V conforming to IEC 60243-1
Product certifications cURus, EAC, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.300 cm
Package 1 Width 11.500 cm
Package 1 Length 8.000 cm
Package 1 Weight 35.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 9.300 cm
Package 2 Width 11.500 cm
Package 2 Length 36.000 cm
Package 2 Weight 1.776 kg
Unit Type of Package 3 3
Number of Units in Package 3 300
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 11.220 kg
