SKU:

NSYTRV42SF6

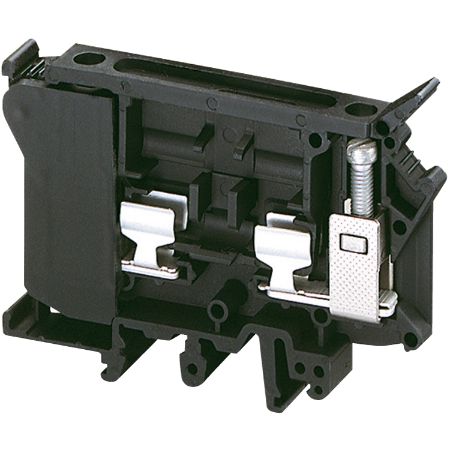

Linergy, Screw Terminal, Fused, for 6,3X32mm Cartridge Fuse, 2 PTS, 6mm², BLAC

Old price: $9.85 INC GST
$8.86 INC GST
Available for Shipping : 24-Jul-2025
Linergy, Screw Terminal, Fused, for 6,3X32mm Cartridge Fuse, 2 PTS, 6mm², BLAC
  • It belongs to linergy fixed carrier terminal block with 16 mm² nominal cross section
  • Mounting by clip-on and sideways connection by single-level 1x1 screw terminals
  • Releasing pressure on the sides stops the flow of cable ends
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
Manufacturer: Schneider Electric

Products specifications

Attribute name Attribute value
Main
Device application protection
Quantity per set set of 50
Terminal block level 1
Length 79 mm
Device short name TRV
Colour black
Mounting mode clip-on
Range Linergy
Range of product Linergy
Nominal cross section 16 mm²
Product name Linergy TR
Product or component type terminal block
Terminal block type fused disconnect
Complementary
Range compatibility TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Compatibility code terminal block
Wire stripping length 9 mm
Tool type disconnection: screwdriver, connection: screwdriver
Number of measurement input 0
Connection position sideways
Connections - terminals 1 x screw terminal: downstream, 1 x screw terminal: upstream
Height 60.5 mm
Fuse size 6.3 x 32 mm
[In] rated current 10-10 A CSA, 10-10 A cURus, 10-10 A conforming to EN/IEC 60947-7-1
Material polyamide 6/6: insulating case
Dielectric constant 3.7 at 1 MHz
Net weight 34.2 g
Number of terminals 2
Product compatibility Spacial enclosures
Tightening torque 0.6-0.8 N.m
Surface resistance 1000 MOhm conforming to VDE 0303-T30, 1000 MOhm conforming to IEC 60093
Resistivity 10000 Ω.cm conforming to VDE 0303-T30, 10000 Ω.cm conforming to IEC 60093
Flame retardance V0, thickness0.8 mm conforming to UL 94
Dielectric loss 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
[Ue] rated operational voltage 600 V CSA, 600 V cURus, 500 V conforming to EN/IEC 60947-7-1
Creep resistance 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width 10.2 mm
Cable cross section 0.5-16 mm², solid with cable end, 0.2-4 mm², flexible with cable end, 0.2-4 mm², flexible without cable end
Environment
Product certifications cURus, EAC, CSA
Ambient air temperature for operation -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength 1000 V conforming to IEC 60243-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.500 cm
Package 1 Width 5.750 cm
Package 1 Length 12.170 cm
Package 1 Weight 34.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 9.000 cm
Package 2 Width 11.500 cm
Package 2 Length 36.000 cm
Package 2 Weight 1.722 kg
Unit Type of Package 3 3
Number of Units in Package 3 300
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 10.724 kg
