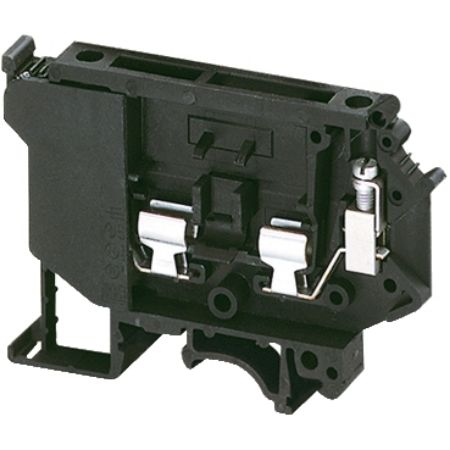

Picture of Linergy, Screw Terminal, Fused, for 5X20/25/30mm Fuse, with LED 12-30V, 2 PTS
SKU:

NSYTRV42SF5LD

Linergy, Screw Terminal, Fused, for 5X20/25/30mm Fuse, with LED 12-30V, 2 PTS

Old price: $14.19 INC GST
$12.77 INC GST
Available for Shipping : 24-Jul-2025
Linergy, Screw Terminal, Fused, for 5X20/25/30mm Fuse, with LED 12-30V, 2 PTS
  • It belongs to linergy fixed carrier terminal block with 4 mm² nominal cross section
  • Mounting by clip-on and sideways connection by single-level 1x1 screw terminals
  • Releasing pressure on the sides stops the flow of cable ends
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet
Linergy TR is terminal block for Linergy. It belongs to fuse disc terminal with 4 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 500V conforming to EN/IEC 60947-7-1. The rated current is 6.3A conforming to EN/IEC 60947-7-1, 6.3A conforming to CSA and 12A cURus. It has black surface treatment. Mounting by clip-on and sideways connection with 5x20mm fuse. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (CSA, cURus, EAC). It is compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 50
Terminal block level 1
Length 72.5 mm
Device short name TRV
Colour black
Mounting mode clip-on
Range Linergy
Range of product Linergy
Nominal cross section 4 mm²
Product name Linergy TR
Product or component type terminal block
Terminal block type fused disconnect
Complementary
Range compatibility TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Compatibility code terminal block
Wire stripping length 8 mm
Tool type disconnection: screwdriver, connection: screwdriver
Number of measurement input 0
Connection position sideways
Connections - terminals 1 x screw terminal: downstream, 1 x screw terminal: upstream
Height 56.5 mm
Fuse size 5 x 20 mm
[In] rated current 6.3-6.3 A CSA, 12-12 A cURus, 6.3-6.3 A conforming to EN/IEC 60947-7-1
Material polyamide 6/6: insulating case
Dielectric constant 3.7 at 1 MHz
Net weight 20 g
Provided equipment 12...30 V light indicator
Number of terminals 2
Product compatibility Spacial enclosures
Tightening torque 0.5-0.8 N.m
Surface resistance 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Resistivity 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Flame retardance V0, thickness0.8 mm conforming to UL 94
Dielectric loss 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
[Ue] rated operational voltage 600 V CSA, 600 V cURus, 500 V conforming to EN/IEC 60947-7-1
Creep resistance 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width 8.2 mm
Cable cross section 0.2-4 mm², solid, 0.2-4 mm², flexible without cable end
Environment
Product certifications cURus, CSA, EAC
Ambient air temperature for operation -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength 1000 V conforming to IEC 60243-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.000 cm
Package 1 Width 5.500 cm
Package 1 Length 7.300 cm
Package 1 Weight 18.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 6.500 cm
Package 2 Width 11.500 cm
Package 2 Length 31.000 cm
Package 2 Weight 988.000 g
Unit Type of Package 3 3
Number of Units in Package 3 400
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 8.400 kg
